I-Class Mark II Maintenance Manual

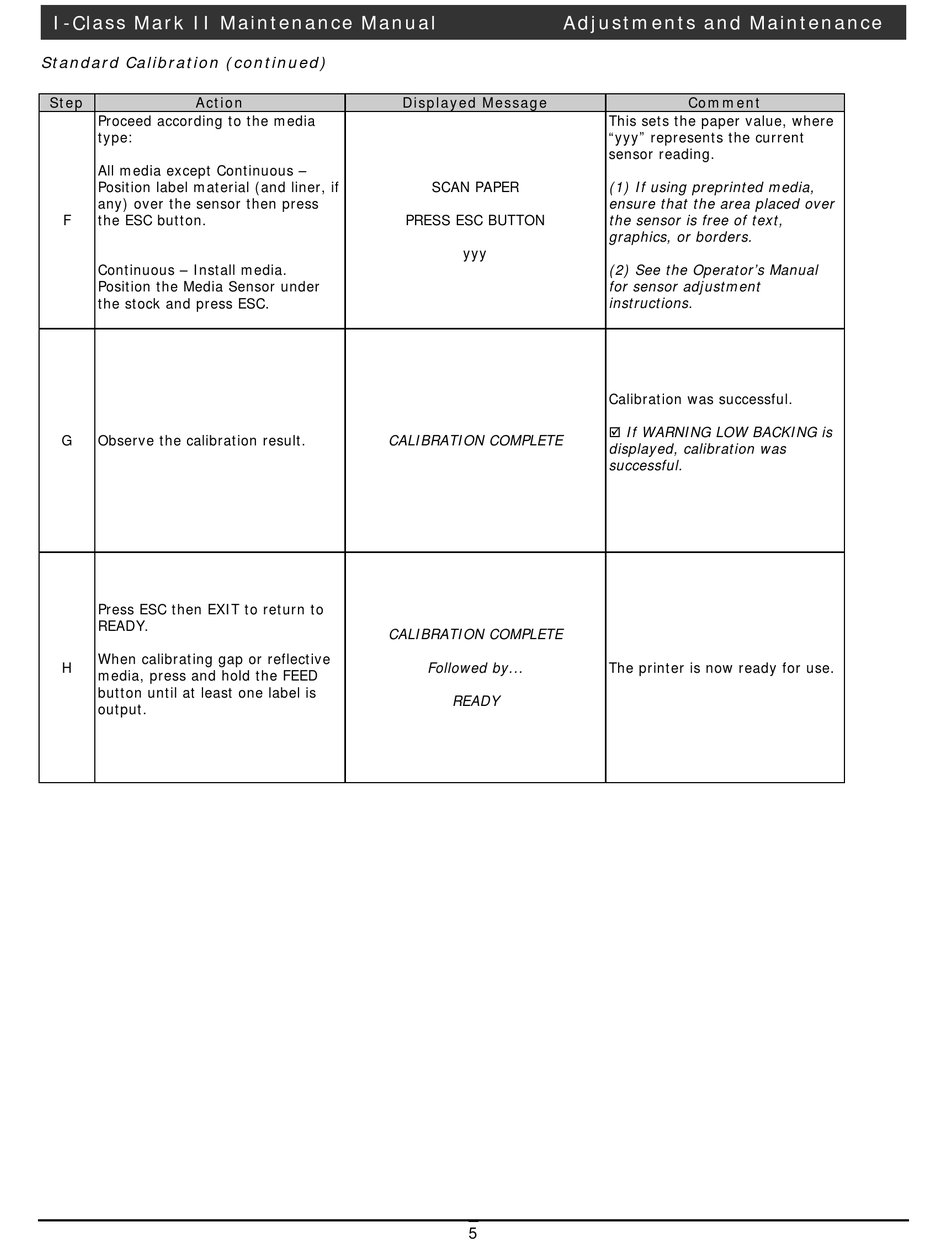

Standard Calibration (continued)
Step Action
Proceed according to the media
type:
All media except Continuous –
Position label material (and liner, if
any) over the sensor then press
F the ESC button.
Continuous – Install media.
Position the Media Sensor under
the stock and press ESC.
G Observe the calibration result.
Press ESC then EXIT to return to
READY.
When calibrating gap or reflective
H
media, press and hold the FEED
button until at least one label is
output.
Adjustments and Maintenance
Displayed Message
SCAN PAPER
PRESS ESC BUTTON
yyy
CALIBRATION COMPLETE
CALIBRATION COMPLETE
Followed by...
READY
5
Comment
This sets the paper value, where
"yyy" represents the current
sensor reading.
(1) If using preprinted media,
ensure that the area placed over
the sensor is free of text,
graphics, or borders.
(2) See the Operator's Manual
for sensor adjustment
instructions.
Calibration was successful.
 If WARNING LOW BACKING is
displayed, calibration was
successful.
The printer is now ready for use.
