I-Class Mark II Maintenance Manual
Removal and Replacement

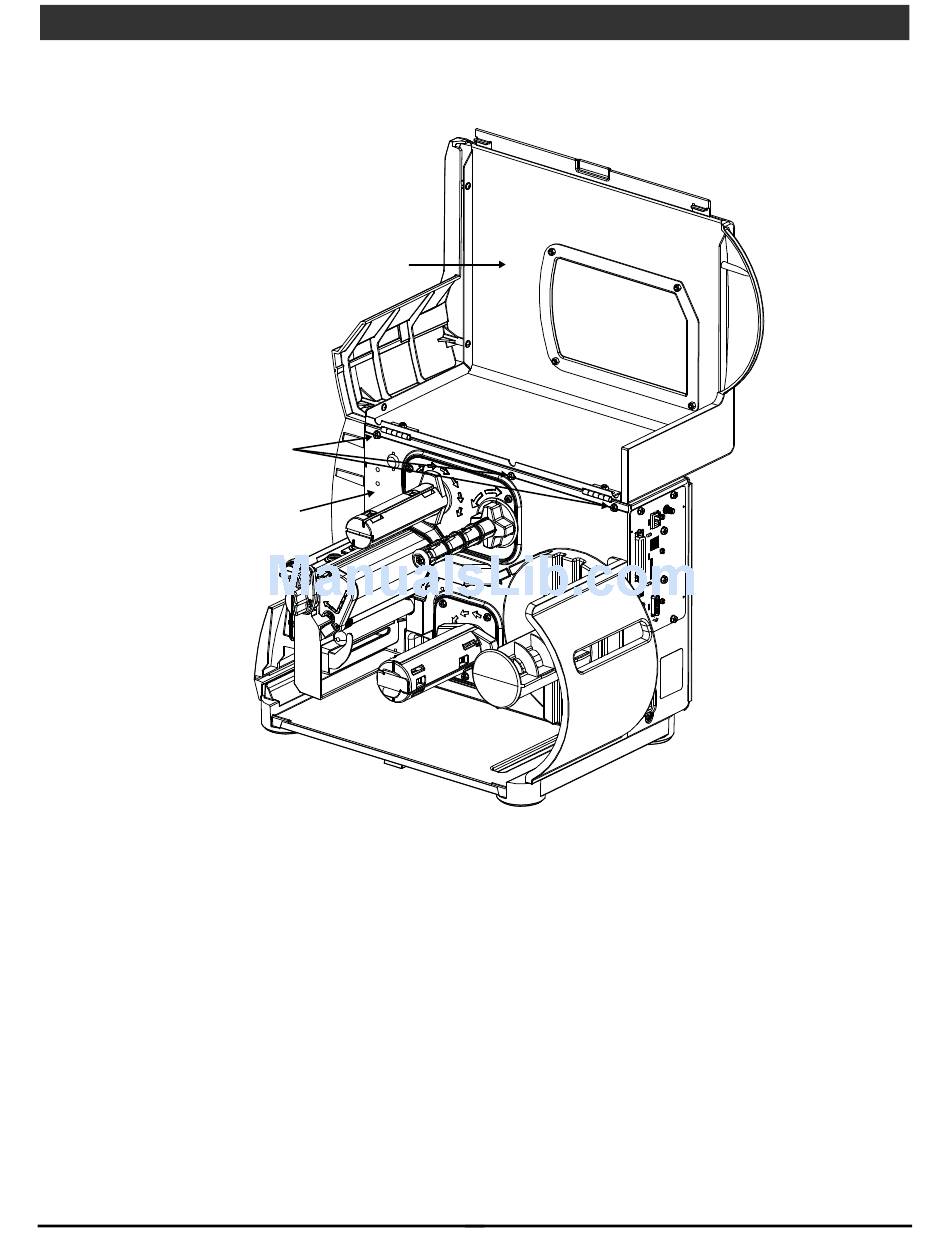

3. Raise the Cover Assembly and loosen the three Screws that secure it to the Centerplate, and then lift the
entire Cover Assembly off the printer.
Cover Assembly
Screws
Centerplate
Replacement:
1. Lower the Cover Assembly onto the printer.
2. Reinstall the three Screws through the Cover Assembly and into the Baseplate.
3. Tighten the three Screws along the inside of the cover.
