I-Class Mark II Maintenance Manual
Replacement:

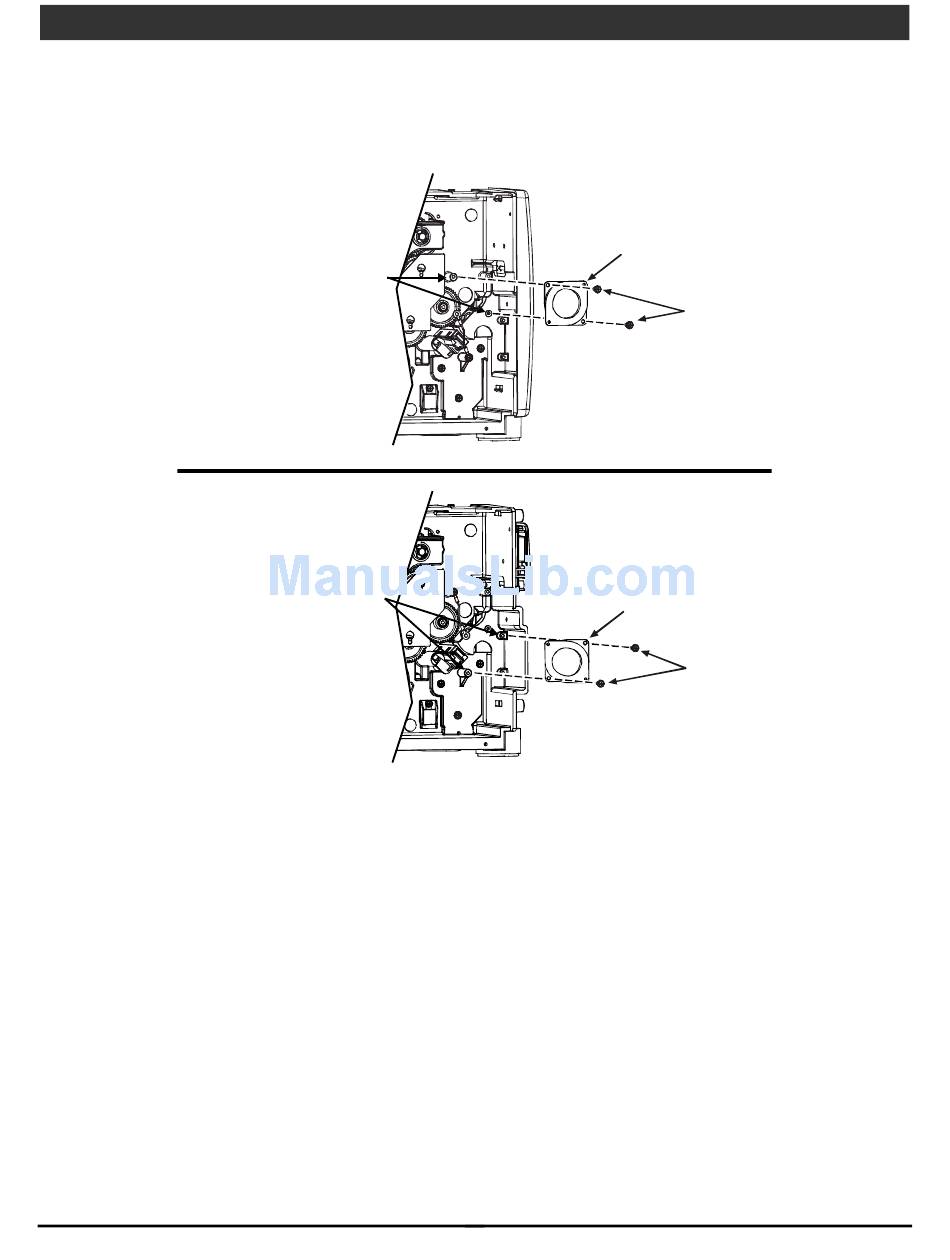

1. Depending upon the resolution of the printer, position the Isolator against the Centerplate Standoffs then
secure it with the two Screws.
Centerplate Standoffs
Centerplate Standoffs
(300 / 600 DPI)
2. Position the Drive Motor against the Isolator.
3. Place the Ground Cable Lug onto one Screw then secure the Drive Motor to the Isolator with the two
Screws.
4. Reconnect the motor cable to the Drive Motor.
5. Reinstall the Cover Assembly; see Section 4.1.
(203 DPI)
Removal and Replacement
Isolator
Isolator
63
Screws
Screws
