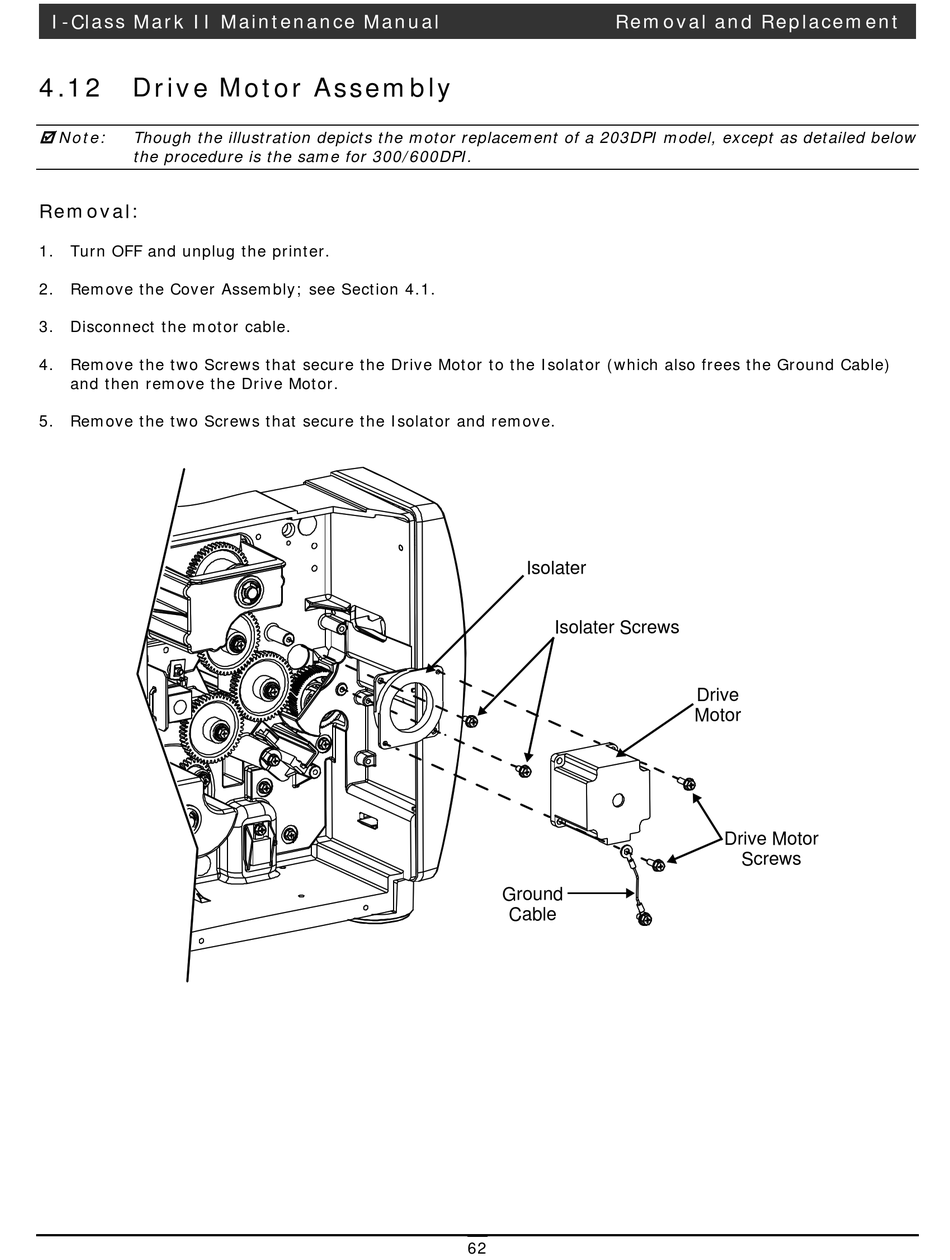

I-Class Mark II Maintenance Manual
4.12
Drive Motor Assembly
Note:
Though the illustration depicts the motor replacement of a 203DPI model, except as detailed below
the procedure is the same for 300/600DPI.
Removal:
1. Turn OFF and unplug the printer.
2. Remove the Cover Assembly; see Section 4.1.
3. Disconnect the motor cable.
4. Remove the two Screws that secure the Drive Motor to the Isolator (which also frees the Ground Cable)
and then remove the Drive Motor.
5. Remove the two Screws that secure the Isolator and remove.
Removal and Replacement
Isolater
Isolater Screws
Ground
Cable
62
Drive
Motor
Drive Motor
Screws
