I-Class Mark II Maintenance Manual
4.7
Printhead Assembly
Removal:
1. Turn OFF and unplug the printer.
2. Remove the Printhead; see Section 4.4.
3. Remove the two Screws that secure the End Cap to the Extrusion.

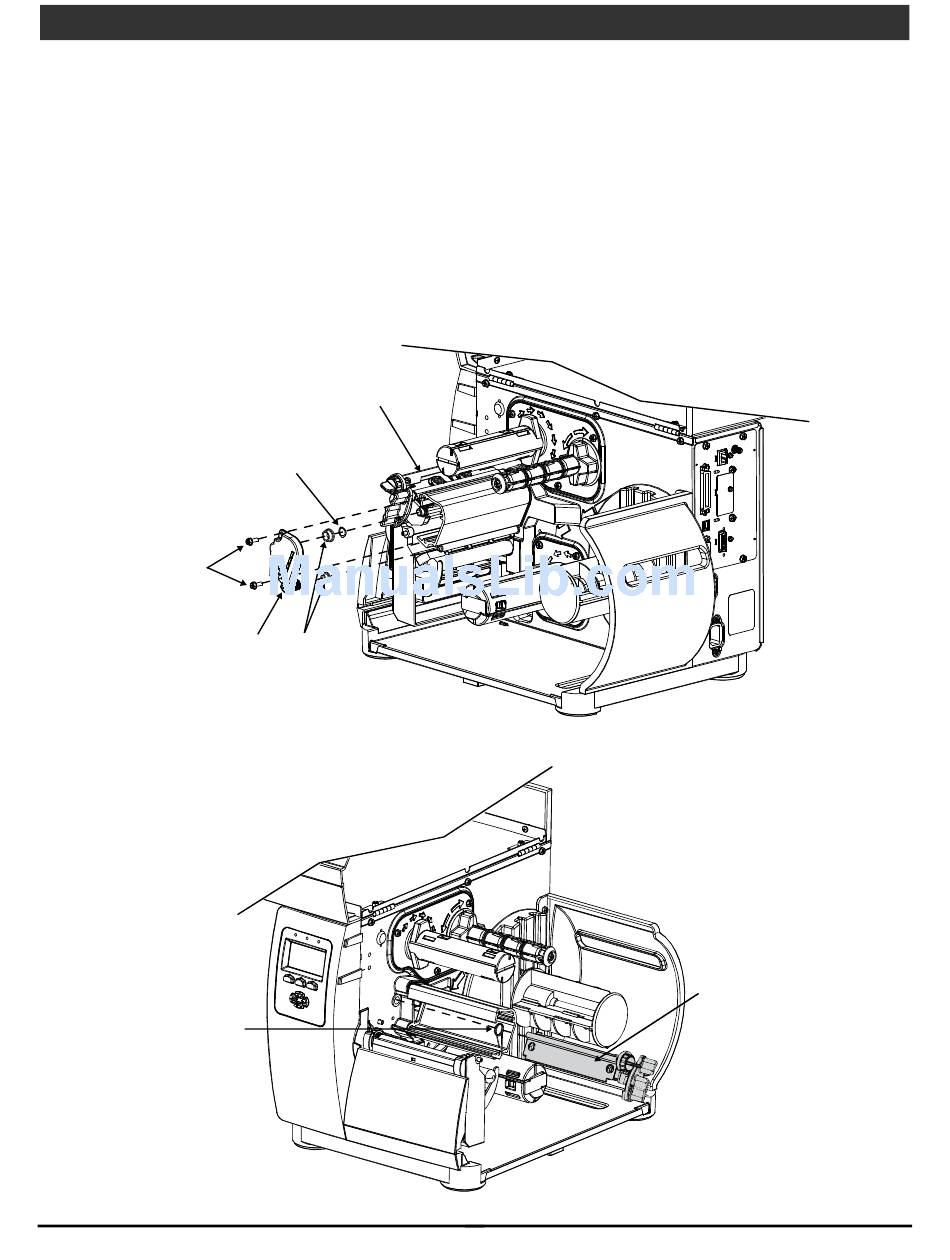

4. While supporting the Printhead Assembly, remove the End Cap, Wavy Washer, and Bushings, (note
Bushings may remain captive in the End Cap.
Wavy Washer
Screws
End Cap
5. Remove the Printhead Assembly and the Head Lift Spring.
Head Lift
Spring
Printhead
Assembly
Bushings
Removal and Replacement
52
Printhead
Assembly
