I-Class Mark II Maintenance Manual
Removal and Replacement
4.2
Front Panel Fascia
Removal:
1. Turn OFF and unplug the printer.
2. Remove the Cover Assembly (see Section 4.1).

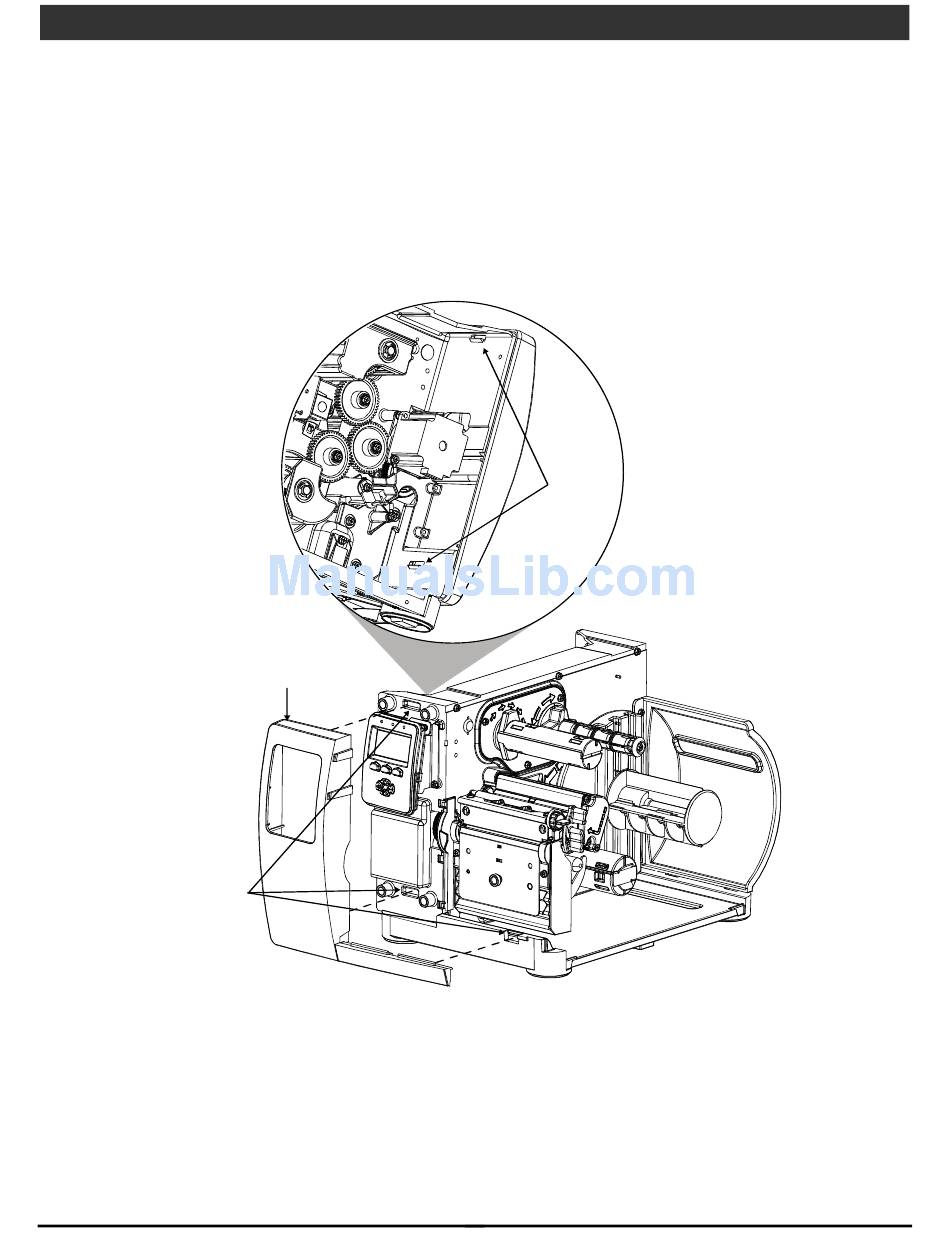

3. Slightly flex the Tabs that extend through notches in the Centerplate and then remove the Front Panel
Fascia.
Tabs
Front Panel
Fascia
Notches
Replacement:
1. Align the Tabs of the Front Panel to the Centerplate Notches.
2. Press firmly until the Tabs of the Front Panel lock into place.
3. Reinstall the Cover Assembly (see Section 4.1).
45
