I-Class Mark II Maintenance Manual
4.15
Rewind Assembly
Removal:
1. Turn OFF and unplug the printer. Raise the cover.

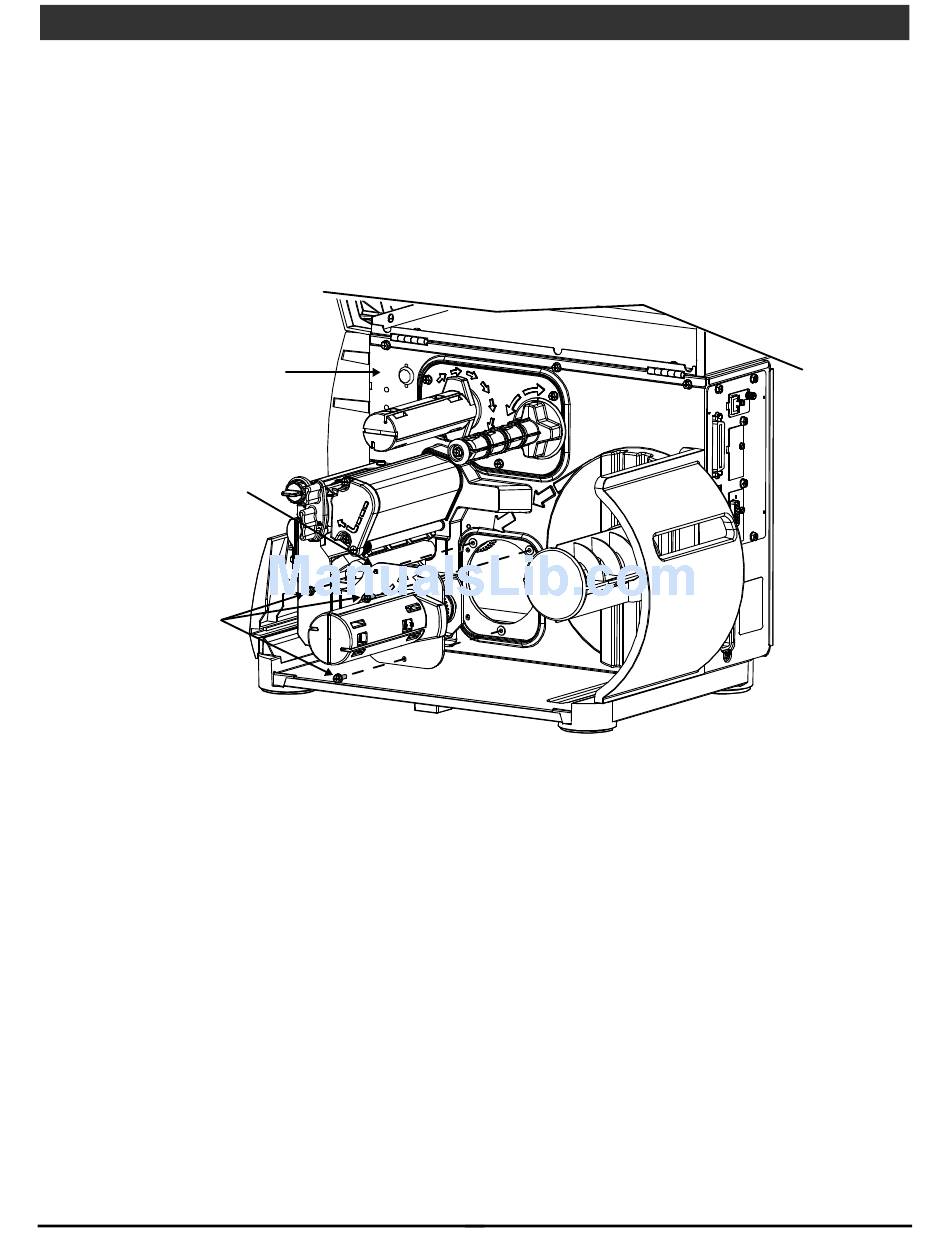

2. Remove the three Screws that secure the Rewind Assembly to the Centerplate then remove the Rewind
Assembly.
Centerplate
Rewind
Assembly
Screws
Replacement:
1. Reinstall the Rewind Assembly in the Centerplate, carefully engaging the gears, and secure it using the
three Screws.
Removal and Replacement
69
