I-Class Mark II Maintenance Manual
4.5
Platen Block
Removal:
1. Turn OFF and unplug the printer.
2. Remove the Cover and Platen; see Section 4.1 & 4.4

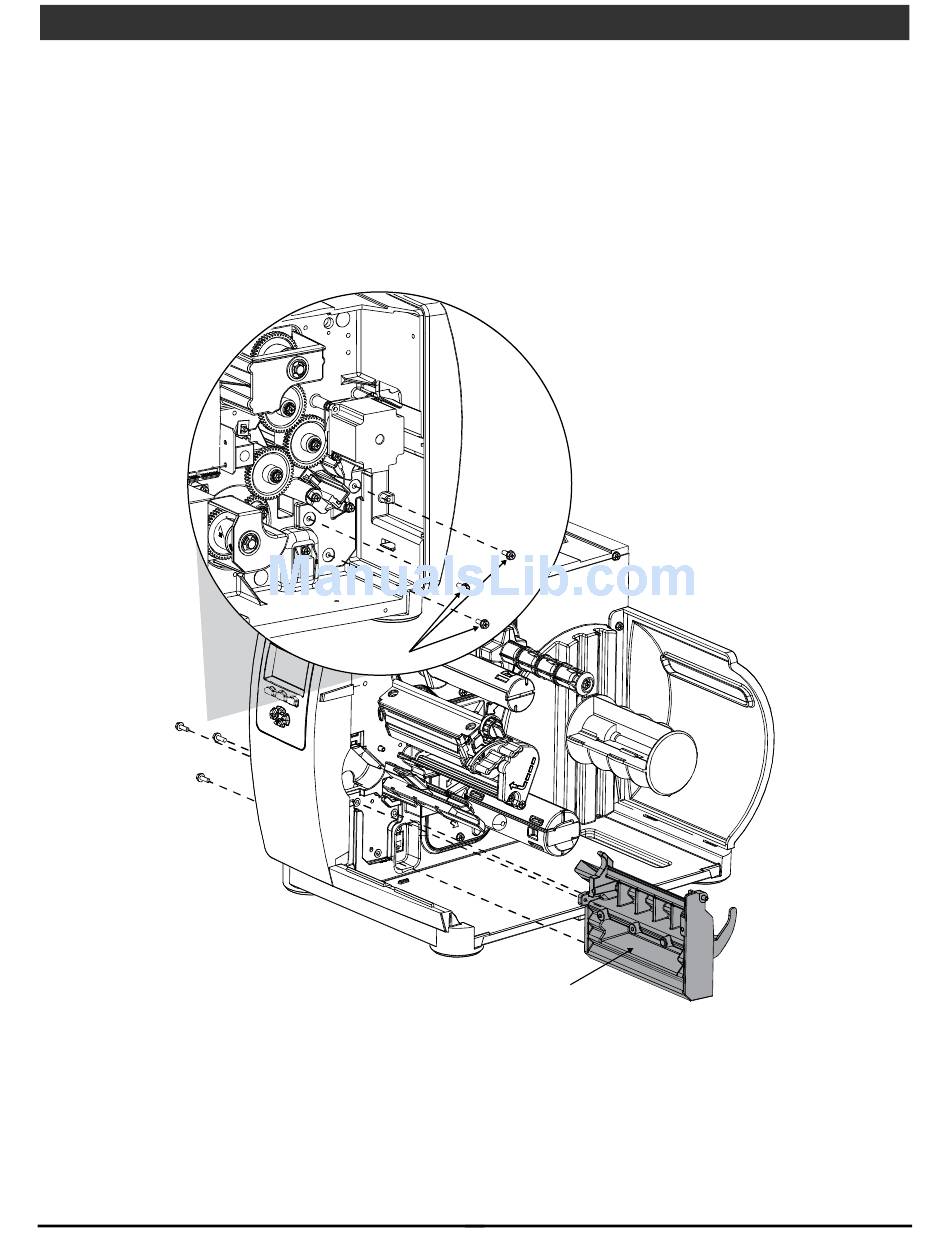

3. Remove the three Screws securing the Platen Block to the Centerplate. Slide the Platen Block out of the
printer.
Replacement:
1.
Position the Platen Block in the printer against the Centerplate.
2.
Install the three Screws to secure the Platen Block to the Centerplate.
3.
Install the Platen and Cover; see Section 4.4 & 4.1.
Screws
Platen
Block
49
Removal and Replacement
