I-Class Mark II Maintenance Manual
4.14
Thermal Transfer Assembly
Removal:
1. Turn OFF and unplug the printer. Raise the cover.
2. Remove the three Screws that secure the Thermal Transfer Assembly and then remove the assembly from
the Centerplate.
Replacement:
1. Reinstall the Thermal Transfer Assembly in the Centerplate, carefully engaging the gears, and secure it
using the three Screws.

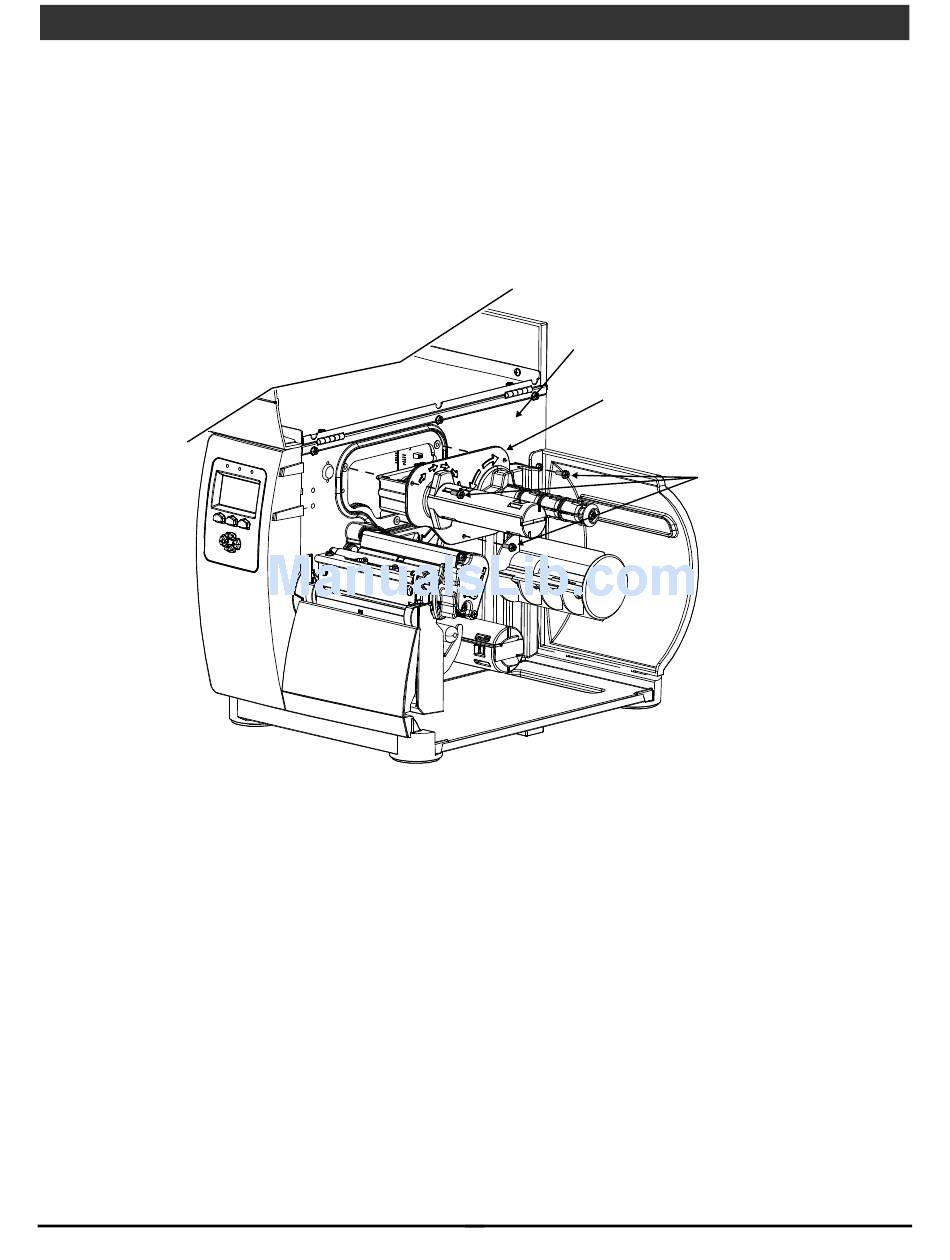

Removal and Replacement
Centerplate
Thermal Transfer
Assembly
65
Screws
