Replacement:
1. Carefully reconnect both cables to the Printhead.
2. Position the Printhead onto the Locating Pins in the Printhead Assembly.

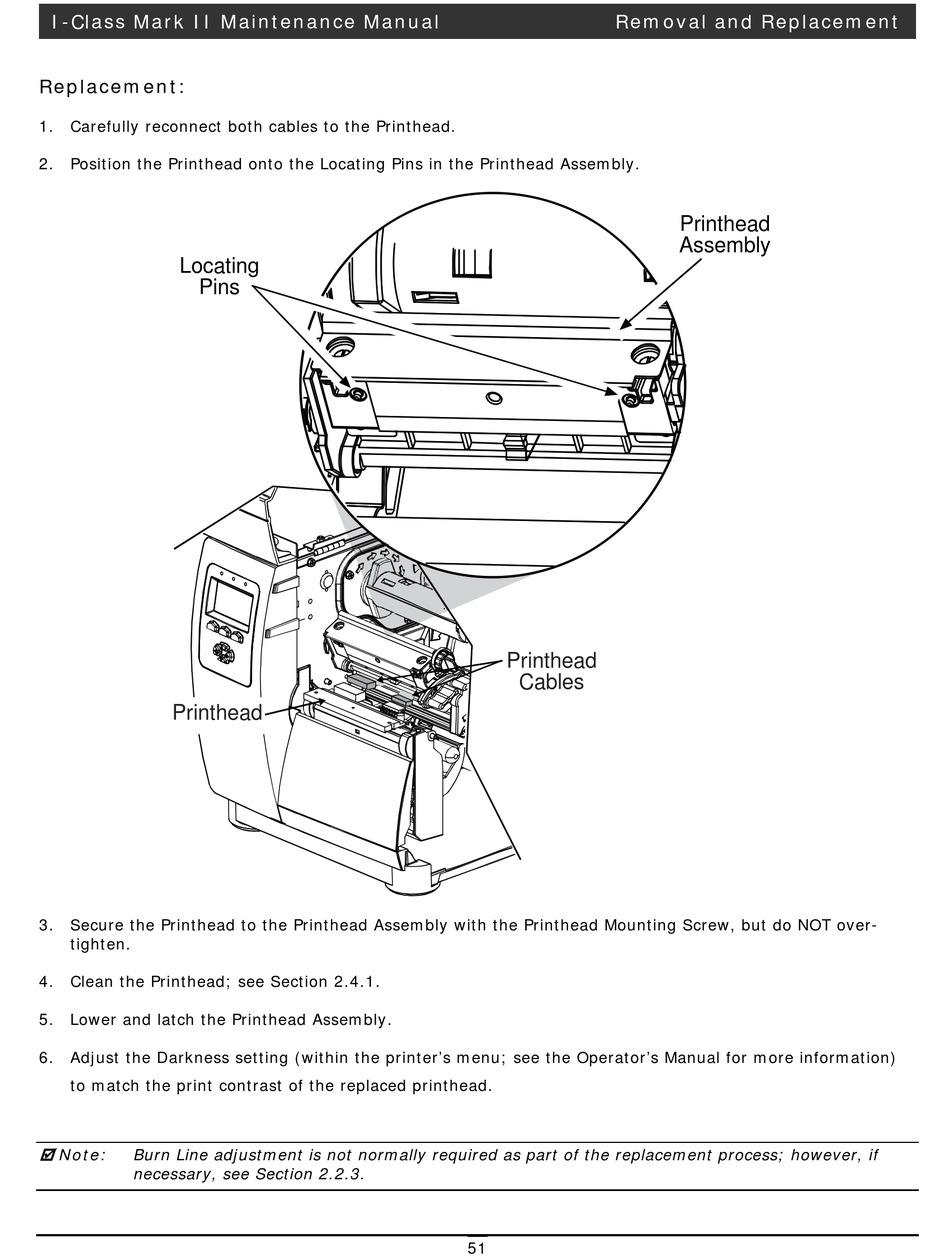

Locating
Pins
Printhead
3. Secure the Printhead to the Printhead Assembly with the Printhead Mounting Screw, but do NOT over-
tighten.
4. Clean the Printhead; see Section 2.4.1.
5. Lower and latch the Printhead Assembly.
6. Adjust the Darkness setting (within the printer's menu; see the Operator's Manual for more information)
to match the print contrast of the replaced printhead.
Note:
Burn Line adjustment is not normally required as part of the replacement process; however, if
necessary, see Section 2.2.3.
Removal and Replacement
Printhead
Cables
51
Printhead
Assembly
