Static Virtual LANs (VLANs)
Port-Based Virtual LANs (Static VLANs)
Figure 2-5. Comparing Per-Port VLAN Options With and Without GVRP
2-8

Per-Port Static VLAN Configuration Options

The following figure and table show the options you have for assigning
individual ports to a static VLAN. Note that GVRP, if configured, affects these
options and VLAN behavior on the switch. The display below shows the per-
port VLAN configuration options. Table 2-1 briefly describes these options.

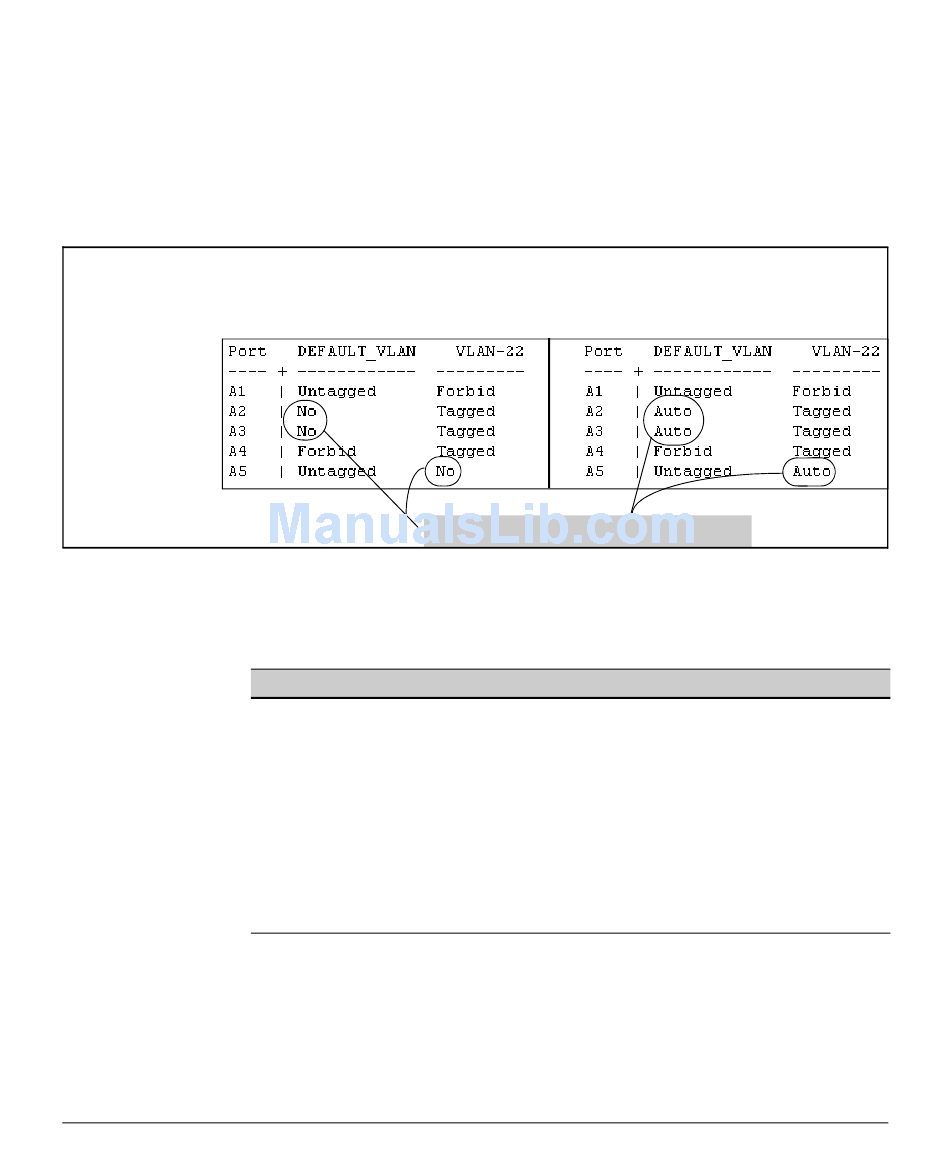

Example of Per-Port
VLAN Configuration
with GVRP Disabled
(the default)
Table 2-1. Per-Port VLAN Configuration Options
Parameter
Effect on Port Participation in Designated VLAN
Tagged
Allows the port to join multiple VLANs.
Untagged
Allows VLAN connection to a device that is configured for an untagged
VLAN instead of a tagged VLAN. The switch allows no more than one
untagged VLAN assignment per port.
No
No
: Appears when the switch is not GVRP-enabled; prevents the port from
- or -
joining that VLAN.
Auto
Auto
: Appears when GVRP is enabled on the switch; allows the port to
dynamically join any advertised VLAN that has the same VID
Forbid
Prevents the port from joining the VLAN, regardless of whether GVRP is
enabled on the switch.
Enabling GVRP causes "No" to display as "Auto".
Example of Per-Port
VLAN Configuration
with GVRP Enabled
