5.5 Removing a Jammed Document

If a document becomes jammed in the scanner during a scanner operation, follow one of
the procedures given below to remove the jammed document. Select the procedure that
is appropriate for your scanner model and/or document thickness.
CS600 (thin document up to 1.5 mm thick)/CS500/IS200
(1) Turn off the scanner.
(2) Open the top cover as described in Section 5.1 "Opening and Closing the Top Cover".

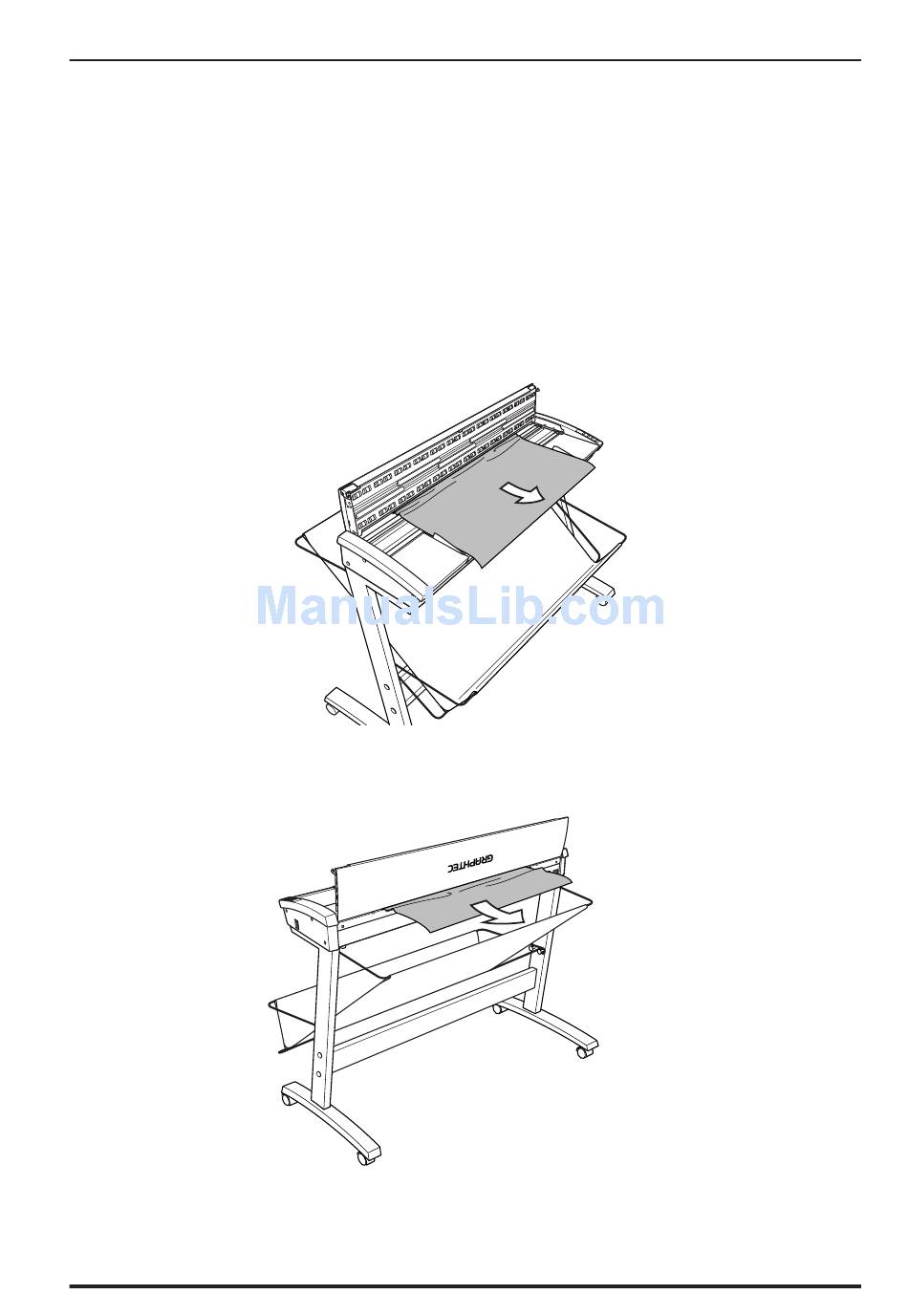

(3) If the document is jammed at the front, remove the document from the inside or by
pulling it forward.
The above illustration is of the
(4) If the document is jammed at the rear, remove the document from the inside by pulling
it toward the rear.
(5) Close the top cover as described in Section 5.1 "Opening and Closing the Top Cover".
Take care not to get your fingers caught in the cover.
CS600/CS500/IS200
CS600-11/CS500-11
The above illustration is of
the
CS600-11/CS500-11
5. DAILY MAINTENANCE
model.
model.
5 – 5
