2. PREPARATION

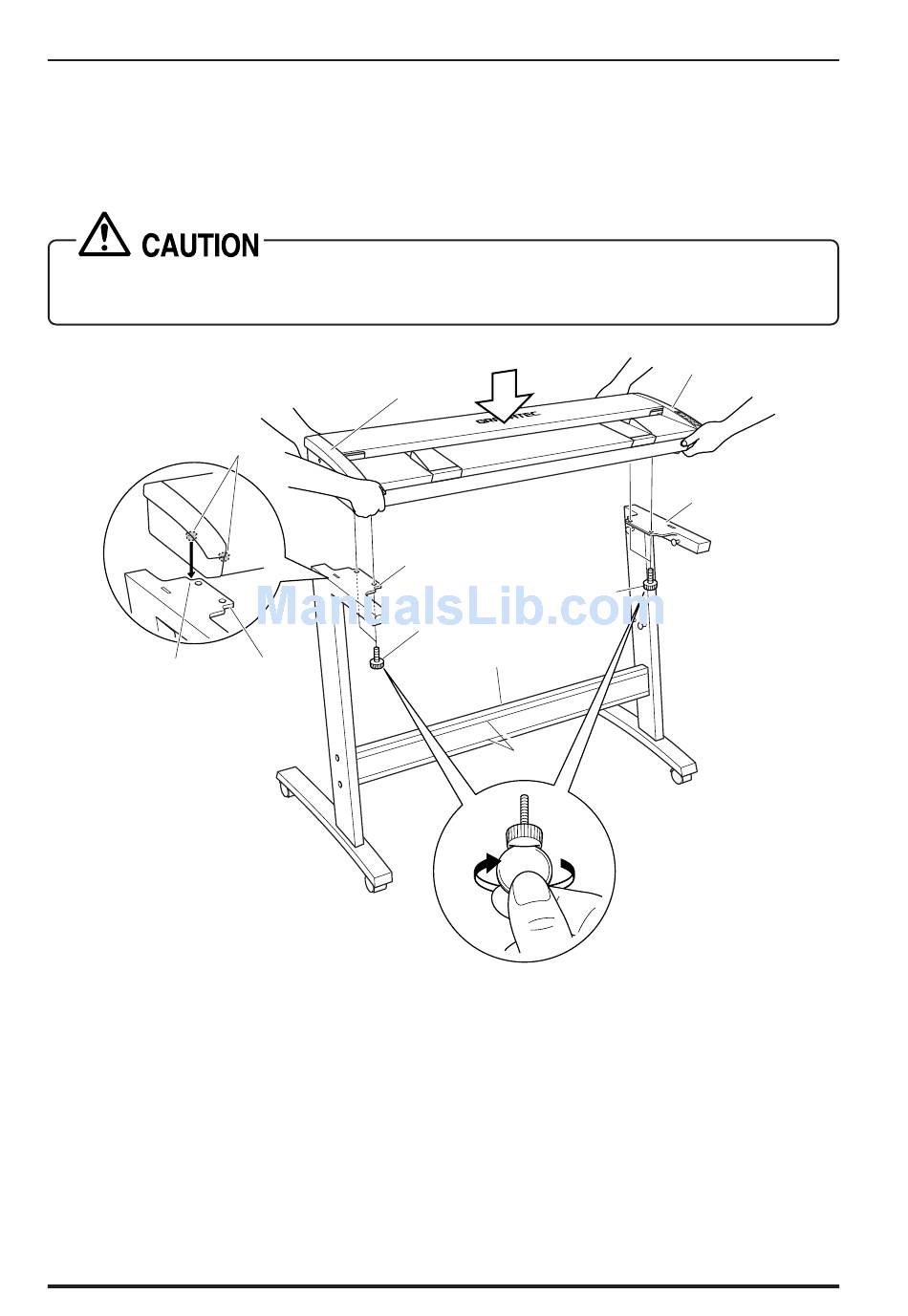

(3) Hold the scanner unit by the underside at both sides as you adjust its position untilthe
rubber feet on the underside of the scanner unit are aligned with the notches inthe
side stays. Place the scanner unit on the stand so that the grooves in the center bar
are facing the front, and then secure it in place using the four coin screws provided.
Holding the scanner by the rear part of the top cover may cause damage to the scanner
or injury to the persons doing the installation. Always hold the scanner by the underside.
Rubber feet
Notch
(4) Secure the side stays in place by tightening up the four center bar fixing screws (see
(2) above).
2 – 2
Side cover
Fixing plate
Fixing plate
Coin screw
Coin screw
Center bar
Groove
Side cover
Fixing plate
CS600/CS500/IS200
