2.2 Part Names and Functions

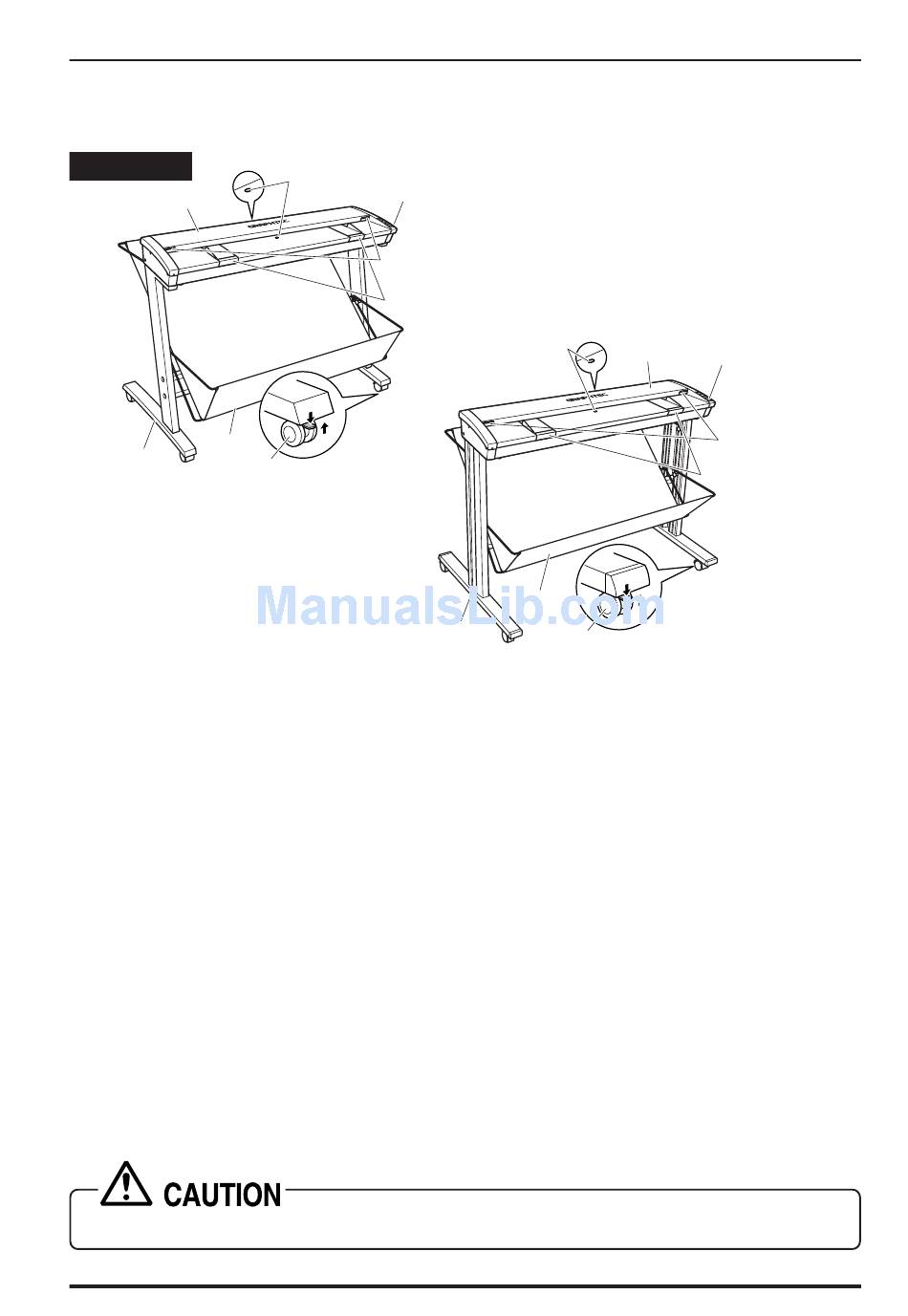

Front View
Top cover
Basket
Stand
Caster
CS600-11/ICS500-11
Top cover
Open the top cover to clean the document hold-down unit and transparent contact plates.
Paper sensors
These sense whether a document is present in the scanner.
Cover sensor
This senses whether the top cover is open or closed, and interrupts scanner operation if
the top cover is opened during operation.
Document guides
Use these guides to determine the position of a document when you load the document.
Control panel
Use the keys to operate the scanner and the LEDs to monitor the operating status.
Stand
The stand unit is assembled for mounting of the scanner unit.
Basket
Receives the document that has been scanned.
Casters
Release the lock on the casters to allow the unit to be moved.
Do not touch the paper sensors.
CS600/CS500/IS200
Paper sensor
Control panel
Cover sensor
Document guides
Lock
Release Release
Stand
CS500-06/IS200-11
(The stand is an option for the CS500-06 models.)
Paper sensor
Top cover
Lock
Basket
Release Release
Caster
2. PREPARATION
Control panel
Cover sensor
Document guides
2 – 7
