5. DAILY MAINTENANCE
Calibration Adjustment
Before beginning calibration, clean the transparent contact plates and scanner table surface.
Any dust or dirt on this surface may affect calibration results and resulting image quality.
Check that the calibration sheet is free of any dust or dirt.
The calibration adjustment will take some time. Do not switch off the scanner while
calibration is underway. Accidentally switching off the scanner may result in damage
that requires servicing.

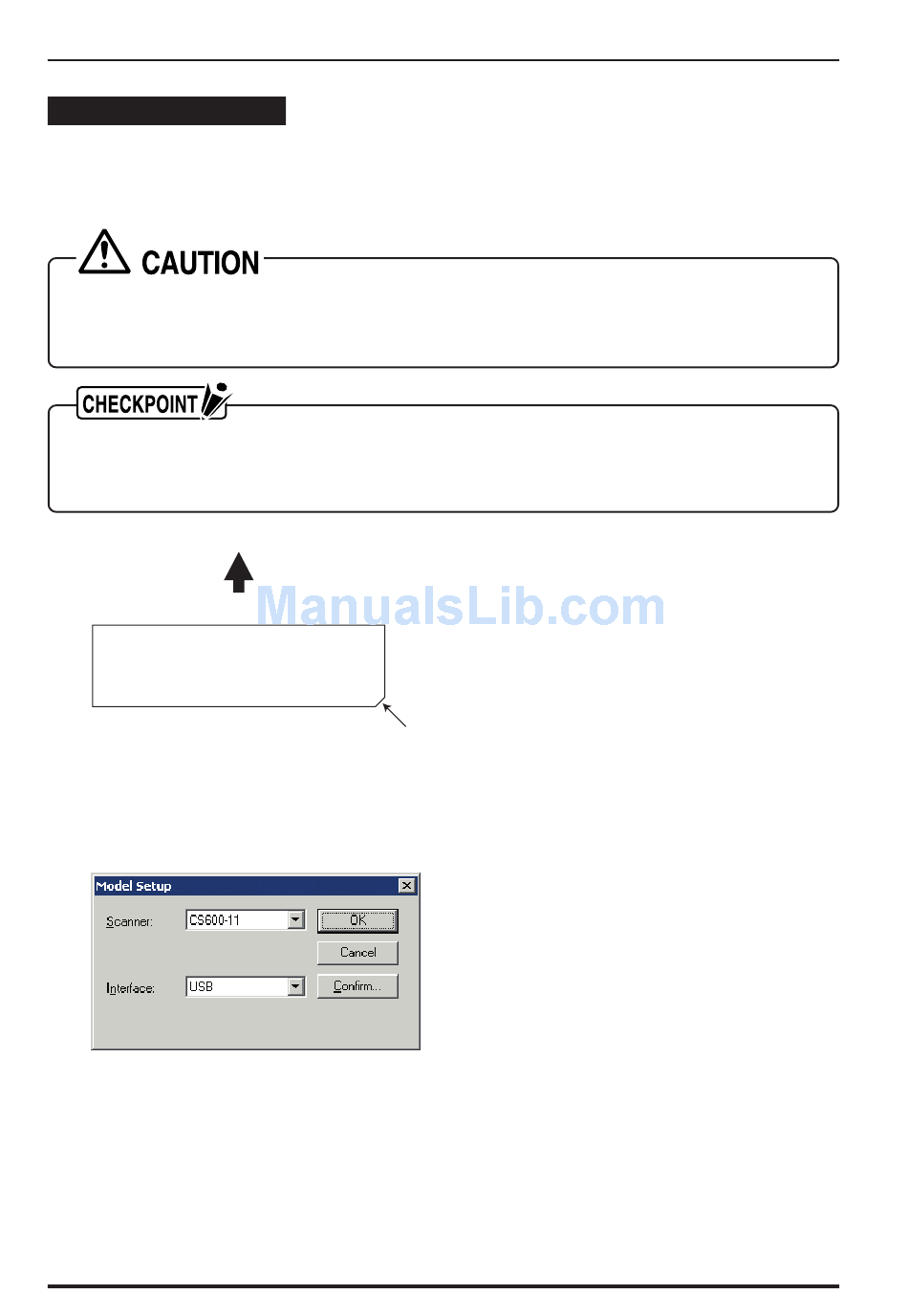

A prompt instructing you to insert the calibration sheet in the scanner will be displayed
in Step 7. At that time, insert the calibration sheet as instructed, with the notch at
the bottom right, as shown in the diagram below.
Scanner
Insertion direction

Calibration sheet

(1) Connect the scanner to the computer. Switch on the scanner, then switch on the PC.
(2) Launch the Scanner Adjustment program (as described earlier).
(3) Select Model Setup on the Scanner menu.
(4) Select the connected scanner and click the
5 – 8
Notch
[OK] button.
