2. PREPARATION

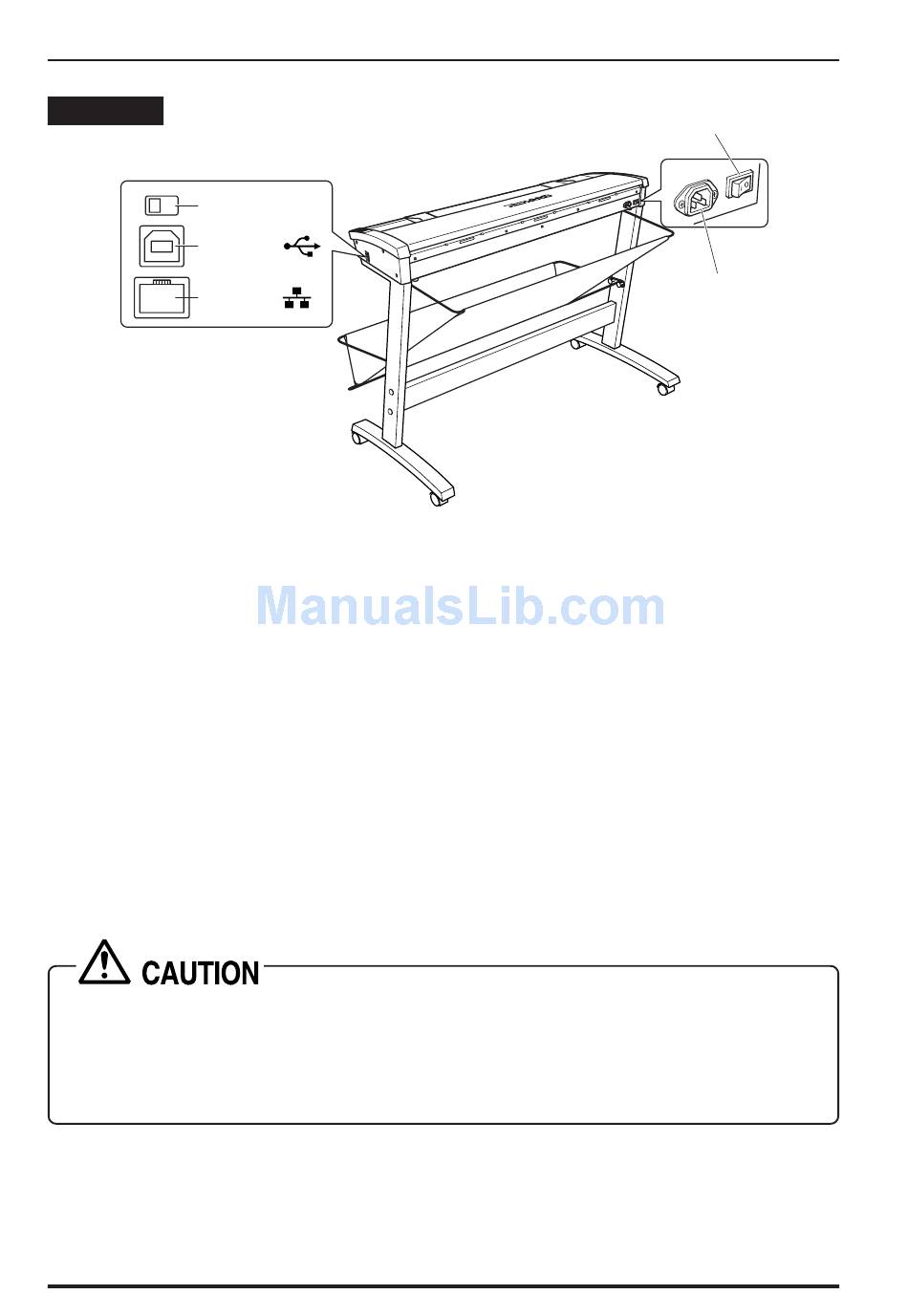

Rear View
Interface
selection switch
USB
connector
Ethernet
connector
The above illustration is of the CS600-11/CS500-11 model.
Power switch
Controls the on/off status of the power supply to the scanner.
AC line inlet
Connect the power cord's female plug here.
Interface selection switch
Used to switch between USB and Ethernet (LAN) connection.
This switch is set to USB connection at the time of shipment.
USB connector
Used to connect the USB interface cable.
Ethernet connector*
Used to connect the Ethernet cable.
*: Please do not connect with an Ethernet connector other than an Ethernet cable.
• Make sure that the scanner's power supply is turned off before using the interface
selection switch to select an interface.
• The USB and Ethernet connectors cannot be used at the same time. Do not connect
both the USB and Ethernet cables to a computer, or to two separate computers, at
the same time.
2 – 8
Power switch
AC line inlet
