5. DAILY MAINTENANCE

5.5 Removing a Jammed Document

If a document becomes jammed in the scanner during scanning or another operation,
immediately turn off the scanner, remove the document hold-down unit, and then remove
the jammed document.
Procedure
(1) Turn off the scanner.
(2) Open the top cover as described in Section 5.1 "Opening and Closing the Top Cover".

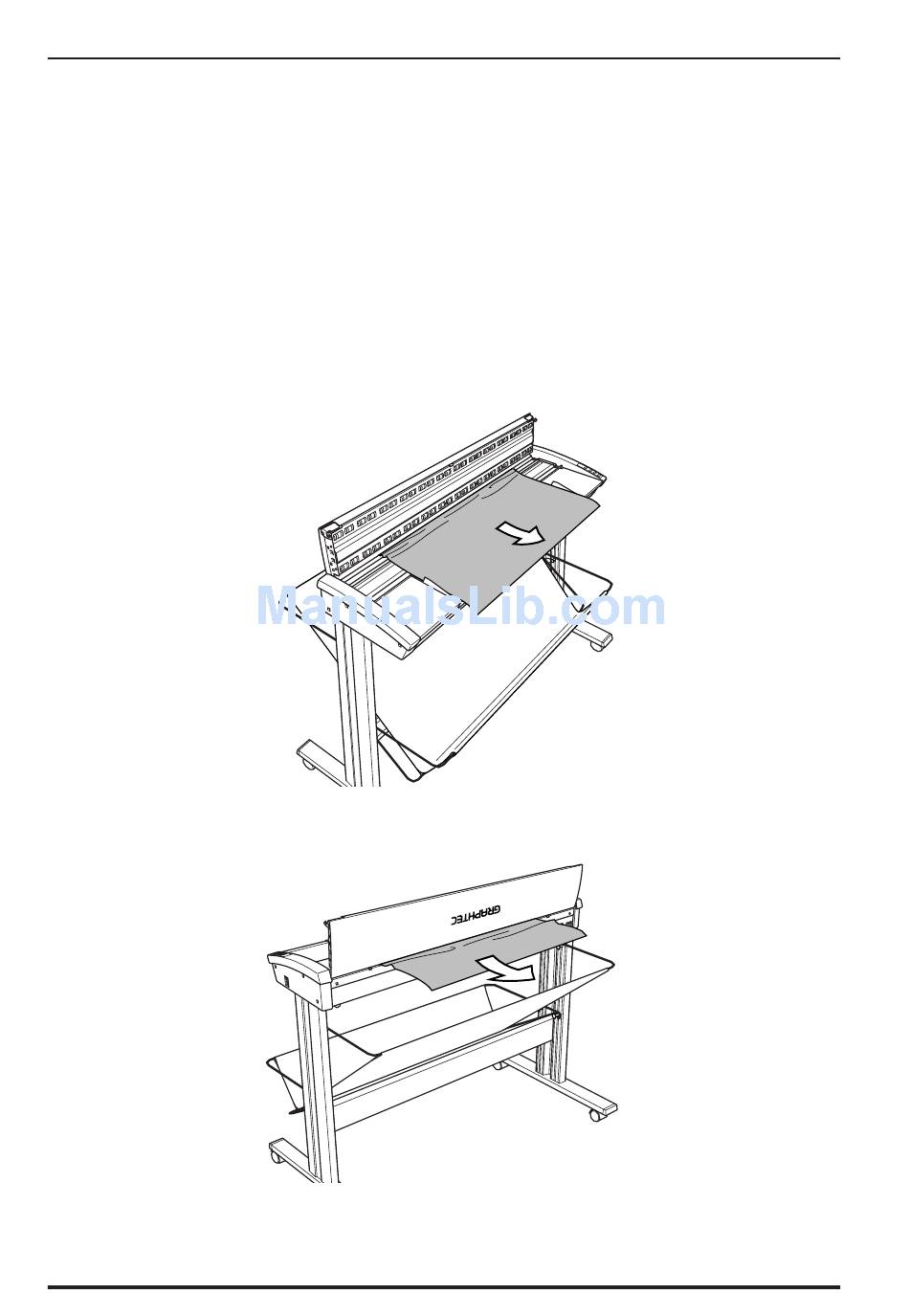

(3) If the document is jammed at the front, remove the document from the inside or by
pulling it forward.
(4) If the document is jammed at the rear, remove the document from the inside by pulling
it toward the rear.
(5) Close the top cover as described in Section 5.1 "Opening and Closing the Top Cover".
Take care not to get your fingers caught in the cover.
5 – 6 CS400/300
