5. DAILY MAINTENANCE
(4) Click the [OK] button to start scanning.
The scanned data is displayed when scanning is complete. Colors may differ slightly
for individual sensors, but this does not indicate a defect.
(5) When the data is displayed, click the

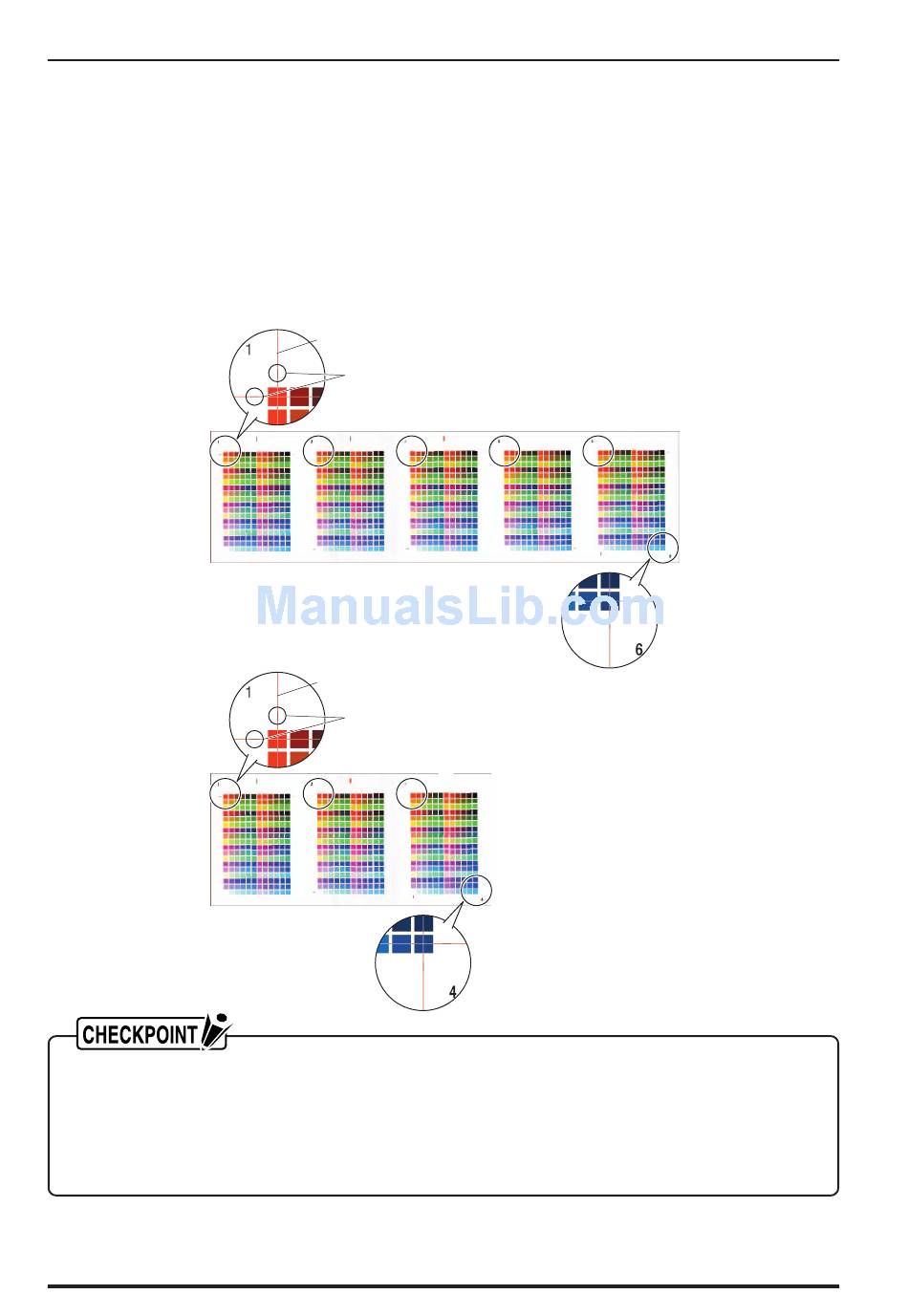

(6) Click in the center of the color tile indicated by the numbers 1 to 6 (1 to 4 in the case
of the CS500-06 model). Align the cursor crosshairs with the printed lines at the sides
of the tile.
CS600-11/CS500-11/IS200-11eN-PRO models
CS500-06 model
• The next reference point to be checked is displayed on the Status bar.
• If you click in error, click the Esc. key to cancel the operation and return to the immediately
previous step.
• If you click on the wrong tile, color correction will not be performed correctly and the
colors of the image displayed after color correction will be incorrect.
5 – 12
Cursor lines (red)
Align with the printed lines, then click.
1 1 2 2
Cursor lines (red)
Align with the printed lines, then click.
1 1 2 2
Get button.
3 3 4 4
3 3
4 4
5 5
6 6
