2. PREPARATION

2.2 Part Names and Functions

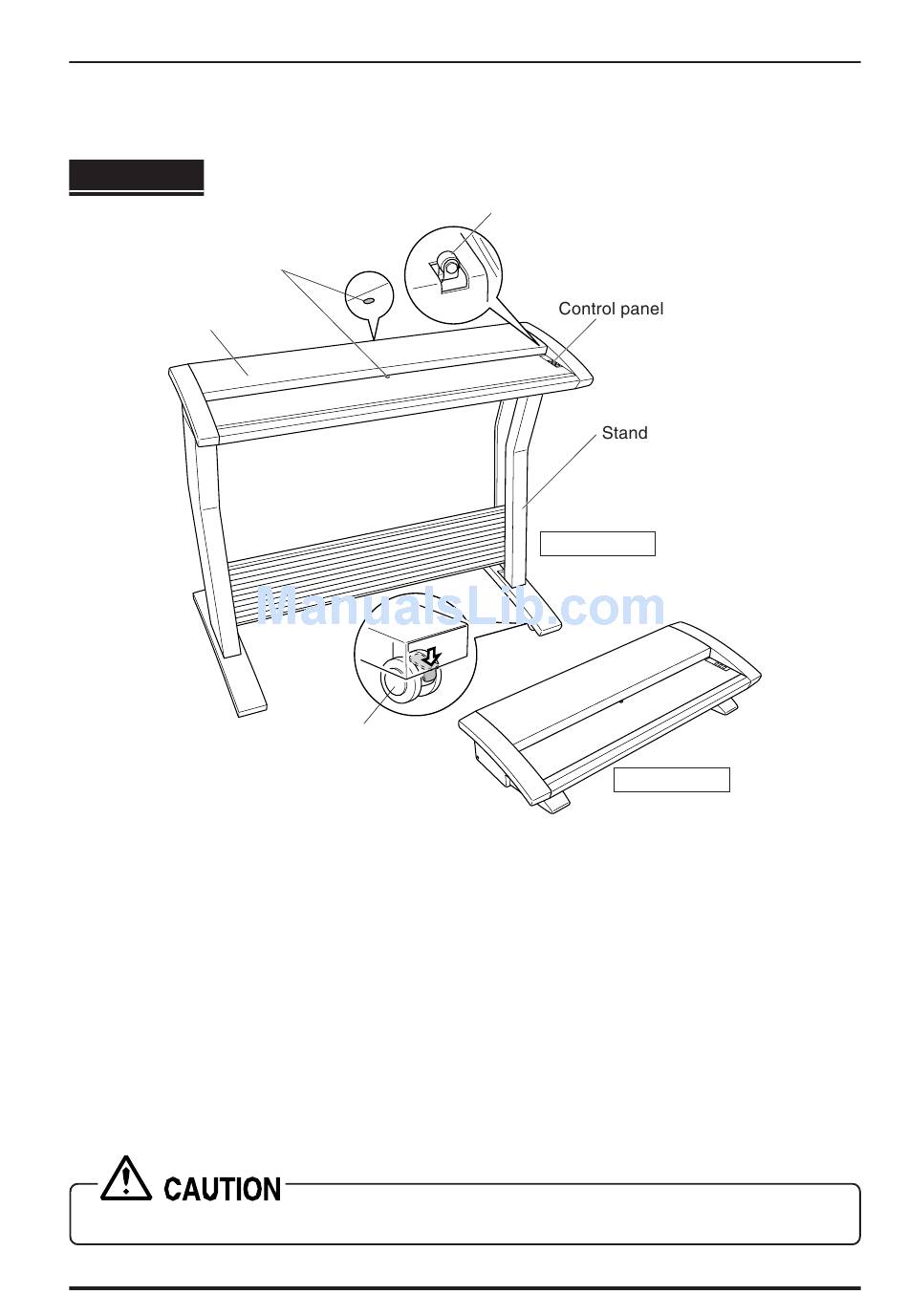

Front View
Cover sensor
Paper sensor
Top cover
CS1000EV
Caster
CS1100EV
Top cover
Opening the top cover allows the document hold-down unit to be removed.
Cover sensor
This senses whether the top cover is open or closed, and interrupts scanner operation if
the top cover is opened during operation.
Stand
The stand unit is assembled for mounting of the scanner unit.
Casters
Release the lock on the casters to allow the unit to be moved.
Paper sensor
This senses whether a document is present in the scanner.
Do not touch the cover sensor or paper sensor.
CS1000EV/1100EV 2 – 3
