2. PART NAMES AND FUNCTIONS

2.1 Part Names and Functions

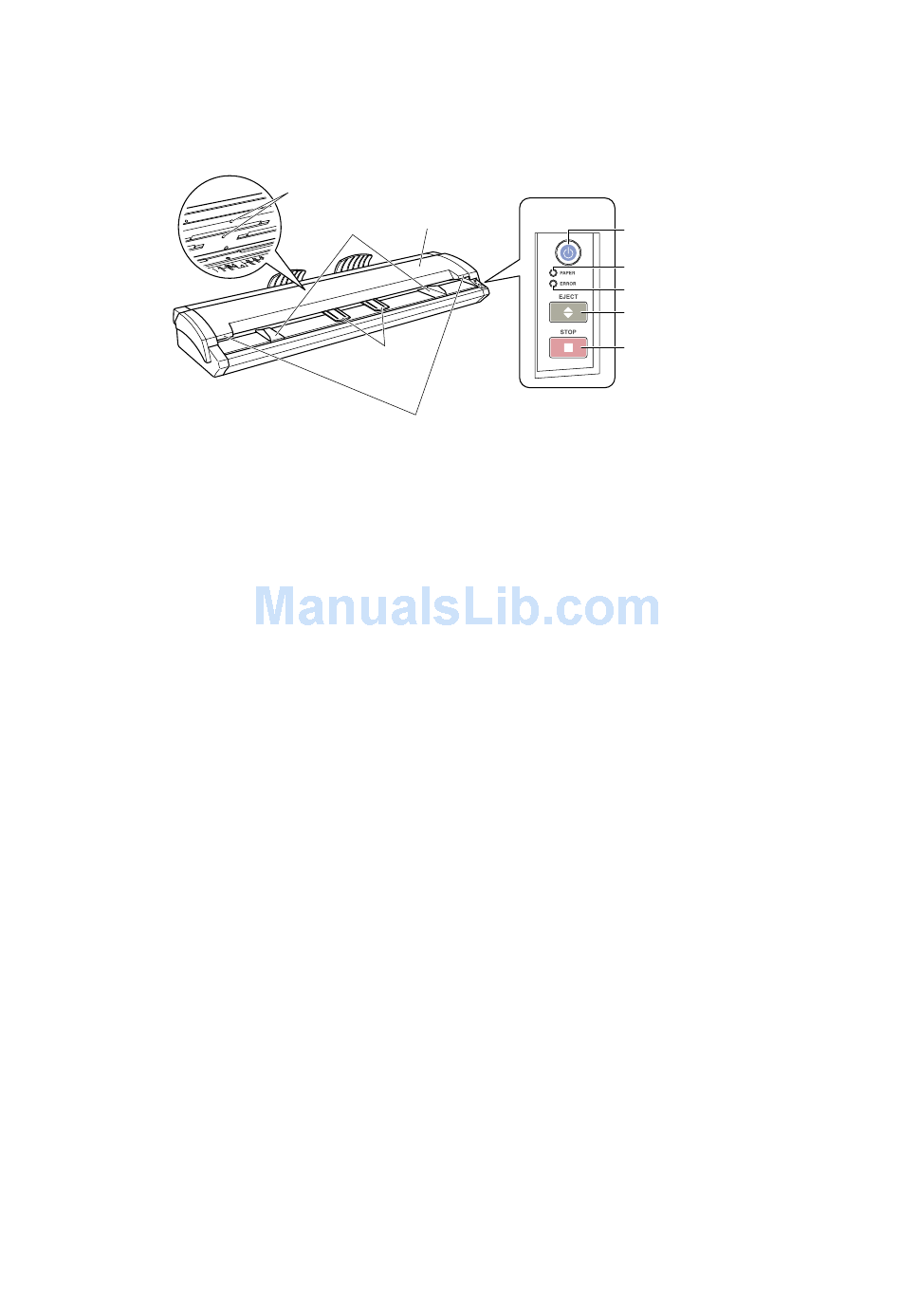

Front View/Control Panel
Top cover
(1) Top cover ..............................Open the top cover to clean the document hold-down unit and contact glass
(2) Media sensors ......................These sense whether a document is present in the scanner.
(3) Top cover open levers ..........Press these levers to open the top cover.
(4) Document guides .................Use these guides to determine the position of a document when you load the
(5) Anti-curling guides ................These guides prevent the document from being caught up in the scanner
Control Panel
(6) Power button ........................Controls the on/off status of the power supply to the scanner.
(7) POWER LED (blue) .............Unlit: The scanner is turned off.
(8) PAPER LED (green) .............Unlit: Normal status (Local status).
(9) ERROR LED (red) ................Lit: Lights to indicate a hardware error.
SK200-UM-251-9370
(2) Paper sensors
(1) Top cover
(4) Document guides
(5) Anti-curling
guides
(3) Top cover open levers
plates.
If the top cover is opened during a scanning operation, the operation will be
stopped compulsorily.
document.
during a scanning operation.
Lit: Lights when the scanner is turned on and remains lit while it is operating
normally.
Flashing: Flashes when the scanner is in power-saving mode.
Lit: Lights when a document has been loaded.
Flashing: Flashes while image data is being scanned.
Flashing: Flashes when any of the following occurs:
• A document is detected during the self-test when the scanner is turned on
• When a paper jam is detected
• When the top cover is open
• When the document length is shorter than the specified scan length
*1 When "Confirm" has been selected for the End-of-paper Processing setting in the driver
software.
Unlit: Normal status
2-1
2. PART NAMES AND FUNCTIONS
Control Panel
(6) Power button
(7) POWER LED
(8) PAPER LED
(9) ERROR LED
(10) EJECT key
(11) STOP key
*1
