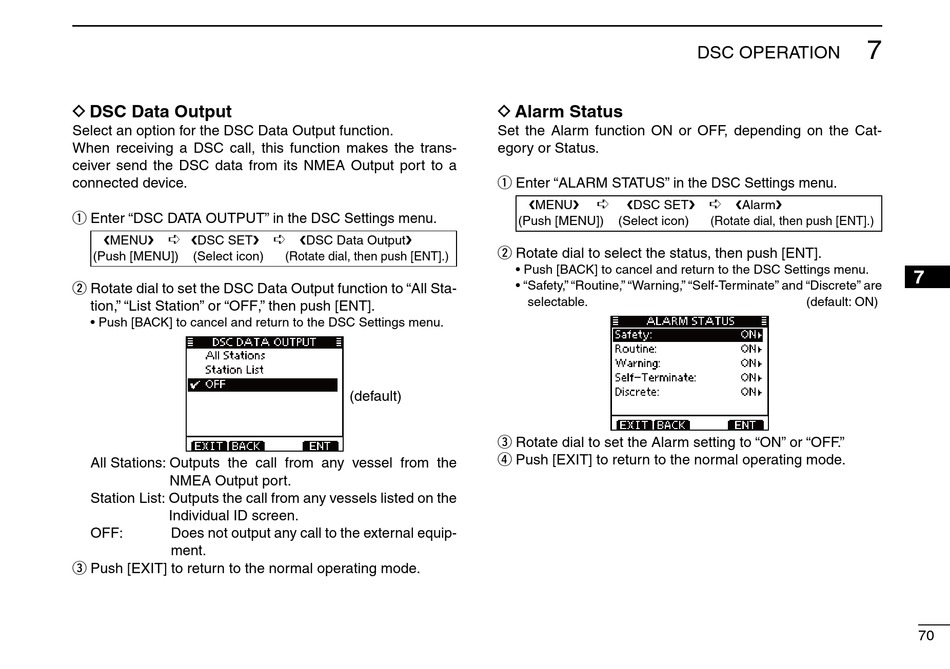

D DSC Data Output

Select an option for the DSC Data Output function.
When receiving a DSC call, this function makes the trans-
ceiver send the DSC data from its NMEA Output port to a
connected device.
q Enter "DSC DATA OUTPUT" in the DSC Settings menu.
DSC SET
➪
MENU
(Push [MENU]) (Select icon)
w Rotate dial to set the DSC Data Output function to "All Sta-
tion," "List Station" or "OFF," then push [ENT].
• Push [BACK] to cancel and return to the DSC Settings menu.
All Stations: Outputs the call from any vessel from the
NMEA Output port.
Station List: Outputs the call from any vessels listed on the
Individual ID screen.
OFF: Does not output any call to the external equip-
ment.
Push [EXIT] to return to the normal operating mode.
e
DSC Data Output
➪
(Rotate dial, then push [ENT].)
(default)
D Alarm Status
Set the Alarm function ON or OFF, depending on the Cat-
egory or Status.
q Enter "ALARM STATUS" in the DSC Settings menu.
➪ DSC SET
MENU
(Push [MENU]) (Select icon)
w Rotate dial to select the status, then push [ENT].
• Push [BACK] to cancel and return to the DSC Settings menu.
• "Safety," "Routine," "Warning," "Self-Terminate" and "Discrete" are
selectable.
Rotate dial to set the Alarm setting to "ON" or "OFF."
e
Push [EXIT] to return to the normal operating mode.
r
7
DSC OPERATION
➪
Alarm
(Rotate dial, then push [ENT].)
(default: ON)
