Signal Processing (DTR)

DTR
Back Next
1 2 3 4
DTR=DTR *
Set < > Exit
1 2 3 4
This parameter serves to select the type of protocol, i.e. a certain set
of rules and procedures for ensuring error-free data exchanges be-
tween computer and printer.

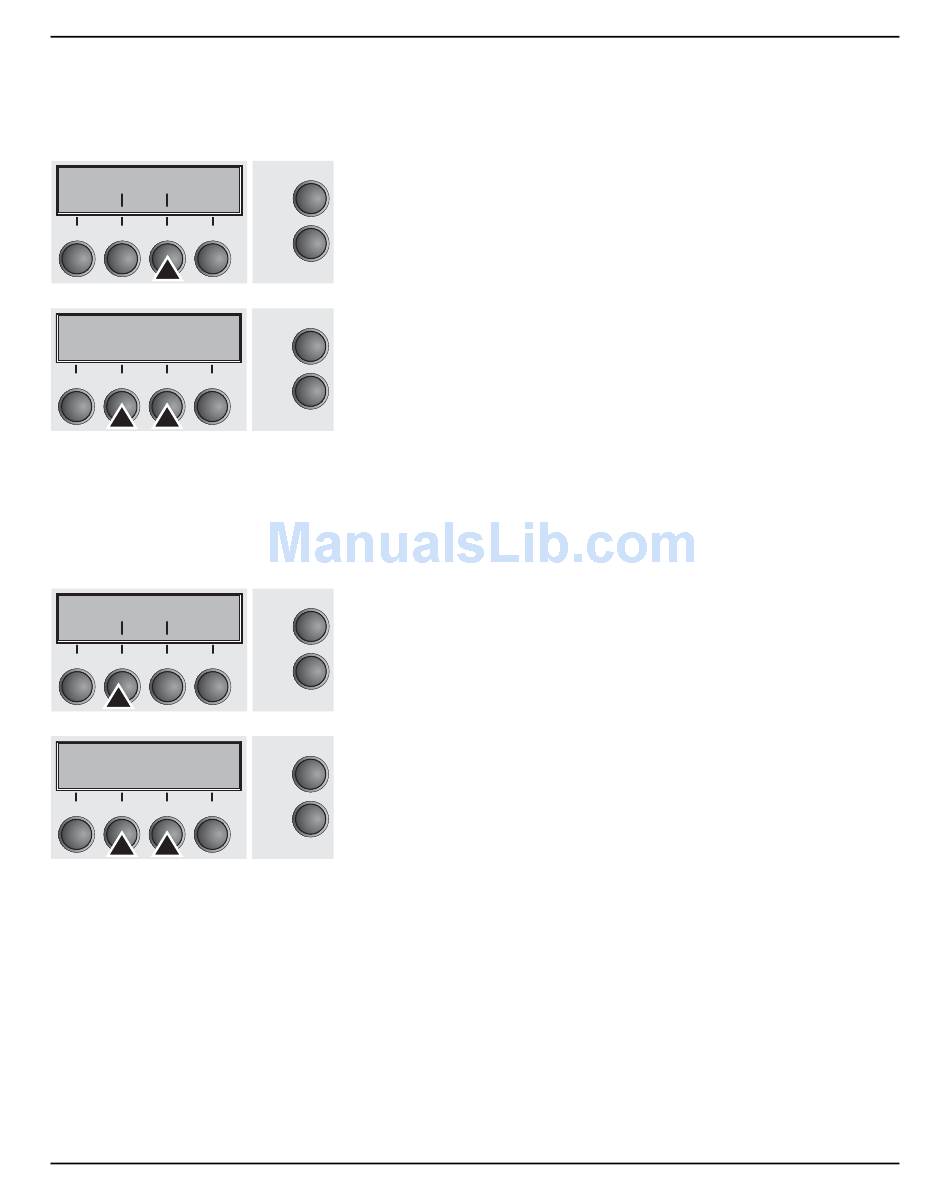

Press Protocol (3) key.
Online
Setup
Use the < (2) or > (3) key to select the desired setting.
Setting Options: XON/XOFF, Robust XON/XOFF,
Online
Default Setting: XON/XOFF
Setup
Confirm the setting by pressing the Set key (1). Press the Next key
(4) to access the next group of parameters.
Defines the conductor to which the DTR signal is connected
(DTR = Data Terminal Ready).
Press DTR (2) key.
Online
Setup
Use the < (2) or > (3) key to select the desired setting.
Setting Options: DTR/READY
Online
Default Setting: DTR
Setup
DTR=DTR: DTR signal is assigned to DTR line.
DTR=READY: READY signal is assigned to DTR line.
DTR = Pin 20 on 25-pin female RS232 connector.
DTR = Pin 4 on 9-pin female RS232 connector.
Confirm the setting by pressing the Set key (1). Press the Next key
(4) to access the next group of parameters.
ENQ/STX, ETX/ACK, ACK/NAK
