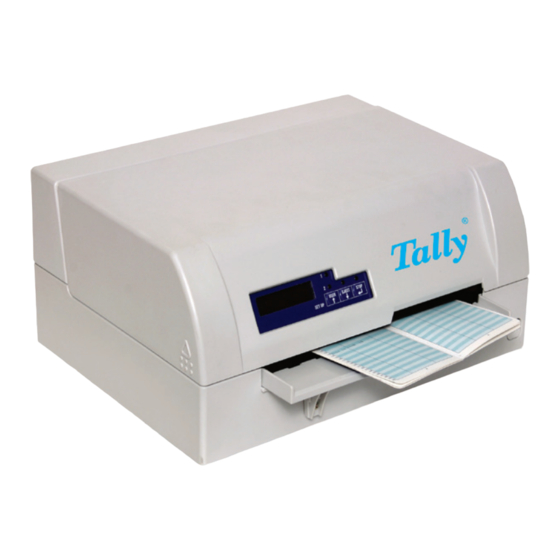

Dascom T5040 Specifications

T5040
Passbook Printer
With up to 600 characters per second (cps), the T5040
rapidly processes media of diverse types ranging from
passbooks and cheques to A5 receipts and A4 information
sheets.
The printer's flatbed design provides totally assured
paper handling, and with advanced features such as
Automatic Paper Alignment and Auto Gap Adjustment
(AGA), they offer unsurpassed ease-of-use. Using Serial
Impact technology - the most reliable and versatile method
available of producing print - the T5040 is a durable, robust,
dependable printer that supports a wide range of printing
applications.
Available Configuration:
T5040 Standard Product
• Supports a wide variety of media
• Automatic gap adjustment of the print head
• Automatic alignment of forms and passbooks
• Automatic edge detection
• Ability to connect to multiple hosts simultaneously
via parallel or USB, plus an optional second serial
port
• Unrivalled transaction times - typical passbook 2.2
seconds
• DIN Letter 11.8 seconds
The standard T5040 supports cut forms via a serial
interface connection and a secure command language,
as demanded within the banking environment. As standard,
USB and Parallel interfaces are included for flexibility of
connection and single-station, multi-user operation. A
second, plug in, serial interface is available as an upgrade
option.
Also available are models with Magnetic Stripe encoding
for reading accounts codes directly into the
system minimising user intervention.
