Removing/Installing the Front Basket Mounting Bracket

NOTE: For this procedure, refer to FIGURE 15.2.

Removing

1. Remove the front basket. Refer to Removing/Installing the Front Basket on page 108.
2. Perform one (1) of the following:
• On Zoom 300 - Remove the two (2) mounting screws, locknuts and washers that
secure the front basket mounting bracket to the tiller.
• On Zoom 400 - Remove the two (2) mounting screws, locknuts and washers that
secure the front basket mounting bracket to the mounting tab in the scooter frame.

Installing

1. Perform one (1) of the following:
• On Zoom 300 - Install the front basket mounting bracket to the tiller using the two
(2) mounting screws, locknuts and washers.
• On Zoom 400 - Install the front basket mounting bracket to the mounting tab in the
scooter frame using the two (2) mounting screws, locknuts and washers.
2. Install the front basket. Refer to Removing/Installing the Front Basket on page 108.
DETAIL "A" - ZOOM 300
NOTE: Front
basket not shown.
DETAIL "B" - ZOOM 400
Scooter Frame
Assembly
Mounting Screws

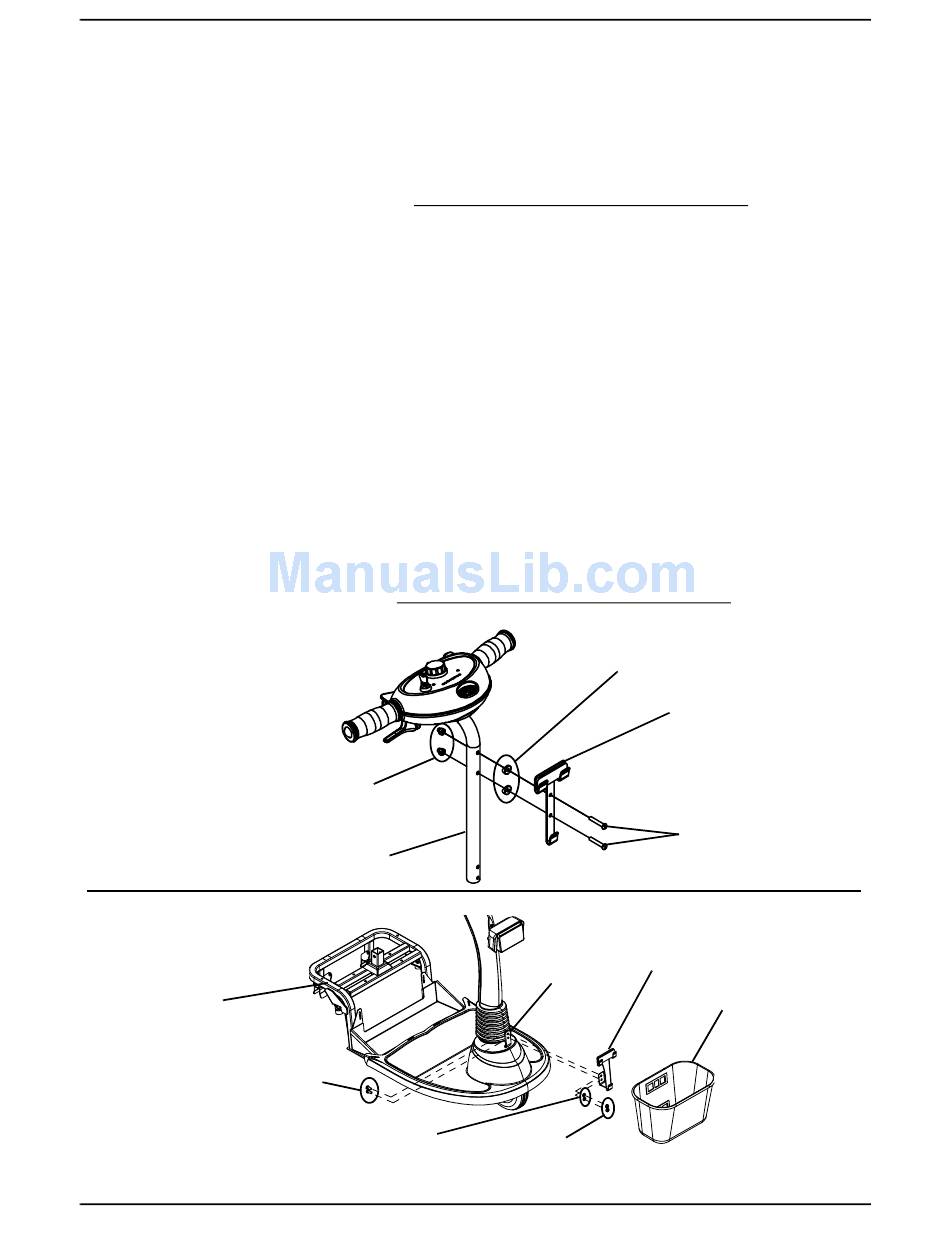

FIGURE 15.2 Removing/Installing the Front Basket Mounting Bracket
Part No 1122167
Locknuts
Tiller
Assembly
Washers
109
SECTION 15—SCOOTER ACCESSORIES
Washers
Mounting Bracket
Front Basket
Mounting
Mounting Bracket
Tab
Locknuts
Front Basket
Mounting Screws
Front Basket
Zoom 300 and Zoom 400
