System Expansion

Audio/Video Connections

The Audio and Video Loop Outputs are used to route
source audio and video between each S12 chassis.
Each source connected to S12 Unit 1 must be routed
to the corresponding source input on S12 Unit 2. This
process must be repeated for each chassis. Since
both the audio and video loop outputs are buffered,
there will be no loss of signal between S12s.
ELAN's CZP 15" audio interconnect cables were
specifically designed for looping source audio
between S12s. ELAN's CZV 15" video interconnect

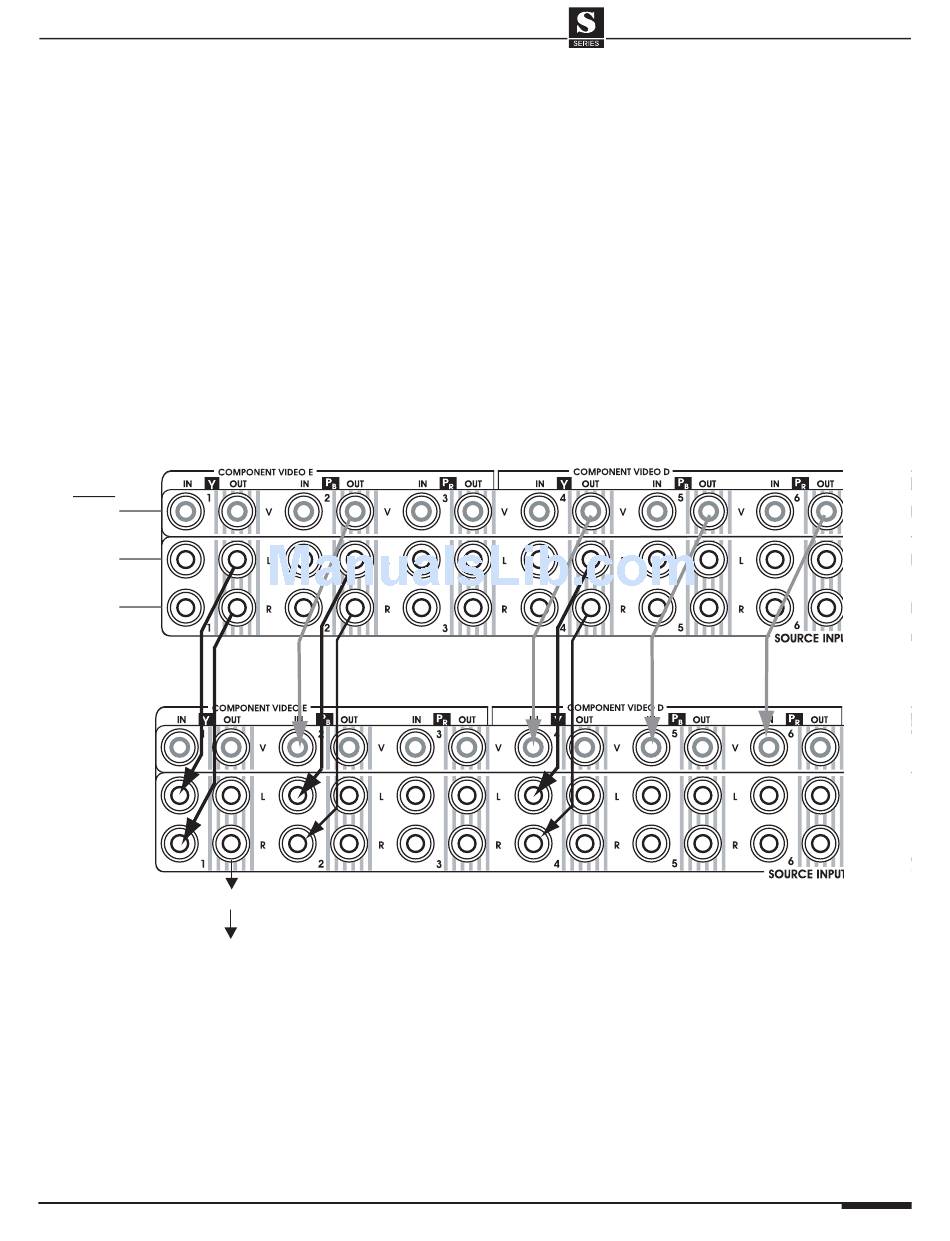

Source Audio, Composite Video, & Component Video Connections
(Audio Source 1, Audio/Composite Source 2, and Component Video Source D Shown)
S12 #1 (Zones 1-8)
From
Source
VIDEO
AUDIO L
AUDIO R
to S12 #3 (Zones 17-24)
to S12 #4 (Zones 25-32)
© ELAN Home Systems 2004 • All rights reserved.
(continued)
S12 #2 (Zones 9-16)
SYSTEM12
cables were specifically designed for looping
Composite video between S12 chassis, and can also
be used to loop Component video signals from DVD
players or other Standard Definition (SD) video
devices. For video sources that output High-
Definition Component signals, such as certain
cable/satellite receivers and DVHS machines, only
cables that are HD-rated should be used to loop
these video signals between chassis. Use of SD
video cables will result in a degradation of video
quality.
