System Expansion
(continued)
Multi-Chassis Z

600 Communications Connections

•
The S12 Expansion Kit (S12XK) includes the stereo 3.5mm 'mini plug' interconnect
cable needed to connect the Page Trigger Out to the Page Trigger In between S12
chassis. This connection must be made between all chassis in the system.
The S12XK also includes the single RCA interconnect cable needed to route page
audio between multiple S12's. Connect this cable between the Page Out of S12 #1
to the Page In on S12 #2. Repeat for S12s 2, 3 and 4 if required.
Note: Do not link MOH connections.

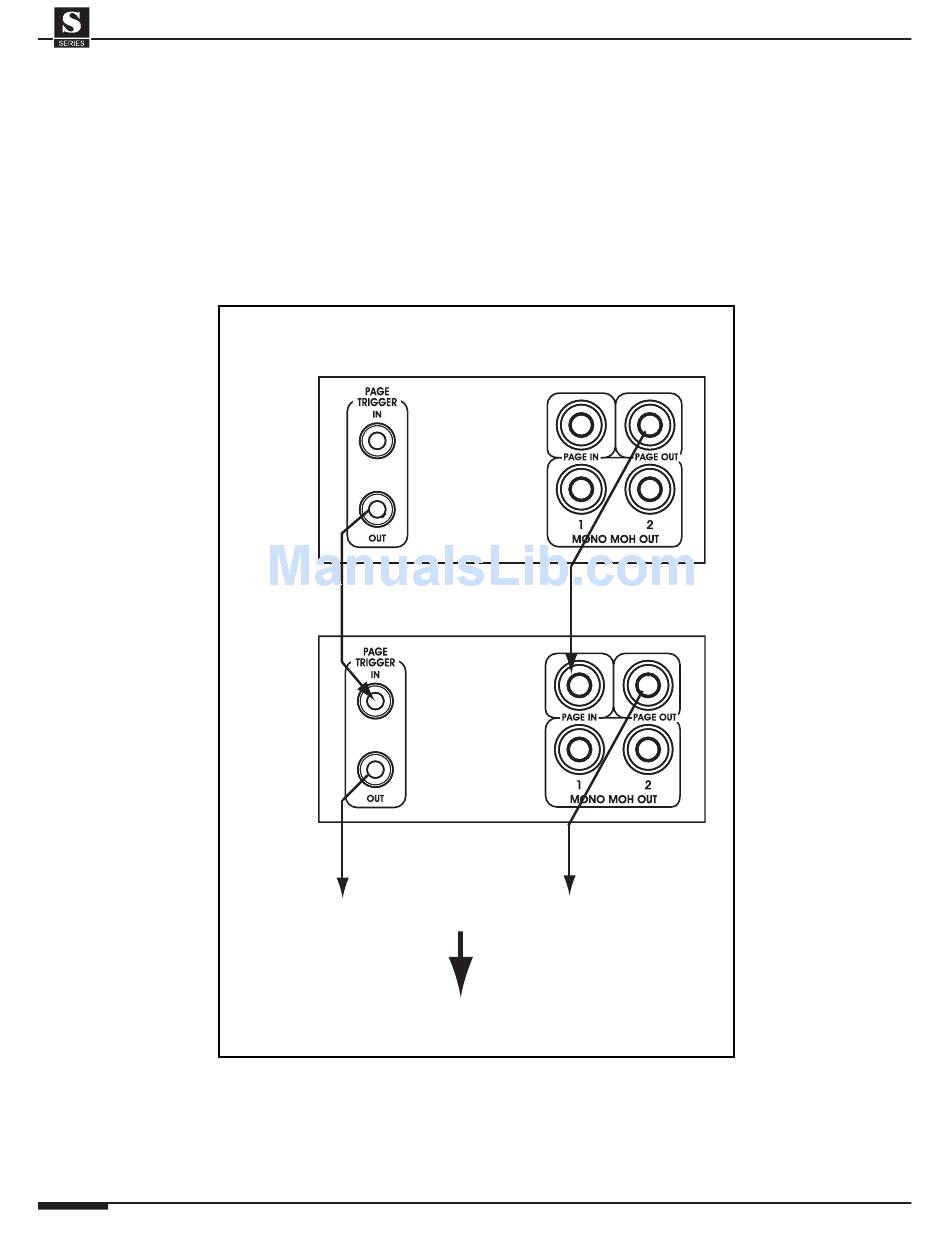

Multi-Chassis Communications Connections
S12 #1
mono
stereo 3.5mm
interconnect cable RCA Cable
S12 #2
To S12 #3
To S12 #4
