PS12 Rear Panel Connections
External IR Input (EXT IR IN) Connections
Use the External IR Input to send IR from a location that is not part of a zone to
the S12 in order to control system sources. By default, IR routed in this way
comes out all of the source IR Emitter Outputs and the two 'ALL' IR Outputs
simultaneously. VIA! Tools Programming software provides a method to route
®
the IR signal out of any combination of IR ports.

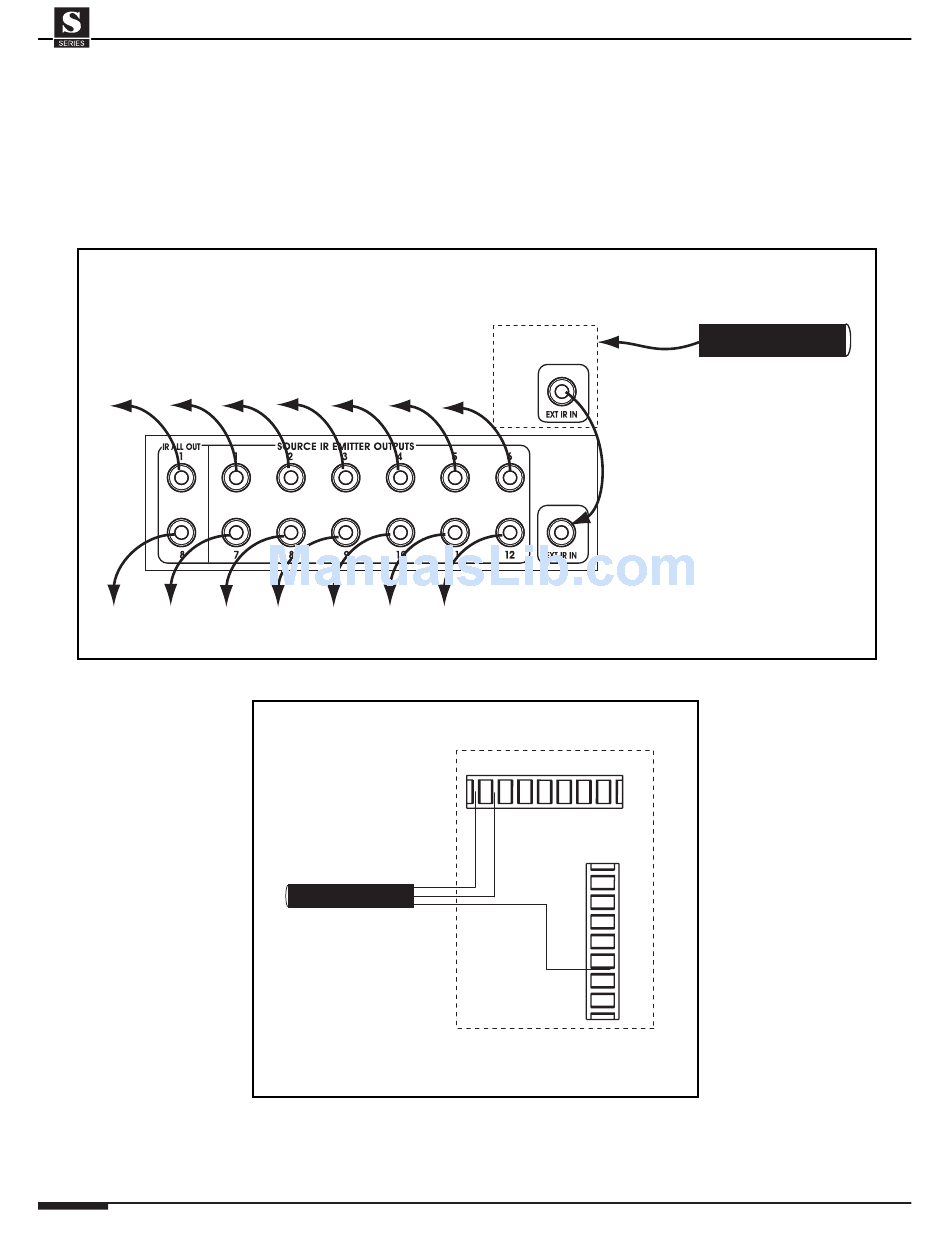

PS12 to S12 External IR Input Connections
IR emitters
to source components
Page 24
(continued)
IR emitters
to source components
IR Receiver to PS12 Rear Panel EXT IR Connector
IR Receiver
IR
Note:
A +12V connector or any of the KP punch-down
connectors can be used to power the IR receiver.
E L A N
PS12
Mono 3.5mm
S12
Interconnect Cable
EXT IR
IR G IR G IR G IR G
KP1
nc
GND
IR
nc
+12VDC
485+
485-
+12V
G
PS12
nc
