Audio Connections
(continued)
Fixed Zone Output Connections
Fixed zones deliver line-level audio at full output (100% volume). Use volume con-
trols in Fixed zones to adjust volume up and down in sub-zones. The use of ELAN
impedance matching volume controls allows increased speaker loads and
increased system flexibility.
Note: Variable Zone Audio Outputs can utilize all DSP functions such as
Bass, Treble, Volume, Source Leveling and Dynamic Range Compression.
Fixed Zone Audio Outputs utilize none of these functions, therefore zones
and sub-zones may sound different from each other.

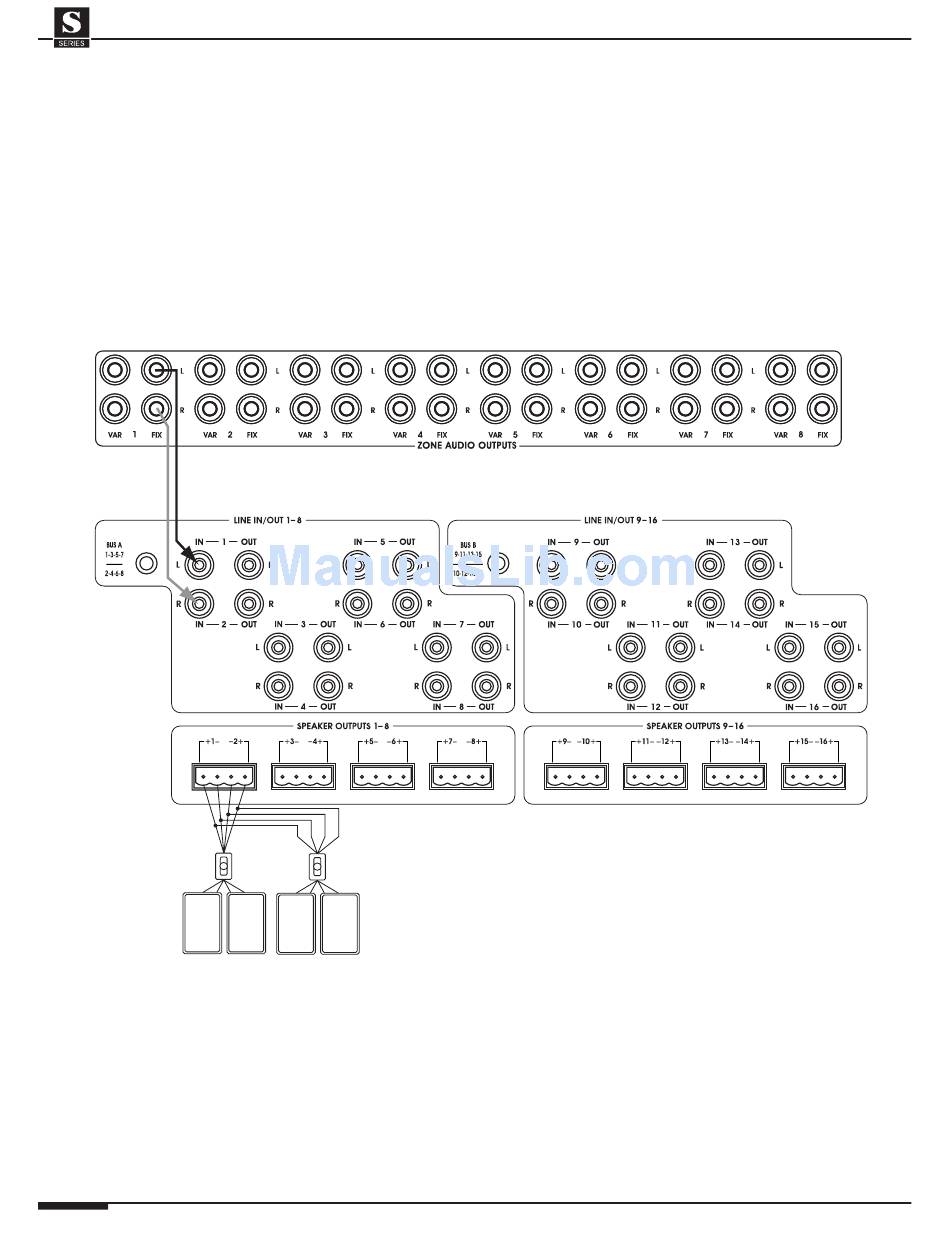

Fixed Zone Audio Outputs (
Zones 1-4 Shown)
S12
D1650
+
-
-
+
ELAN Impedance-Matching
Volume Controls
ZONE 1
ZONE 1
Fixed
Fixed
