SYSTEM12
INSTALLATION MANUAL
Z•600 Communications Controller Connections
PZ600 Precision Panel To S12 Connections
When using a Z•600 Communications Controller with the S12, ELAN recommends
a PZ600 Precision Panel. Relevant connections are the PAGE/DB OUT, DB1, and
DB2. Use a 3.5mm stereo interconnect cable to make this connection as follows:
•
If using the VIA! Touch Panel 'Wake w/ Doorbell' feature, connect DB1 to
®
Sense Input 1, and DB2 to Sense Input 2 of the S12. VIA!
will allow differentiation of the two doorbell triggers and allow the VIA! Touch
Panels to display different cameras when different doorbells are activated.

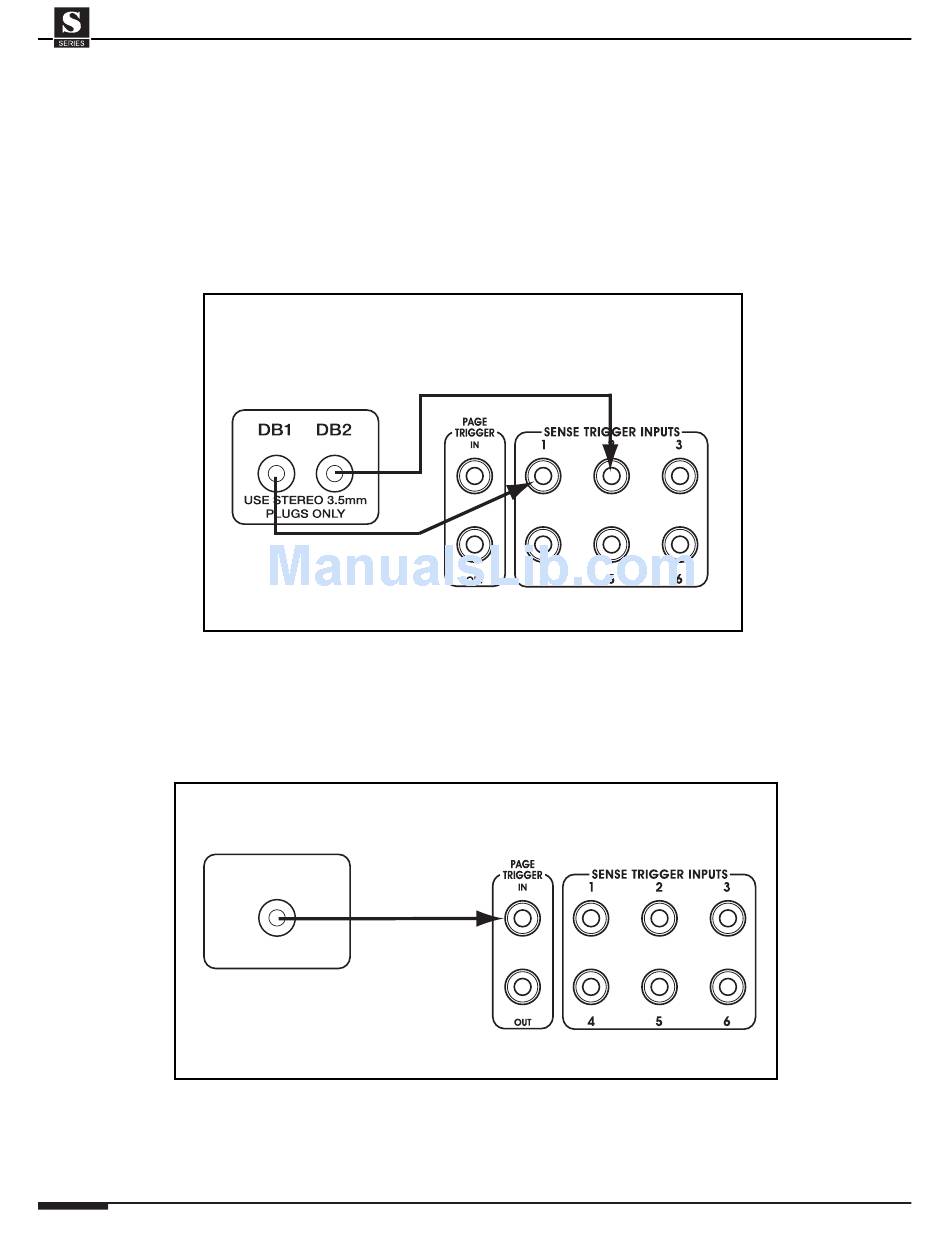

PZ600 to S12 Doorbell Connections
(Independent DB1 and DB2 triggering)
•
In any circumstance where independent door camera viewing is not required,
connect a 3.5mm stereo interconnect cable from the PAGE/DB OUT of the
PZ600 to the PAGE TRIGGER IN of the S12.
PZ600 to S12 Doorbell Connections
PZ600
Page 36
PZ600
3.5mm stereo
interconnect cable
PAGE/DB
OUT
3.5mm stereo
interconnect cable
E L A N
(continued)
Tools setup software
®
3.5 mm stereo
interconnect cable
(Single Page/DB Trigger)
© ELAN Home Systems 2004 • All rights reserved.
H O M E S Y S T E M S
S12
S12
