SYSTEM12
INSTALLATION MANUAL

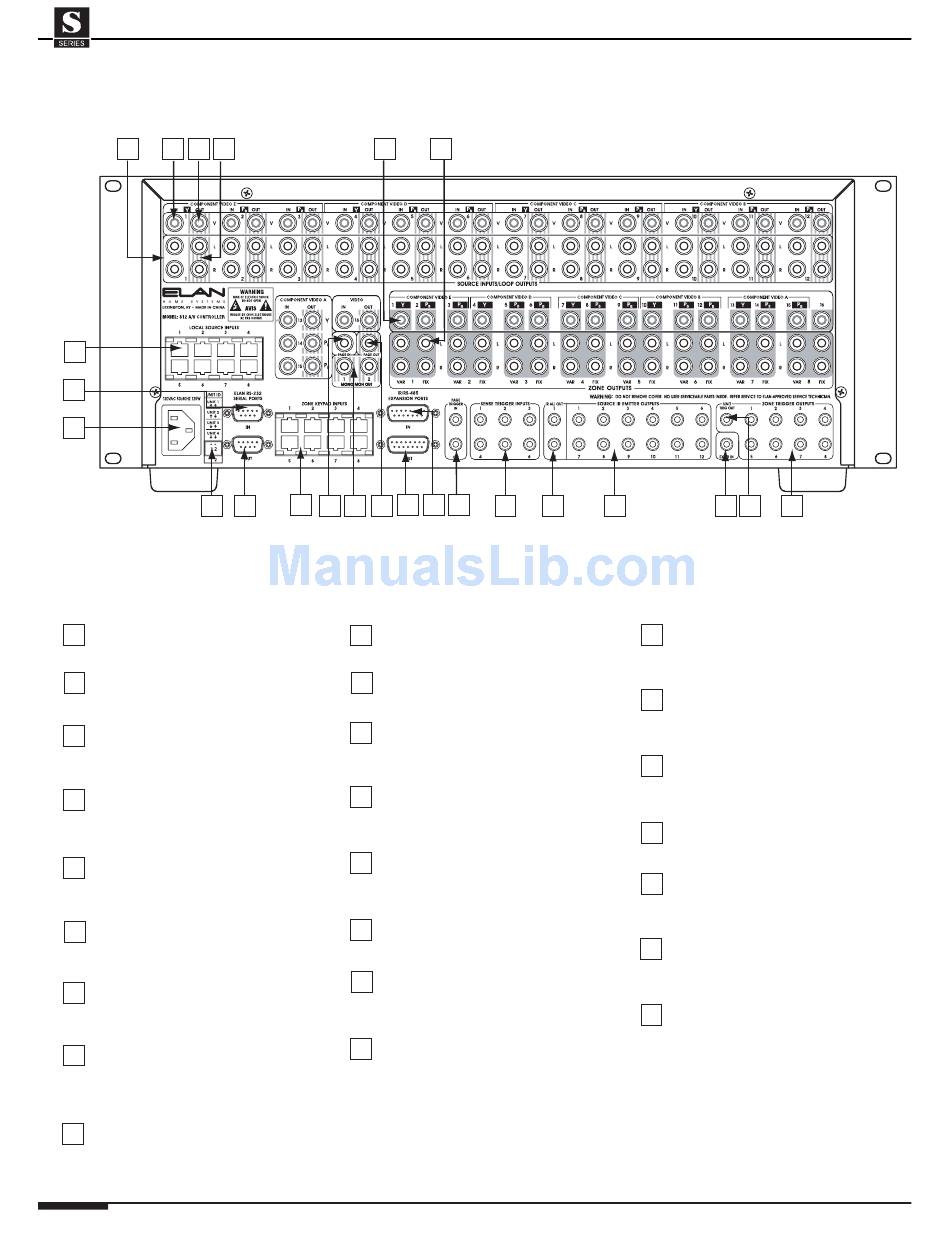

S12 Rear Panel

A B C D
G
H
I
J
Source Audio Inputs
A
Connect source audio
Source Video Inputs
B
Connect source Composite video
Source Video Loop Outputs
C
Use for shared video components
or linked chassis
Source Audio Loop Outputs
D
Used for shared audio sources or
linked chassis
Zone Video Outputs
E
Connect to TVs, VIA! Touch
Panels, etc.
Zone Audio Outputs
F
Connect to system Amplifier.
Fixed and Variable Outputs available
Local Source Inputs
G
Connect remotely located
"Local" sources
ELAN RS-232 Input
H
Connect a VIA!2 SS1 System Station
or SC4. Also for downloading
VIA!TOOLS program files
AC Power
I
Connect to AC Power
Page 10
E
K L M N O P
Unit ID Dipswitches
J
Configure Unit identity 1-4
ELAN RS-232 Output
K
Connect to additional S12 Chassis
Zone Keypad Inputs
L
Connect ELAN Keypads, VIA!s,
or IR Receivers
Page Input
M
Connect PG/DB Output from Z•600
Communications Controller
MOH Output
N
Connect to Z•600 MOH
(Music On Hold) Input
Page Output
O
Connect to additional S12s
IR/RS-485 Expansion Out
P
Connect to VIA!2SS1 or
additional S12s
IR/RS-485 Expansion In
Q
Connect Expansion Port Out to
Expansion Port In if using
multiple S12s
F
Q R S T
© ELAN Home Systems 2004 • All rights reserved.
E L A N H O M E S Y S T E M S
V W
U X
Page Trigger In/Out
R
PG Trigger In from Z•600
PG Trigger Out to additional S12s
Sense Trigger Inputs
S
Connect ELAN™SENSE Sensors
for automated functions
IR All Out
T
Connect IR to system sources that
do not require source-specific IR
Source IR Emitter Outputs
U
Source-specific IR Outputs
External IR Input
V
Connect non-system keypads or IR
receivers to control system sources
Chassis Trigger Output
W
Sends a 12 VDC Trigger whenever
any zone of chassis is active
Zone Trigger Outputs
X
Sends a 12 VDC Trigger when a
specific zone is active
