E L A N H O M E S Y S T E M S
Z•600 Communications Controller Connections

PZ600 Precision Panel

The PZ600 Precision Panel facilitates the connection
of telephone service, page, doorbell and
override signals, relays and door stations to the Z•600
Communications Controller and ELAN S Series
multi-room controllers.
The back of the PZ600 features 110 punch-downs for
the connection of incoming telephone service, tele-
phone extensions, 2 ELAN Door Stations, 4 Relays
and 8 Volume Control Override signals. There's also
an RJ-45 jack for a quick and easy link to the PVSE
Electronic Volume Control Precision Panel.
© ELAN Home Systems 2004 • All rights reserved.

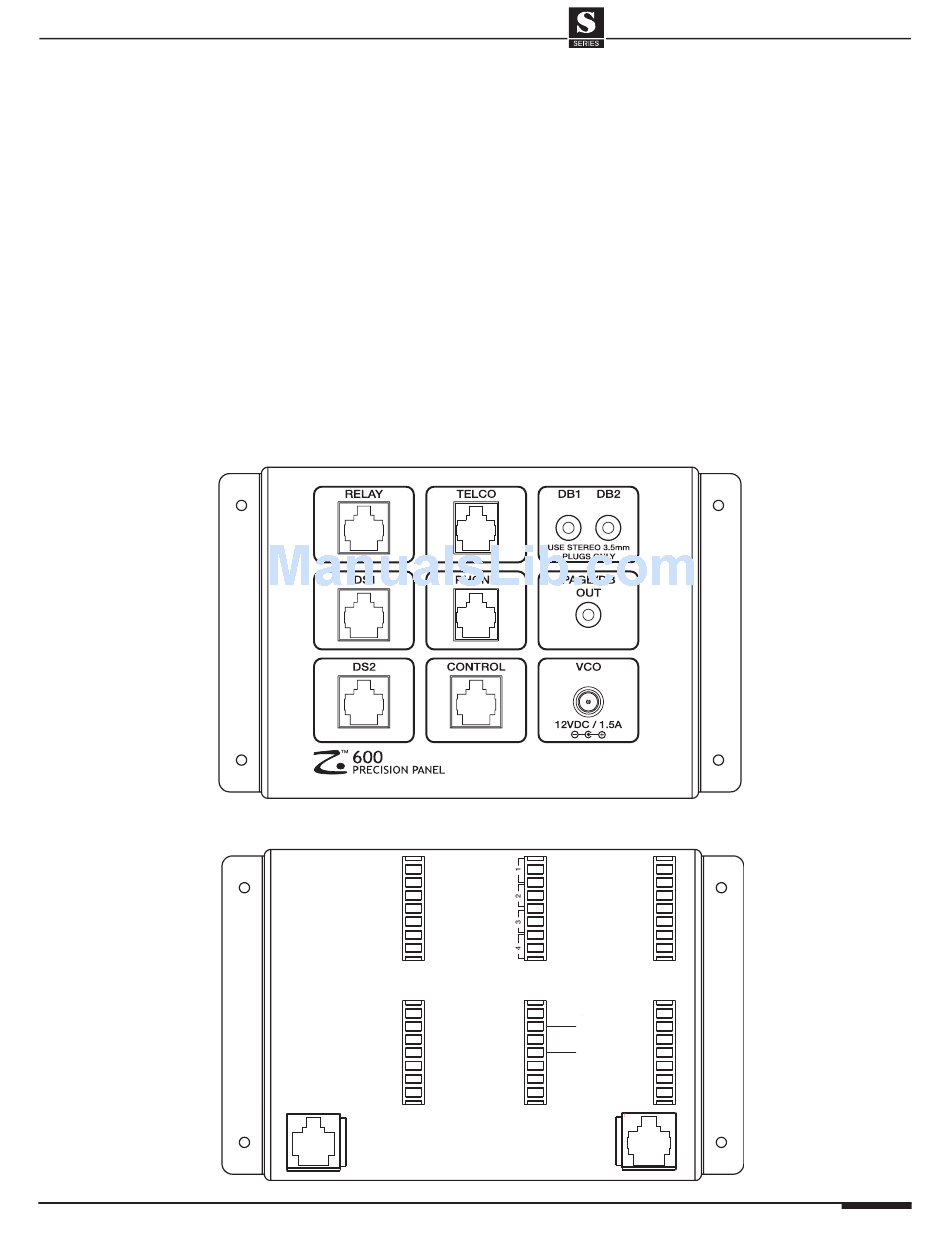

Front
Rear
VC-
VC+
VC-
VC+
VC-
VC+
VC-
VC+
VCO
VCO
VC-
VC+
VC-
VC+
VC-
VC+
VC-
VC+
OVERRIDE
IN
SYSTEM12
The front panel of the PZ600 has RJ-11 jacks for
Telco and Phone, and RJ-45 jacks for Relays,
Override Control and 2 Door Stations. All just plug
right into the back of the Z600 Communications
Controller. Doorbell 1 & 2 Trigger jacks are also
provided for the easy connection to S12 or S6 Sense
Inputs, as is a Page/Doorbell Out jack for connection
to the S12. A front panel DC power jack allows
connection of an ELAN power supply if using multiple
volume controls with override.
See VIA! TOOLS Help file for information about
®
programming discrete DB1 and DB2 functions for
the S12.
COM Bl M+
N.O. W/Bl M-
COM Or DB+
N.O. W/Or L+
COM Gr L-
N.O. W/Gr DB-
COM Br DS+
N.O. W/Br DS-
RELAY DS1
TELCO DS2
TIP Bl M+
PHONE
RNG W/Bl M-
TIP Or DB+
TELCO
RNG W/Or L+
nc Gr L-
nc W/Gr DB-
nc Br DS+
nc W/Br DS-
OVERRIDE
OUT
INSTALLATION MANUAL
Page 35
