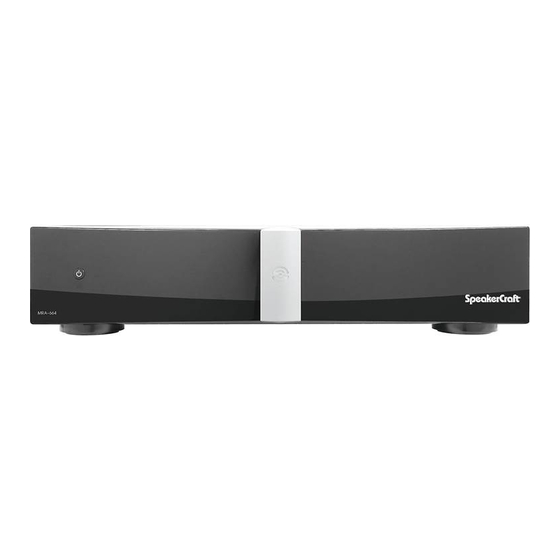

Elan SpeakerCraft MRA664 Integration Note

Manufacturer:
Model Number(s):
Minimum Core Module Versions:
Comments:
Document Revision Date:
O S
VERVIEW AND UPPORTED
T
HE FOLLOWING FEATURES ARE SUPPORTED
Traditional Whole-House Audio and Do Not Disturb: The SpeakerCraft MRA664 has support for 6 sources Plus Paging. It
has 6 outputs; 4 with preamp out and amplified speaker connections, and 2 preamp out only. Zones enrolled in Whole-House
Audio can also be placed in Do Not Disturb Mode.
Paging: The SpeakerCraft MRA664 Supports paging
IR Routing: The MRA664 has 6 IR Outputs. They are added as available IR outputs in the configurator when the device is
added to the system.
Multiple Controllers: Two SpeakerCraft MRA664 units can be controlled on the same network. Stacked MRA664 Controllers
are not supported and each is considerd its own independent Zone Controller.
Settings Pages: When the SpeakerCraft MRA664 is added into the Configurator, the ELAN system will auto-populate the
settings pages for the zones.
Ethernet Control: Reliable, 2-way communication is established between the Controller and the MRA664
Streaming Audio Sources: As of ELAN Control 8.1.398, The built-in streaming audio services are available for use on the
ELAN Control Platform. Note that the streaming services must be setup in the Speakercraft unit prior to adding to ELAN.
ELAN | SpeakerCraft
800 South McDowell Blvd., Petaluma CA 94954 • Toll Free: 800.472.5555 • Fax: 707.283.5901
SpeakerCraft
MRA664
ELAN version 7.1 (8.1.398 for streaming audio)
MRA Software 1.4.510 or above
6/9/2017
F
EATURES
:
Any feature not specifically noted as "supported" is not supported.
| Gefen | Furman | Niles | Panamax | Sunfire | BlueBOLT | Proficient | Xantech
Integration Note
