Audio Connections
Fixed and Variable Zone Output Connections
The S12 has the ability to send a Fixed output and a Variable output simultaneous-
ly. This feature can be used to great advantage when utilizing sub-zones. Audio
that is routed out of the Variable zone outputs will ramp volume up and down at
line-level using IR or RS-232 commands. Audio that is routed out the Fixed
outputs will be adjusted using volume controls.

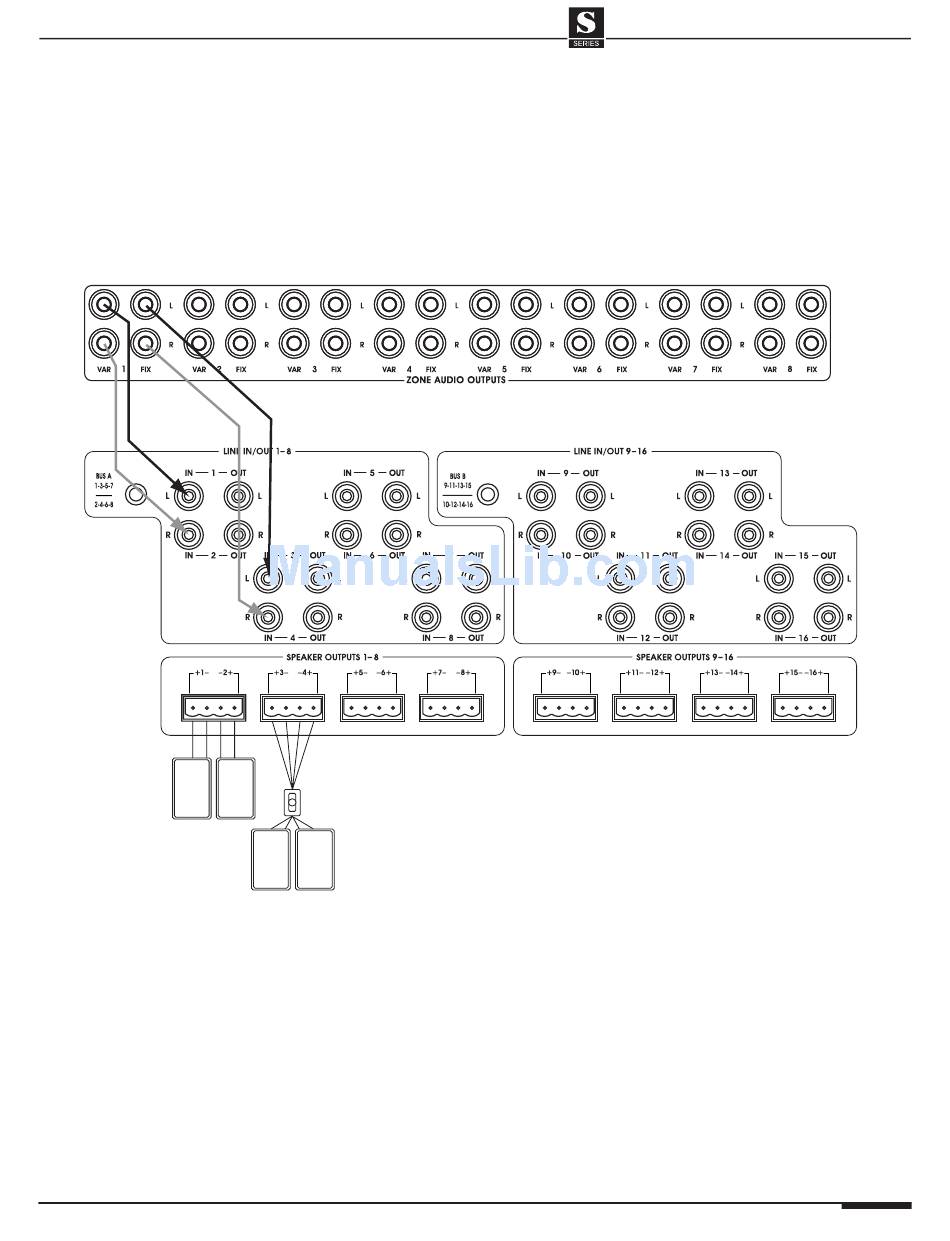

Fixed/Variable Zone Audio Outputs
S12
D1650
ZONE 1
Variable
© ELAN Home Systems 2004 • All rights reserved.
(continued)
(Zone 1 Shown)
ZONE 1
Fixed
SYSTEM12
INSTALLATION MANUAL
Page 43
