E L A N
H O M E
S Y S T E M S
Z•600 Communications Controller Connections

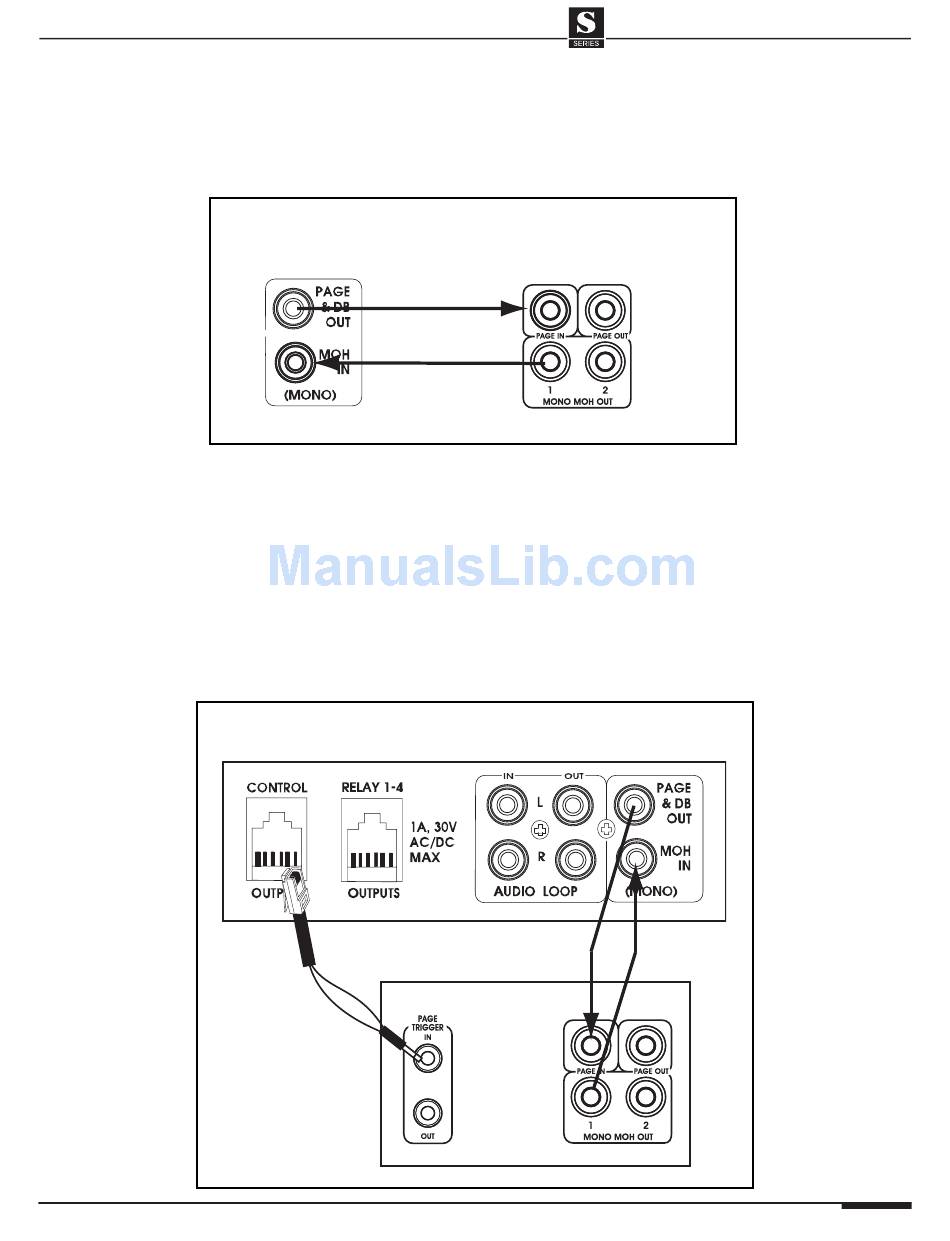

Z•600 to S12 Audio Connections
Using a stereo RCA interconnect cable, connect Z•600 PAGE & DB OUT to the
S12's PAGE IN, and one of the S12's MONO MOH OUT jacks to the MOH IN of
the Z•600.
Z•600 Connections
The diagram below shows the necessary connections when installing a Z•600
and an S12 without using a PS12 or PZ600 Precision Panel. Required connections
include:
• Control Output from Z•600 to Page IN of S12
• PG & DB OUT from Z•600 to PAGE IN of S12
• MOH OUT from S12 to MOH IN of Z•600
• PAGE OUT from S12 #1 to PAGE IN of S12 #2
(for multi-chassis systems - see System Expansion p. 54)
Z•600 to S12 (No PZ600 Precision Panel)
© ELAN Home Systems 2004 • All rights reserved.
Z600 to S12 Page/Doorbell/Music-On-Hold Connections
Z•600
RCA Cable
(no PS12 or PZ600 Precision Panel)
Z•600
C45P
S12
Tip = Blue
Sleeve = Green
3.5mm mono
interconnect
cable
(continued)
S12
Stereo
SYSTEM12
INSTALLATION MANUAL
Stereo
RCA Cable
Page 37
