3

Getting Started

This chapter demonstrates how to install the hard disk drive, PCI/
PCIe card and CompactFlash card into system. Additional COM
ports jumper settings and and the MXC-4000 series wall-mount
installation are also discussed.

3.1 Installing a hard disk drive

Before installing a hard disk drive, you should remove the top
cover of chassis first. Please follow the instruction below.

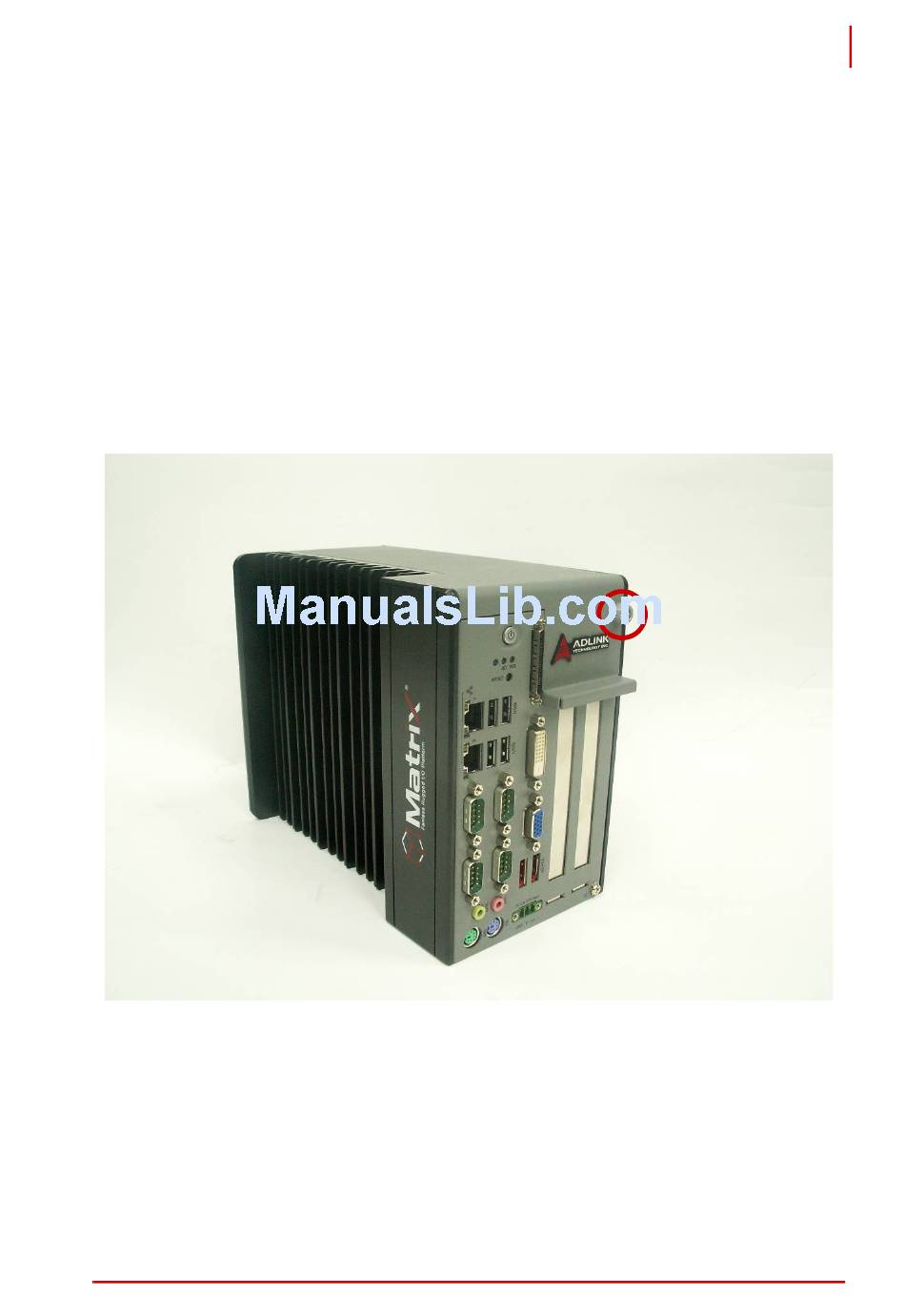

1. Unscrew the screw on the front panel by hand or a
screwdriver.
Getting Started
Matrix MXC-4000 Series
User's Manual
29
