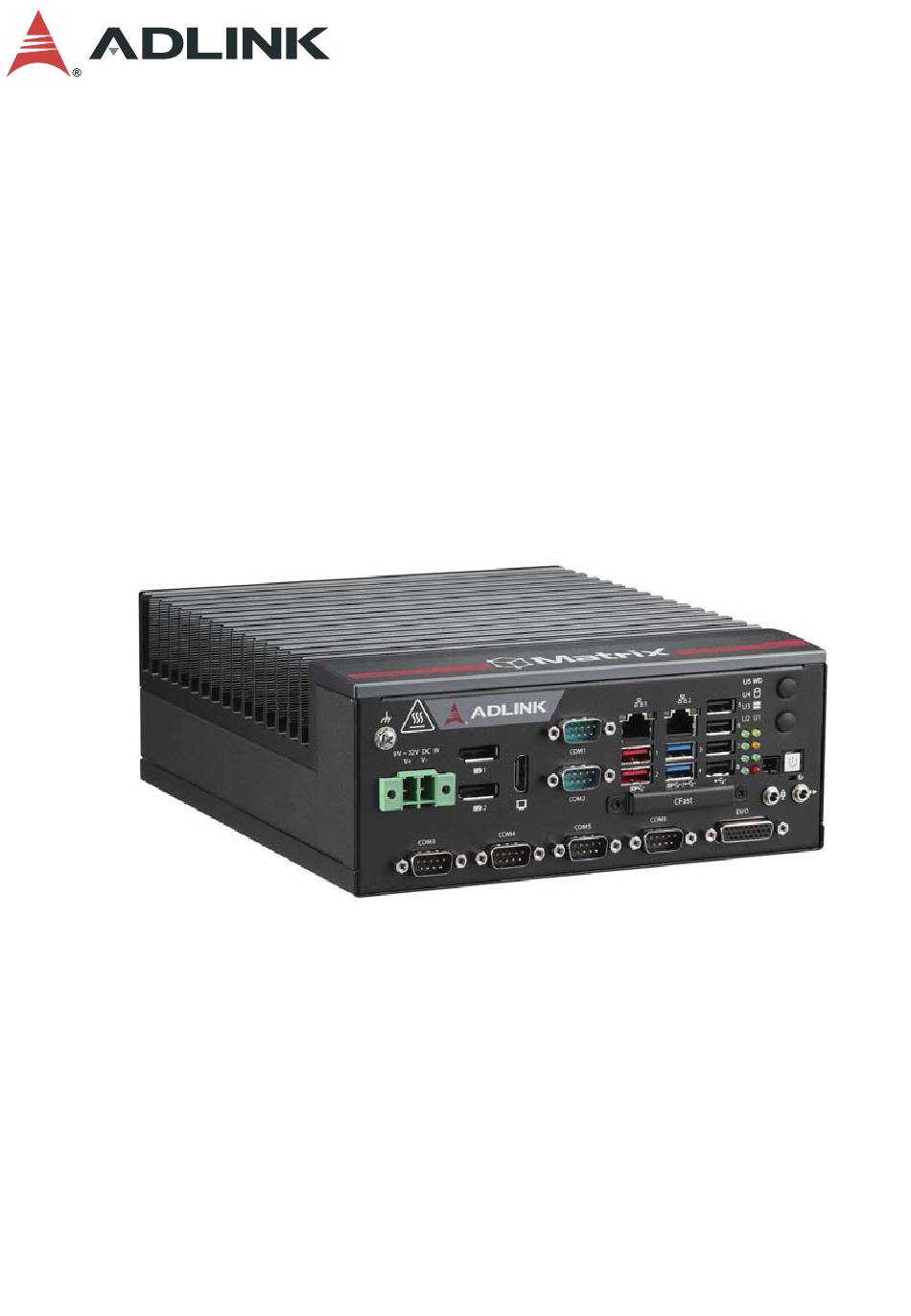

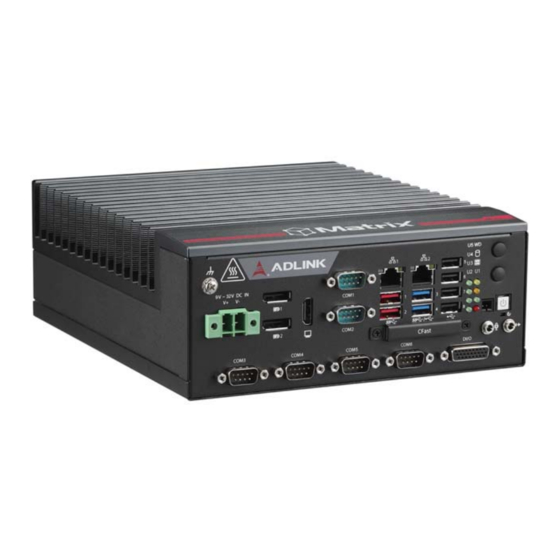

MXE-5600 Series
9th Gen Intel® Xeon®, Core™ i7/i3 and
8th Gen Intel® Core™ i5
Embedded Fanless Computer
MXE-560X/5601/5602/5603
User's Manual
Manual Rev.:
Revision Date:
Part No:
Leading EDGE COMPUTING
1.0
June 21, 2020
50-1Z319-1000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MXE-5600 Series and is the answer not in the manual?

Questions and answers

Related Manuals for ADLINK Technology MXE-5600 Series

Summary of Contents for ADLINK Technology MXE-5600 Series

  • Page 1 MXE-5600 Series 9th Gen Intel® Xeon®, Core™ i7/i3 and 8th Gen Intel® Core™ i5 Embedded Fanless Computer MXE-560X/5601/5602/5603 User’s Manual Manual Rev.: June 21, 2020 Revision Date: 50-1Z319-1000 Part No: Leading EDGE COMPUTING...
  • Page 2 Leading EDGE COMPUTING Revision History Revision Release Date Description of Change(s) 2020-06-21 Initial release Revision History...

  • Page 3: Preface

    MXE-5600 Series Preface Copyright © 2020 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 4 Leading EDGE COMPUTING California Proposition 65 Warning WARNING: This product can expose you to chemicals including acrylamide, arsenic, benzene, cadmium, Tris(1,3-dichloro-2-propyl) phosphate (TDCPP), 1,4- Dioxane, formaldehyde, lead, DEHP, styrene, DINP, BBP, PVC, and vinyl materials, which are known to the State of California to cause cancer, and acrylamide, benzene, cadmium, lead, mercury, phthalates, toluene, DEHP, DIDP, DnHP, DBP, BBP, PVC, and vinyl materials, which are known to the State of California to cause...

  • Page 5: Table Of Contents

    Packing List ................. 2 Optional Accessories ............2 2 Specifications ..............3 MXE-560X, MXE-5601 ............3 MXE-5602, MXE-5603............5 MXE-5600 Series Functional Block Diagram....... 7 Display Options..............8 Mechanical Dimensions............9 3 System Layout..............11 Front Panel ................ 11 Internal I/O Connectors............22 4 Getting Started ..............
  • Page 6 Leading EDGE COMPUTING B Appendix: BIOS Setup............33 Main ................... 34 Advanced ................35 Chipset................50 Security ................59 Boot ................... 61 Save & Exit ................ 63 C Appendix: Watchdog Timer (WDT) Function Library ..............65 WDT with API/Windows ............. 65 WDT with DOS/Linux ............68 D Appendix: Digital Input/Output Function Library ..............71 Important Safety Instructions..........

  • Page 7: List Of Tables

    MXE-5600 Series List of Tables Table 2-1: Maximum Display Resolution Configurations ..... 8 Table 3-1: Front Panel I/O Legend ..........11 Table 3-2: DisplayPort Pin Definition ......... 13 Table 3-3: Applicable Cable Types..........13 Table 3-4: Digital Input/Output Connector Pin Definition ... 14 Table 3-5: HDMI Connector Pin Definition.........
  • Page 8 Leading EDGE COMPUTING This page intentionally left blank. viii List of Tables...

  • Page 9: List Of Figures

    MXE-5600 Series List of Figures Figure 2-1: MXE-5600 Series Functional Block Diagram....7 Figure 2-2: MXE-5600 Series Top View..........9 Figure 2-3: MXE-5600 Series Side View.......... 10 Figure 2-4: MXE-5600 Series Front View ........10 Figure 3-1: Front Panel I/O .............. 11 Figure 3-2: DisplayPort Connector Pin Definition......
  • Page 10 Leading EDGE COMPUTING This page intentionally left blank. List of Figures...

  • Page 11: Introduction

    Combining superior processor performance, wireless capability, and rich, scalable I/O in a compact and robust package, the ADLINK MXE-5600 Series is an ideal choice for a wide range of applications supporting intelligent transportation, in- vehicle multimedia, surveillance, and factory automation applica- tions.

  • Page 12: Features

    Retain the shipping carton and packing mate- rials for inspection. Obtain authorization from your dealer before returning any product to ADLINK. Ensure that the following items are included in the package. MXE-5600 Series Fanless Embedded Computer Accessory Box DC power jack Wall-mount brackets Screw pack 1.4 Optional Accessories...

  • Page 13: Specifications

    MXE-5600 Series Specifications 2.1 MXE-560X, MXE-5601 MXE-560X MXE-5601 System Core Intel® Xeon® Intel® Core™ Processor E-2276ME 45W i7-9850HE 45W Cores Base Freq. 2.8 GHz 2.7 GHz MAX Turbo 4.5 GHz 4.4 GHz Freq. Chipset Mobile Intel® CM246 4GB DDR4 2400MHz, dual SODIMMs, up to 32GB...
  • Page 14 Leading EDGE COMPUTING MXE-560X MXE-5601 Physical Dimensions 210 (W) x 240 (D) x 86 (H) mm (8.27" x 9.45" x 3.39") Weight 3.6 kg (8 lbs) Mounting Wall mount Power Supply DC Input 9 to 32V (± 10% tolerance) AC Input Optional: 160W AC/DC adapter Environmental Standard...

  • Page 15: Mxe-5602, Mxe-5603

    MXE-5600 Series 2.2 MXE-5602, MXE-5603 MXE-5602 MXE-5603 System Core Intel® Core™ Intel® Core™ Processor i5-8400H 45W i3-9100HL 25W Cores Base Freq. 2.5 GHz 1.6 GHz MAX Turbo 4.2 GHz 2.9 GHz Freq. Chipset Mobile Intel® CM246 4GB DDR4 2400MHz, dual SODIMMs, up to 32GB...
  • Page 16 Leading EDGE COMPUTING MXE-5602 MXE-5603 Physical Dimensions 210 (W) x 240 (D) x 86 (H) mm (8.27" x 9.45" x 3.39") Weight 3.6 kg (8 lbs) Mounting Wall mount Power Supply DC Input 9 to 32V (± 10% tolerance) AC Input Optional: 160W AC/DC adapter Environmental Standard...

  • Page 17: Mxe-5600 Series Functional Block Diagram

    2 USB 2 and 2 USB 2/USB 3 SMBus GPI/O 8DI/8DO CN (Cable) board C CN x2 DP (Colay with DDI2) TPM 2.0 UART(cable) 2x D-sub (RS232/422/485) UART(cable) FAN CN 2x D-sub (RS232) NCT6106D UART(cable) 2x D-sub (RS232) optional Figure 2-1: MXE-5600 Series Functional Block Diagram Specifications...

  • Page 18: Display Options

    Leading EDGE COMPUTING 2.4 Display Options With computing and graphic performance enhancement from its 8th and 9th Generation Intel® processors, the MXE-5600 Series controller can support three independent displays in the following configurations. Port Resolution DisplayPort1 4096x2304@60Hz Display Option 1...

  • Page 19: Mechanical Dimensions

    MXE-5600 Series 2.5 Mechanical Dimensions R2.6 units: mm Figure 2-2: MXE-5600 Series Top View Specifications...

  • Page 20: Figure 2-3: Mxe-5600 Series Side View

    Leading EDGE COMPUTING units: mm Figure 2-3: MXE-5600 Series Side View Figure 2-4: MXE-5600 Series Front View Specifications...

  • Page 21: System Layout

    MXE-5600 Series System Layout 3.1 Front Panel The MXE-5600 Series provides the following front panel access features. Figure 3-1: Front Panel I/O DC Power Supply Extend Power Button Connector DisplayPort x2 J Power Button HDMI Connector K Reset Button USB 3.1 Gen2 (Type-A) x2...
  • Page 22 Leading EDGE COMPUTING 3.1.1 Power Button The power button is a non-latched push button with a blue LED indicator. The system is turned on when the button is pressed, and the power LED lights. If the system hangs, press and hold the but- ton for 5 seconds to turn it off.

  • Page 23: Table 3-2: Displayport Pin Definition

    MXE-5600 Series 3.1.4 DisplayPort Connectors Two DisplayPort connectors on the front panel can connect to VGA, DVI, HDMI and DisplayPort monitors via DisplayPort to VGA adapter cable, DisplayPort to DVI adapter cable, or DisplayPort to HDMI adapter cable and DisplayPort cable.

  • Page 24: Table 3-4: Digital Input/Output Connector Pin Definition

    Leading EDGE COMPUTING 3.1.5 Digital I/O Connector The MXE-5600 Series provides 8 channels of non-isolation digital input and 8 channels of non-isolation digital output circuits, with specifications and circuits as follows. 8-channel Digital Input VIH: 2 to 5.25V VIL: 0 to 0.8V...

  • Page 25: Figure 3-4: Digital Input Circuit

    MXE-5600 Series Figure 3-4: Digital Input Circuit Figure 3-5: Digital Output Circuit System Layout...

  • Page 26: Table 3-5: Hdmi Connector Pin Definition

    BIOS. 3.1.8 USB 3.1 Ports The MXE-5600 Series provides two USB 3.1 Gen2 and two USB 3.1 Gen1 ports supporting Type-A USB 3.1 connection on the front panel. All USB 3.1 ports are compatible with super-speed Gen1, high-speed, full-speed and low-speed USB devices, except USB 3.1 ports 1 and 2, which support only USB 3.1 Gen2 devices.

  • Page 27: Figure 3-6: Ethernet Port And Leds

    MXE-5600 Series 3.1.9 Gigabit Ethernet Ports Three Gigabit Ethernet ports on the front panel support Intel WGI211AT and WGI219LM Gigabit Ethernet PHY controller and connection, providing IEEE 802.3az Energy Efficient Ethernet IEEE 1588/802.1AS precision time synchronization IEEE 802.3Qav traffic shaper...

  • Page 28: Table 3-6: Ethernet Port Pin Definition

    Leading EDGE COMPUTING 10BASE-T/ Pin # 1000BASE-T 100BASE-TX LAN_TX0+ LAN_TX0- LAN_TX1+ — LAN_TX2+ — LAN_TX2- LAN_TX1- — LAN_TX3+ — LAN_TX3- Table 3-6: Ethernet Port Pin Definition LED Color Status Description Ethernet port is disconnected. Yellow Ethernet port is connected with no activity. Flashing Ethernet port is connected and active.

  • Page 29: Table 3-9: Dc Power Input Pin Definition

    MXE-5600 Series 3.1.10 DC Power Input Figure 3-7: DC Power Input Signal V+ (DC_IN) V- (DGND) Table 3-9: DC Power Input Pin Definition Refer to Section 4.1: Attach DC Power Connector on page 27 to install the DC Power Connector to the DC Power Input.

  • Page 30: Table 3-10: D-Sub 9-Pin Signal Function Of Com Ports

    Leading EDGE COMPUTING 3.1.11 COM Port Connectors The MXE-5600 Series provides four COM ports through D-sub 9- pin connectors. The COM1 & COM2 ports support RS-232/422/ 485 modes by BIOS setting, while COM3, COM4, COM5 and COM6 support only RS-232.

  • Page 31: Figure 3-9: Cfast Host Slot

    MXE-5600 Series 3.1.12 CFast Host Slot The MXE-5600 Series is equipped with a Type II Push-Push CFast host slot on the front panel, by SATA interface. Data trans- fer rates up to 3.0Gb/s (300MB/s) are supported. The host SATA controller provides a legacy operating mode using I/O space, and an AHCI operating mode using memory space.

  • Page 32: Internal I/O Connectors

    Leading EDGE COMPUTING 3.2 Internal I/O Connectors 3.2.1 Mainboard Connector Locations Figure 3-10: Mainboard Connectors System Layout...

  • Page 33: Table 3-11: Mainboard Connector Legend

    MXE-5600 Series Fan connector SATA connector1 SATA connector2 USB 2.0 dongle BP slot BP slot For MXM card power wafer FM board to board connector CFast connector Battery socket DDR4 slot M.2 connector Sim card socket by M.2 Sim card socket by Mini PCIe...

  • Page 34: Table 3-12: Gps Module Power Header Pin Definition

    Leading EDGE COMPUTING 3.2.2 GPS Module Power Headers Power supply via cable for Mini PCIe GPS module cards (5V). Figure 3-11: GPS Module Power Header Pin Definition Signal +5V_GPS Table 3-12: GPS Module Power Header Pin Definition 3.2.3 USB 2.0 Connector One USB 2.0 Type-A connector is provided on the mainboard for internal USB dongle, with another on the backplane board.

  • Page 35: Table 3-13: Pwr/Reset Header Pin Definition

    MXE-5600 Series 3.2.6 Clear CMOS Jumper Upon encountering an abnormal condition preventing the device from booting, the jumper can clear the BIOS content stored in CMOS and restore default settings. To clear CMOS, short pin #1 to pin #2 for a minimum of 3 seconds, and then remove the jumper to return to normal mode (replace to pins #2 and #3, default).

  • Page 36: Table 3-14: 12V Power Pin Definition

    Leading EDGE COMPUTING 3.2.9 12V Power for Additional AFM MXM Carrier Board One 12V power pin header provides additional AFM MXM carrier board power for an MXM card, if used. Figure 3-14: 12V Power Pin Definition Signal Signal P_+12V_B P_+12V_B Table 3-14: 12V Power Pin Definition For additional information regarding the AFM MXM Carrier Board, please contact your ADLINK representative.

  • Page 37: Getting Started

    MXE-5600 Series Getting Started 4.1 Attach DC Power Connector Locate the DC power connector shown below that is included in the Accessory Box. Insert it into the DC Power Input “A” shown in Figure 3-1 on page 11 and secure it to the chassis using the cap- tive screws.

  • Page 38: Mounting The Mxe-5600 Series

    Leading EDGE COMPUTING 4.2 Mounting the MXE-5600 Series 4.2.1 Install the Wall-mount Brackets Use the 6 M4 6mm screws included in the Accessory Box to attach the 2 included wall-mount brackets to the chassis as indi- cated by the red circles below.
  • Page 39 Figure 2-2 MXE-5600 Series Top View. Montez l'appareil sur un mur à l'aide des 4 ouvertures de trou de serrure en fonction des dimensions d'espacement des trous dans le support, comme indiqué dans Figure 2-2 MXE-5600 Series Top View. keyhole keyhole...

  • Page 40: Driver Installation

    Leading EDGE COMPUTING 4.3 Driver Installation Download the Windows 10 drivers for your system from the product page at https://www.adlinktech.com/Products/ Industrial_PCs_Fanless_Embedded_PCs/IntegratedFanlessEm- beddedComputers/MXE-5600_Series and install. The following drivers must be installed: Chipset Graphics Audio Ethernet Intel ME DI/O Getting Started...

  • Page 41: A Appendix: Power

    MXE-5600 Series Appendix A Power Information in this Appendix is for power budget planning and design purposes only. Actual power consumption may differ based on final application. NOTE: NOTE: A.1 Power Consumption Reference Power consumption as follows is based on lab data in which 24V DC is applied and current is measured by the DC power supply.
  • Page 42 Leading EDGE COMPUTING Sufficient power supply for the entire system is required to meet these specifications. At least 100W at 24V input is recommended. NOTE: NOTE: Heat generated by add-on PCI/PCIe adapters affects thermal stability. Additional heat dissipa- tion is required when the system operates at high temperatures or in harsh environments with add-on adapters.

  • Page 43: B Appendix: Bios Setup

    MXE-5600 Series. Most users do not need to use the BIOS setup program, as the MXE-5600 Series ships with default settings that work well for most configurations. Enter BIOS setup by selecting DEL when the system is powered on the POST (Power On Self Test) message is displayed.The...

  • Page 44: Main

    Leading EDGE COMPUTING B.1 Main Contains basic system information for the MXE-5600 Series. Changing BIOS settings may lead to incorrect controller behav- ior and possible inability to boot. In such a case, Section 3.2.6:Clear CMOS Jumper provides instruction on WARNING:...

  • Page 45: Advanced

    The time is in 24-hour format. For example, 5:30 A.M. NOTE: NOTE: appears as 05:30:00, and 5:30 P.M. as 17:30:00. B.2 Advanced Setting incorrect or conflicting values in Advanced BIOS Setup may cause a system malfunction CAUTION: Accesses advanced options of the MXE-5600 Series. BIOS Setup...
  • Page 46 Leading EDGE COMPUTING B.2.1CPU Configuration BIOS Setup...
  • Page 47 MXE-5600 Series Hyper-Threading Enabled for Windows 7, 10 IoT Enterprise, and Linux (optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled. Active Processor Cores Number of cores to enable in each processor package. Intel (VMX) Virtualization Technology When enabled, a VMM can utilize the additional hardware capabil- ities provided by Vanderpool Technology.
  • Page 48 Leading EDGE COMPUTING B.2.2 Power Management State After G3 Specify what state to go to when power is re-applied after a power failure (G3 state). RTC Wake system from S5 Enables/Disables the system wake on alarm event. Select Fixed- Time, and the system will wake on the hr::min::sec specified. Select DynamicTime, the system will wake on the current time + Increase minute(s).
  • Page 49 MXE-5600 Series B.2.3 Serial Console Configuration COM1 Console Redirection Enables/Disables SIO COM1 Console Redirection. Console Redirection Settings The settings specify how the host computer and the remote com- puter (which the user is using) will exchange data. Both computers should have the same or compatible settings.
  • Page 50 Leading EDGE COMPUTING Console Redirection Settings The settings specify how the host computer and the remote com- puter (which the user is using) will exchange data. Both computers should have the same or compatible settings. COM SOL (Pci Bus0, Dev22.Fun3) Console Redirection Enables/Disables AMT PCI SOL Console Redirection.
  • Page 51 MXE-5600 Series B.2.4 USB Configuration USB Mass Storage Driver Support Enables/Disables USB mass storage driver support. USB transfer time-out Timeout value for Control, Bulk, and Interrupt transfers. Device reset time-out USB mass storage device Start Unit command timeout. Device power-up delay...
  • Page 52 Leading EDGE COMPUTING B.2.5 TPM 2.0 Configuration Security Device Support Enables/Disables BIOS support for security devices. The operat- ing system will not show the security device. The TCG EFI proto- col and INT1A interface will not be available. SHA-1 PCR Bank Enables/Disables SHA-1 PCR Bank.
  • Page 53 MXE-5600 Series Pending operation Schedule an operation for the security device. The computer will reboot in order to change the state of the security device NOTE: NOTE: Platform Hierarchy Enables/Disables Platform Hierarchy. Storage Hierarchy Enables/Disables Storage Hierarchy. Endorsement Hierarchy Enables/Disables Endorsement Hierarchy.
  • Page 54 Leading EDGE COMPUTING B.2.6 AMT Configuration AMT BIOS Features When disabled, AMT BIOS Features are no longer supported and the user is no longer able to access MEBx Setup. MEBx hotkey Pressed Enable automatic MEBx hotkey press. BIOS Setup...
  • Page 55 MXE-5600 Series B.2.7 Onboard Devices Configuration COM1 Control Sets port type (RS-232/422/485) for COM1 serial port. COM2 Control Sets port type (RS-232/422/485) for COM2 serial port. LAN #1 (Intel I219) Enables/Disables onboard Intel I219 LAN controller. LAN #2 (Intel I211AT) Enables/Disables onboard Intel I211AT LAN controller.
  • Page 56 Leading EDGE COMPUTING B.2.8 NCT6106D HW Monitor NCT6106D HW Monitor Displays CPU/board temperatures, system fan speed and various voltages. System Fan Control Mode Sets the system fan control mode. T1 (Temperature 1), Range: 1-100 T1 Duty Set T1 related DC/PWM value, Range: 0-255 T2 (Temperature 2), Range: 1-100 BIOS Setup...
  • Page 57 MXE-5600 Series T2 Duty Set T2 related DC/PWM value, Range: 0-255 T3 (Temperature 3), Range: 1-100 T3 Duty Set T3 related DC/PWM value, Range: 0-255 T4 (Temperature 4), Range: 1-100 T4 Duty Set T4 related DC/PWM value, Range: 0-255 BIOS Setup...
  • Page 58 Leading EDGE COMPUTING B.2.9 BIOS Watchdog Timer BIOS POST Watchdog Disable: Disables watchdog timer. Second Mode: Enables watchdog timer in seconds mode. Minute Mode: Enables watchdog timer in minutes mode. BIOS Setup...
  • Page 59 MXE-5600 Series B.2.10 Network Stack Configuration Network Stack Enables/Disables UEFI network stack. BIOS Setup...

  • Page 60: Chipset

    Leading EDGE COMPUTING B.3 Chipset Setting incorrect or conflicting values in Chipset BIOS Setup may cause a system malfunction. CAUTION: BIOS Setup...
  • Page 61 MXE-5600 Series B.3.1 System Agent (SA) Configuration System Agent (SA) Configuration Display and configure VT-d's capability and provide settings for memory, graphics and DMI/OPI configuration. BIOS Setup...
  • Page 62 Leading EDGE COMPUTING B.3.1.1 Memory Configuration Memory Configuration Display memory speed, size, brand and configuration. BIOS Setup...
  • Page 63 MXE-5600 Series B.3.1.2 Graphics Configuration Internal Graphics Keep IGFX enabled based on the Setup options. GTT Size Sets GTT size. Aperture Size Sets aperture size. DVMT Pre-Allocated Sets size of DVMT 5.0 pre-allocated (fixed) graphics memory used by the internal graphics device.
  • Page 64 Leading EDGE COMPUTING DVMT Total Gfx Mem Sets size of DVMT5.0 total graphic memory used by the internal graphics device. B.3.1.3 DMI/OPI Configuration DMI/OPI Configuration Display DMI link speed and width. DMI Max Link Speed Set sDMI speed to Gen1/Gen2/Gen3. BIOS Setup...
  • Page 65 MXE-5600 Series B.3.2 PCH-IO Configuration PCH-IO Configuration Provides for SATA, Security and HD Audio configuration. BIOS Setup...
  • Page 66 Leading EDGE COMPUTING B.3.2.1 SATA And RST Configuration SATA Mode Selection Determines how SATA controller(s) operate. SATA Controller Speed Sets the maximum speed the SATA controller can support. M.2 Storage Enables/Disables M.2 storage. CFast Card Enables/Disables CFast card. Hot Plug Designates selected port as hot pluggable.
  • Page 67 MXE-5600 Series SATA HDD 1 Enables/Disables SATA HDD 1 SATA HDD 2 Enables/Disables SATA HDD 2 B.3.2.2 Security Configuration BIOS Lock Enable/Disable the PCH BIOS Lock Enable feature. Required to be enabled to ensure SMM protection of flash. BIOS Setup...
  • Page 68 Leading EDGE COMPUTING B.3.2.3 HD Audio Configuration Audio Output Selection Selects the audio output device. BIOS Setup...

  • Page 69: Security

    MXE-5600 Series B.4 Security If only the Administrator password is set, access s limited and the password requested on Setup. If User password is set, it acts as a power-on password and must be entered to boot or enter setup. In...
  • Page 70 Leading EDGE COMPUTING B.4.1 Secure Boot Menu Secure Boot Control The Secure Boot feature is Active if Secure Boot is enabled, Plat- form Key (PK) is enrolled and the system is in User mode. Chang- ing the system mode requires a platform reset. BIOS Setup...

  • Page 71: Boot

    MXE-5600 Series B.5 Boot Setup Prompt Timeout Number of seconds before setup activation key is launched, with 65535(0xFFFF) setting an indefinite wait time. Bootup Num-Lock State Sets keypad Number Lock status following boot. Quiet Boot Option Description Disabled Directs BIOS to display POST messages Enabled Directs BIOS to display the OEM logo.
  • Page 72 Leading EDGE COMPUTING Fast Boot Option Description Disabled Directs BIOS to perform all POST tests. Directs BIOS to skip certain POST tests to boot Enabled faster. While enabling Fast Boot can reduce system ready time, some prerequisites can reduce effectiveness Boot mode select Sets legacy or UEFI boot mode.

  • Page 73: Save & Exit

    MXE-5600 Series B.6 Save & Exit Save Changes and Exit Saves all changes before exiting Setup. Discard Changes and Exit Discards all changes and exits Setup. Save Changes and Reset Saves all changes and reboots the system with the new settings.
  • Page 74 Leading EDGE COMPUTING Discard Changes Discards all changes without exiting Setup. Restore Defaults Sets all BIOS options to default settings, designed for maximum system stability but less than maximum performance. Select Restore Defaults if the computer encounters system configuration problems. Save as User Defaults Save the current changes as user defaults.

  • Page 75: C Appendix: Watchdog Timer (Wdt)

    Industrial_PCs_Fanless_Embedded_PCs/IntegratedFanless EmbeddedComputers/MXE-5600_Series?lang=en To use the WDT function library for the MXE-5600 Series, include the header file WDT.h and linkage library WDT.lib in the C++ proj- ect. InitWDT Initializes the watchdog timer function. Must be called before the invocation of any other WDT function.
  • Page 76 Leading EDGE COMPUTING SetWDT Sets the timeout value of the watchdog timer. There are two parameters for this function to indicate the timeout ticks and unit. ResetWDT or StopWDT should be called before the expi- ration of watchdog timer, or the system will reset. Syntax C/C++ BOOL SetWDT(BYTE tick, BYTE unit)
  • Page 77 MXE-5600 Series Parameters None Return codes TRUE if watchdog timer is successfully started. FALSE if watchdog timer is failed to start. ResetWDT Reset the watchdog timer. The invocation of ResetWDT allows restoration of the watchdog timer to the initial timeout value specified in SetWDT function.

  • Page 78: Wdt With Dos/Linux

    Leading EDGE COMPUTING C.2 WDT with DOS/Linux Under Linux, please program the WDT function using the LPC IO registers according to the sample program as follows. #include <dos.h> #include <stddef.h> #include <stdio.h> /* Config LPC IO NCT6102D to enter config mode */ EnterConfig(void) outp(0x4E, 0x87);...
  • Page 79 MXE-5600 Series printf("Init and config GPIO ports<<<<<<<<<<<<<<<<<<<<<<<<<\n"); printf("---------------------------------------------- ----\n"); EnterConfig(); /* config WDT registers */ w_reg(0x07,0x08); /* enable keyboard interrupt to reset WDT timeout value */ w_reg(0xF2,r_reg(0xF2)|0x40); /* set unit as second */ w_reg(0xF0,r_reg(0xF0)&~0x04); /* start the Watchdog */ w_reg(0x30,0x01);...
  • Page 80 Leading EDGE COMPUTING printf("WDT is disable. Program is terminating."); ExitConfig(); return 0; Watchdog Timer (WDT) Function Library...

  • Page 81: D Appendix: Digital Input/Output

    Matrix DI/O API library files and a demo program (including source code) can be downloaded from http://www.adlinktech.com. To use the DI/O function library for the MXE-5600 Series, include the header file matrix_dio.h and linkage library matrix_dio.lib (matrix_dio64.lib for x64 operating systems) in the C++ project.
  • Page 82 Leading EDGE COMPUTING DI/O Functions ADMX_DIO_Init Initializes the DI/O function library. Syntax C/C++ short __stdcall ADMX_DIO_Init () Parameter(s) Return codes 0: NoError -13: ErrorOpenDriverFailed -200: ErrorDeviceIoctl ADMX_DIO_Close Closes the DI/O function library. Syntax C/C++ short __stdcall ADMX_DIO_Close () Parameter(s) Return codes 0: NoError Digital Input/Output Function Library...
  • Page 83 C/C++ short __stdcall ADMX_DI_ReadPort(unsigned long* pwState) Parameter(s) pwState The state values of MXE-5600 Series digital input channels 1 to 8 (corresponding values 0 to 7) 1: Corresponding input/output line is HIGH 0: Corresponding input/output line is LOW Return codes 0: NoError...
  • Page 84 __stdcall ADMX_DO_WritePort(unsigned long wState) Parameter(s) wState Sets the state values of MXE-5600 Series digital output chan- nels 1 to 8 (corresponding values 0 to 7) 1: Corresponding input/output line is HIGH 0: Corresponding input/output line is LOW Return codes...
  • Page 85 C/C++ short __stdcall ADMX_DO_ReadPort(unsigned long* pwState) Parameter(s) pwState The state values of MXE-5600 Series digital output channels 1 to 8 (corresponding values 0 to 7) 1: Corresponding input/output line is HIGH 0: Corresponding input/output line is LOW Return codes 0: NoError...
  • Page 86 Syntax C/C++ short __stdcall LED_Write(unsigned short wState) Parameter(s) wState Sets the state values of MXE-5600 Series LED channels 1 to 5 (corresponding values 0 to 4) 1: Corresponding input/output line is HIGH 0: Corresponding input/output line is LOW Return codes...
  • Page 87 Syntax C/C++ short __stdcall LED_Read(unsigned short wState) Parameter(s) wState The state values of MXE-5600 Series LED channels 1 to 5 (corresponding values 0 to 4) 1: Corresponding input/output line is HIGH 0: Corresponding input/output line is LOW Return codes 0: NoError...
  • Page 88 Leading EDGE COMPUTING This page intentionally left blank. Digital Input/Output Function Library...

  • Page 89: Important Safety Instructions

    MXE-5600 Series Important Safety Instructions For user safety, please read and follow all instructions, Warnings, Cautions, and Notes marked in this manual and on the associated device before handling/operating the device, to avoid injury or damage. Read these safety instructions carefully.
  • Page 90 Leading EDGE COMPUTING A Lithium-type battery may be provided for uninterrupted backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type; please dispose of used batteries appropriately. CAUTION: This equipment is not suitable for use in locations where children are likely to be present.

  • Page 91: Consignes De Sécurité Importante

    MXE-5600 Series Consignes de Sécurité Importante S'il vous plaît prêter attention stricte à tous les avertissements et mises en garde figurant sur l'appareil, pour éviter des blessures ou des dommages. Lisez attentivement ces consignes de sécurité. Conservez le manuel de l'utilisateur pour pouvoir le con- sulter ultérieurement.
  • Page 92 Leading EDGE COMPUTING Si l'appareil ne doit pas être utilisé pendant de longues péri- odes, éteignez-le et débranchez-le de sa source d'alimenta- tion N'essayez jamais de réparer l'appareil, qui ne doit être réparé que par un personnel technique qualifié à l'aide d'outils appro- priés Une batterie de type Lithium peut être fournie pour une ali- mentation de secours ininterrompue ou d'urgence.
  • Page 93 MXE-5600 Series RISQUE DE BRÛLURES Partie chaude! Ne touchez pas cette surface, cela pourrait entraîner des blessures. Pour éviter tout danger, laissez la surface refroidir avant de la toucher. Consignes de Sécurité Importante...
  • Page 94 Leading EDGE COMPUTING This page intentionally left blank. Consignes de Sécurité Importante...

  • Page 95: Getting Service

    San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. 300 Fang Chun Rd., Zhangjiang Hi-Tech Park Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com ADLINK Technology GmbH Hans-Thoma-Straße 11...

This manual is also suitable for:

Mxe-5601Mxe-5602Mxe-5603
