Matrix MXC-4000 Series
User's Manual
2.4.6

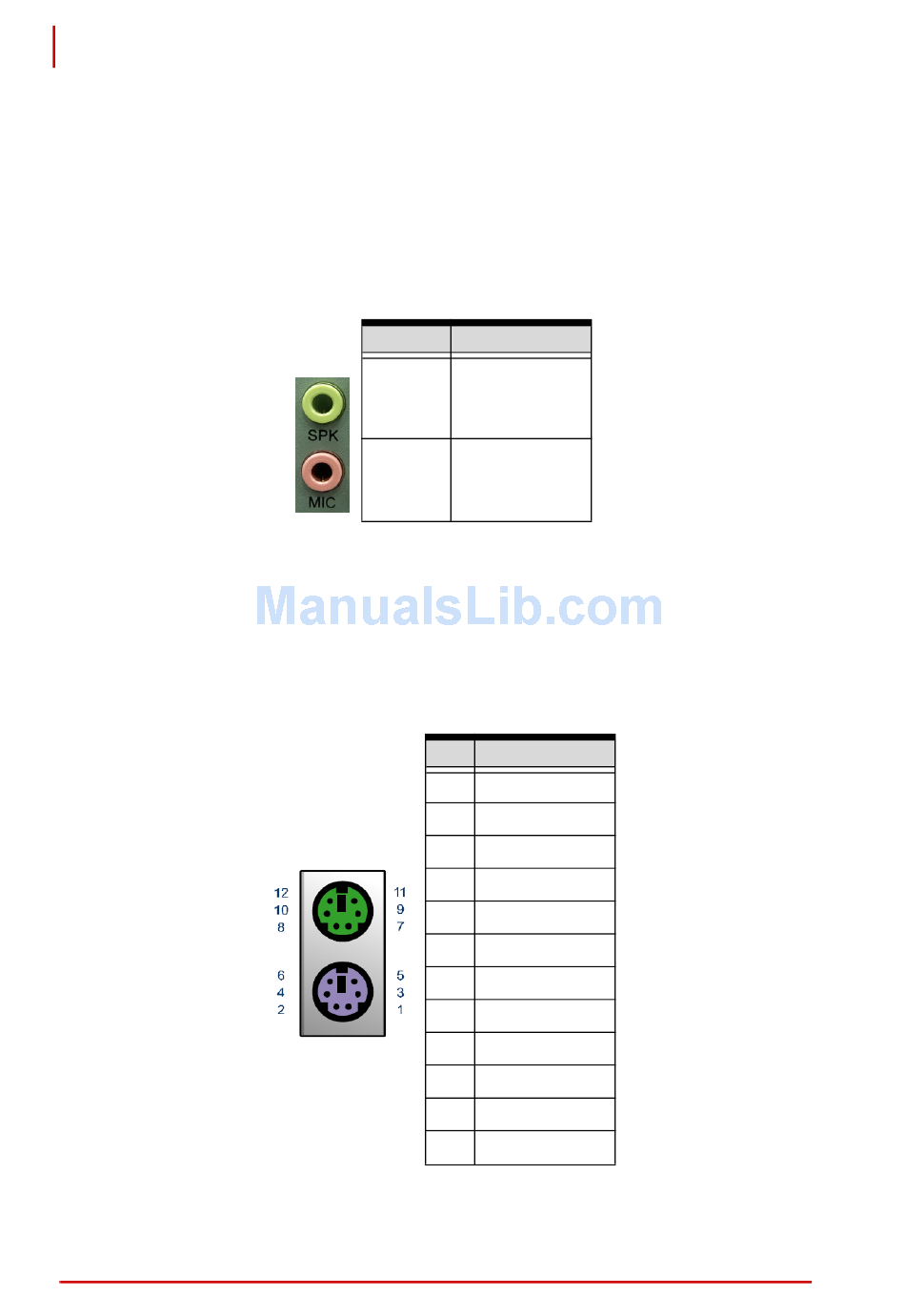

Audio Jacks

The MXC-4002D/4011D controller implements Intel High Definition
audio using Realtek ALC262 chip. The HD audio supports up to
24-bit, 192 Kbps high quality headphone/speaker output and
microphone input. Users can access the audio jacks on the front
panel of MXC-4000 series. The pink jack is for microphone input,
and the green jack is for speaker output.
2.4.7
Keyboard & Mouse PS2 Connectors
The MXC-4002D/4011D controller provides connectors for con-
necting PS2 keyboard and mouse. The green connector is for PS/
2 mouse and the purple one is for PS/2 key-board.
Table 2-9: Keyboard & Mouse PS2 Connectors
24
Color
Signal Name
GREEN LINE OUT
PINK
MIC IN

Table 2-8: Audio Jacks

PIN Signal Name
1
KBDATA
2
NC
3
DGND
4
KBVCC
5
KBCLK
6
NC
7
MSDATA
8
NC
9
DGND
10
KBVCC
11
MSCLK
12
NC
System Description
