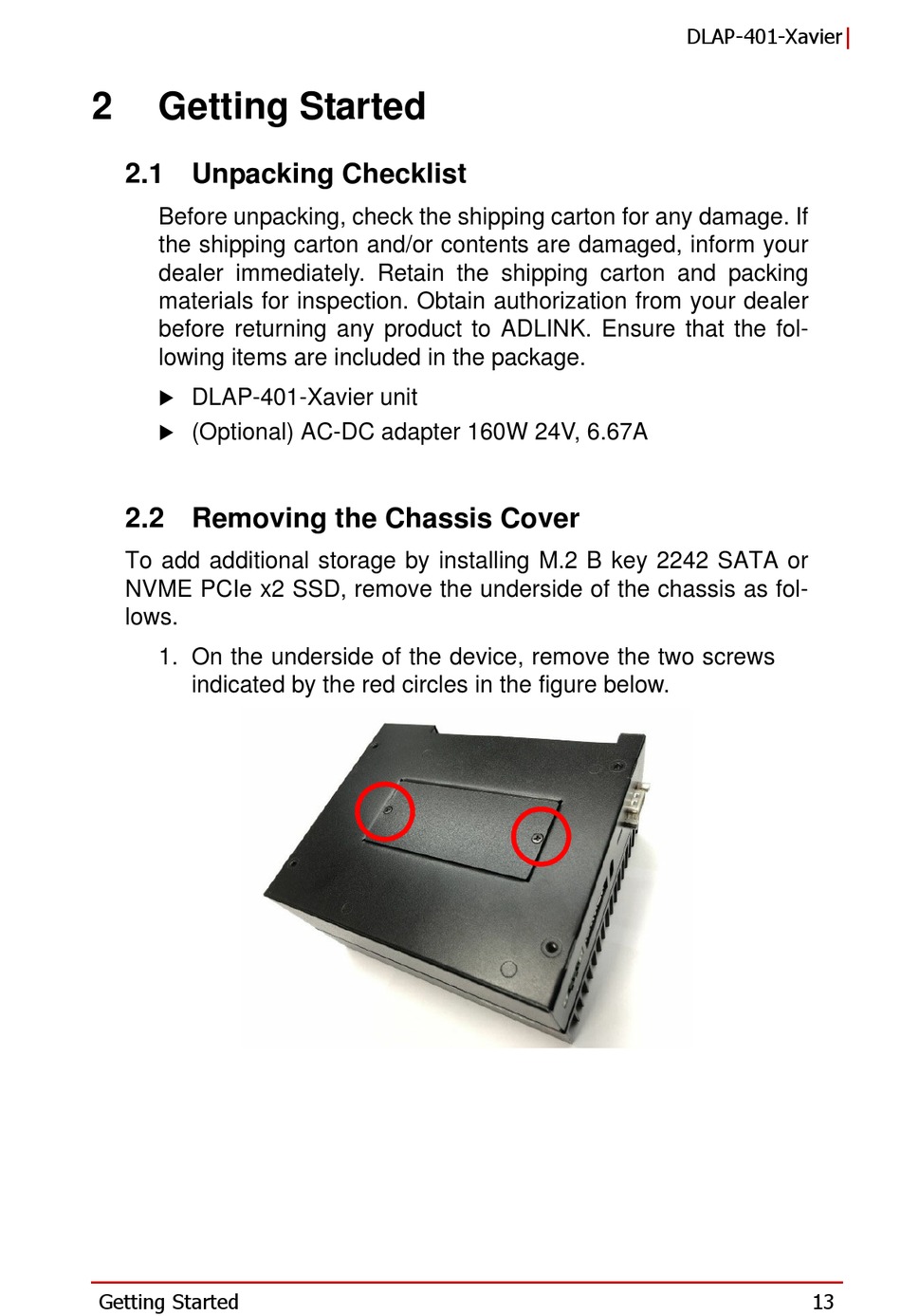

Getting Started

2.1 Unpacking Checklist

Before unpacking, check the shipping carton for any damage. If
the shipping carton and/or contents are damaged, inform your
dealer immediately. Retain the shipping carton and packing
materials for inspection. Obtain authorization from your dealer
before returning any product to ADLINK. Ensure that the fol-
lowing items are included in the package.
 DLAP-401-Xavier unit
 (Optional) AC-DC adapter 160W 24V, 6.67A

2.2 Removing the Chassis Cover

To add additional storage by installing M.2 B key 2242 SATA or
NVME PCIe x2 SSD, remove the underside of the chassis as fol-
lows.
1. On the underside of the device, remove the two screws
indicated by the red circles in the figure below.
