2.5.1

CompactFlash Socket

The internal CompactFlash socket is connected to chipset via IDE
interface, and can be used as an alternative storage device for
system installation. If want to boot up the MXC-4002D/4011D con-
troller via a CF card with OS installed. Due to the nature of IDE
interface, the CF card is not hot-pluggable and must be installed
before system power on. Please refer to section 3.3 for the illustra-
tion of installing a CF card.
2.5.2

Fan Connector

The MXC-4002D/4011D controller provides a insert the optional
fan module by gently slide it into the fan connector.
Note:
This USB-like connector is not a USB port and is only for
connecting the fan.
2.5.3

SATA Connector

The MXC-4002D/4011D controller provides a SATA Gen.1 port.
The SATA host controller supports two modes of operation, the
legacy mode using I/O space and AHCI mode using memory
space. This SATA connector is designed for installing a 2.5" hard
disk drive or solid state disk (SSD). The HDD or SSD must be
installed into SATA connector with a specific bracket mounted on
the chassis. Please refer to section 3.1 for the illustration of install-
ing a 2.5" hard disk drive or SSD.
System Description

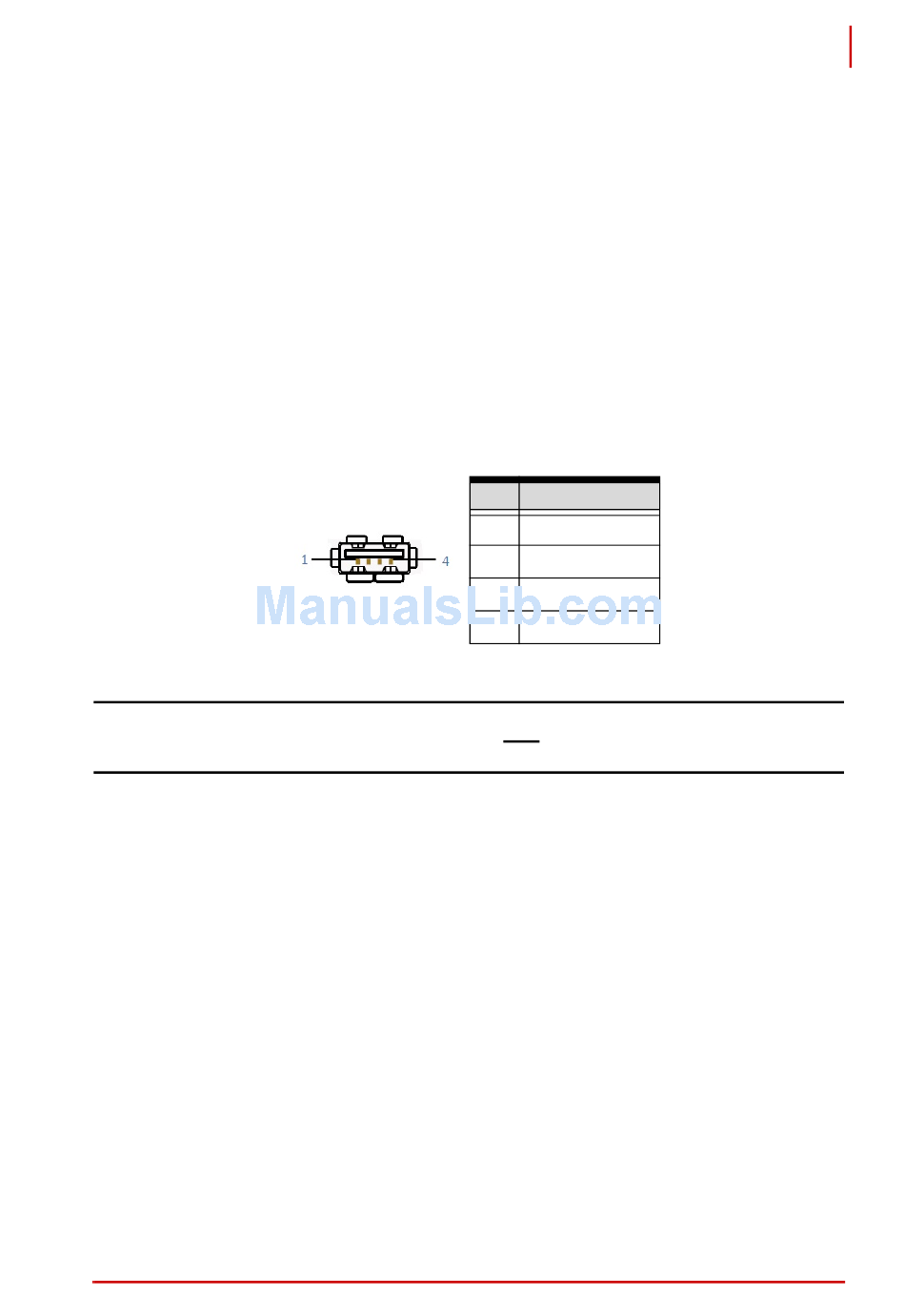

PIN Signal Name
1
2
3
4
Fan Connector
Table 2-12:
Matrix MXC-4000 Series
D12V
FDO
PWM
GND
User's Manual
27
