ADLINK Technology MVP-6100 Series User Manual

Processor-based fanless expandable computer
Hide thumbs Also See for MVP-6100 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
MVP-6100 Series
High Performance
9th Generation Intel® Xeon®/Core™ i7/i5/i3 &
8th Gen Celeron® Processor-Based

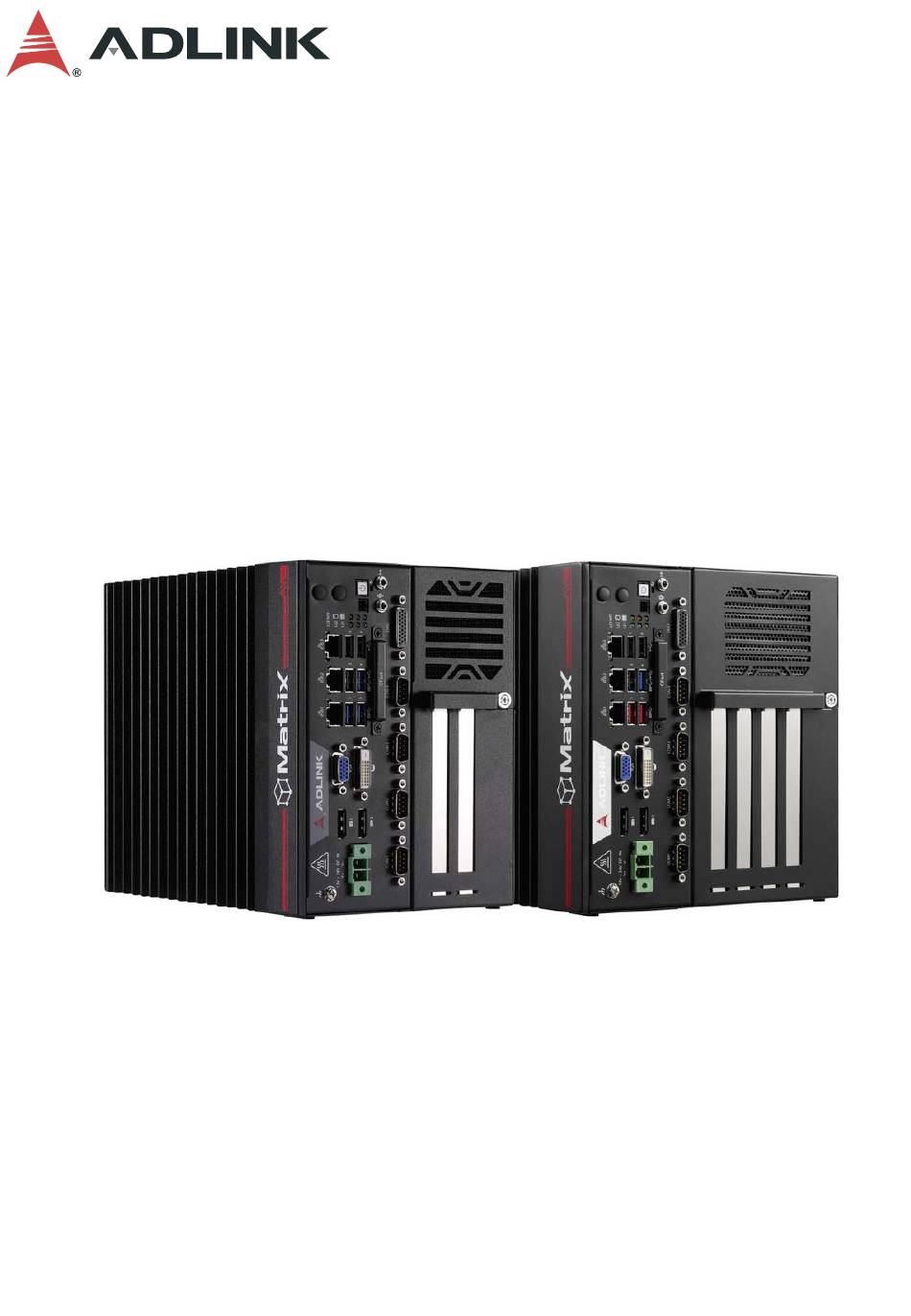

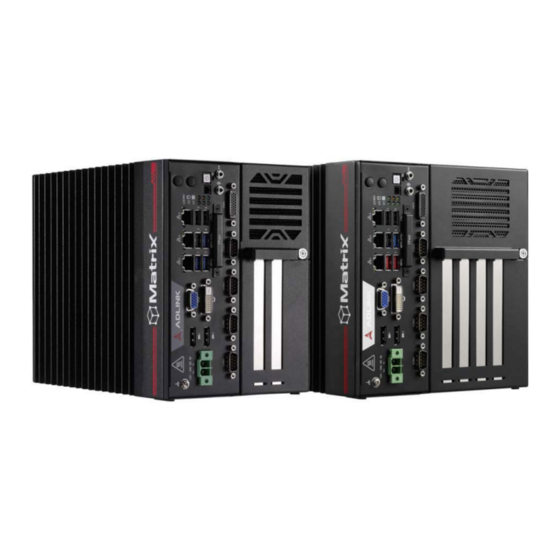

Fanless Expandable Computer
MVP-6120/MVP-6140
Manual Rev.:
Revision Date:
Part No:
Leading EDGE COMPUTING
User's Manual
1.0
Jan 21, 2020
50-1Z306-1000
