2.4.8

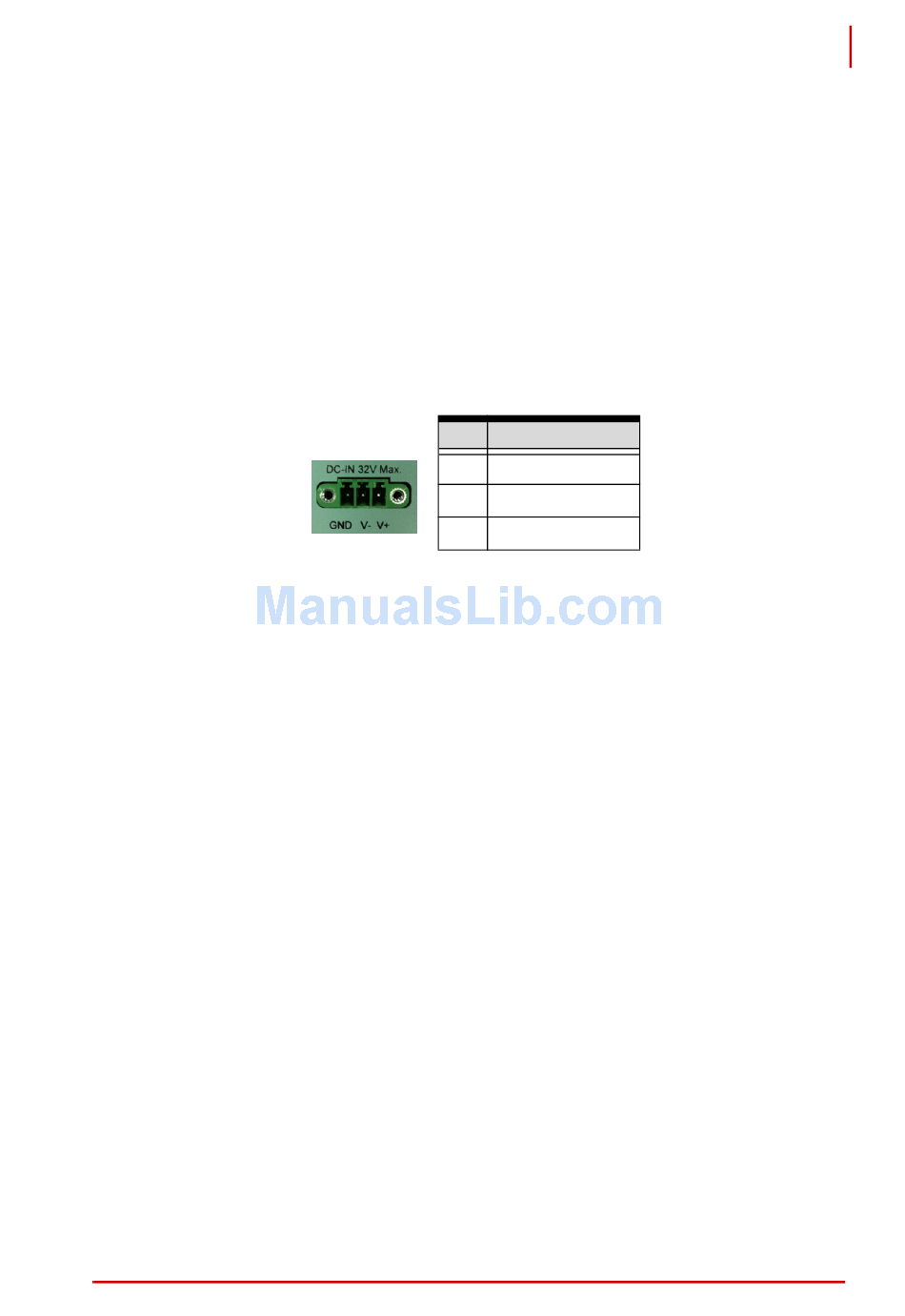

Power Input Connector

The DC power input connector of the MXC-4002D/4011D control-
ler consists of three pins: V+, V- and chassis ground from right to
left respectively. V+ and V- pins are for DC power input and chas-
sis ground pin allows connect the chassis to ground for better
EMC compatibility. The DC power input of MXC-4000 series
allows a voltage input from 9 VDC to 32 VDC. The MXC-4000
series also features the under/over voltage input protection.
The system will automatically shut off when input voltage is too
low (under 7.5 V) or too high (over 34 V).
System Description
PIN Signal Name
1
2
3

Table 2-10: Power Input Connector

Matrix MXC-4000 Series
GND(CHGND)
V-(DGND)
V+(DC_IN)
