Matrix MXC-4000 Series
User's Manual

3.5 Mounting MXC4000 Series Controller

The MXC-4000 series controller is shipped with wall-mount brack-
ets. You can use the wall-mount brackets and accessory screws to
mount the MXC-4000 controller on the wall.
The procedures of mounting MXC-4000 series are illustrated step
by step below:

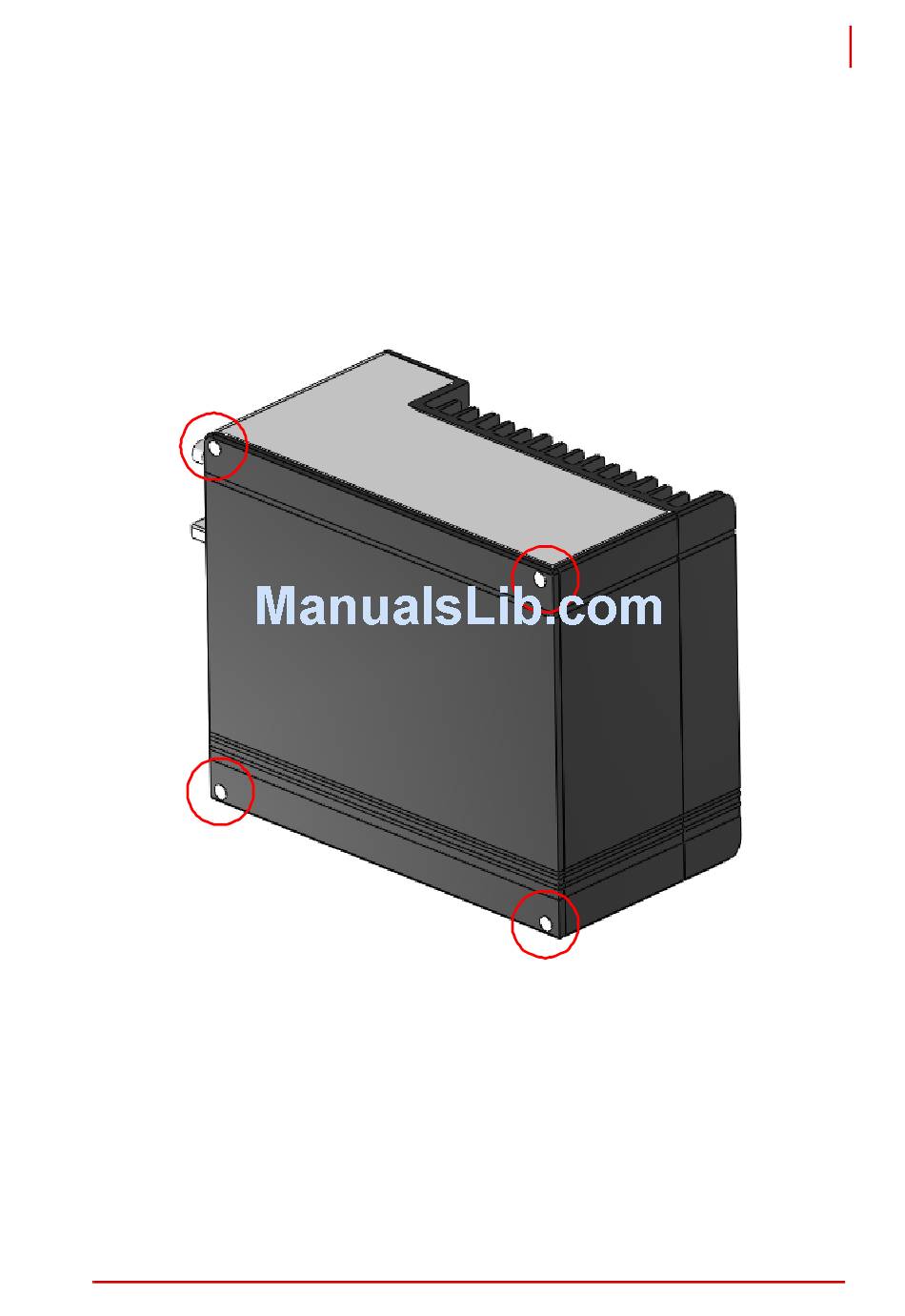

1. Remove four plastic pads in the four corners.
Getting Started
41
