Matrix MXC-4000 Series
User's Manual
2.4.4

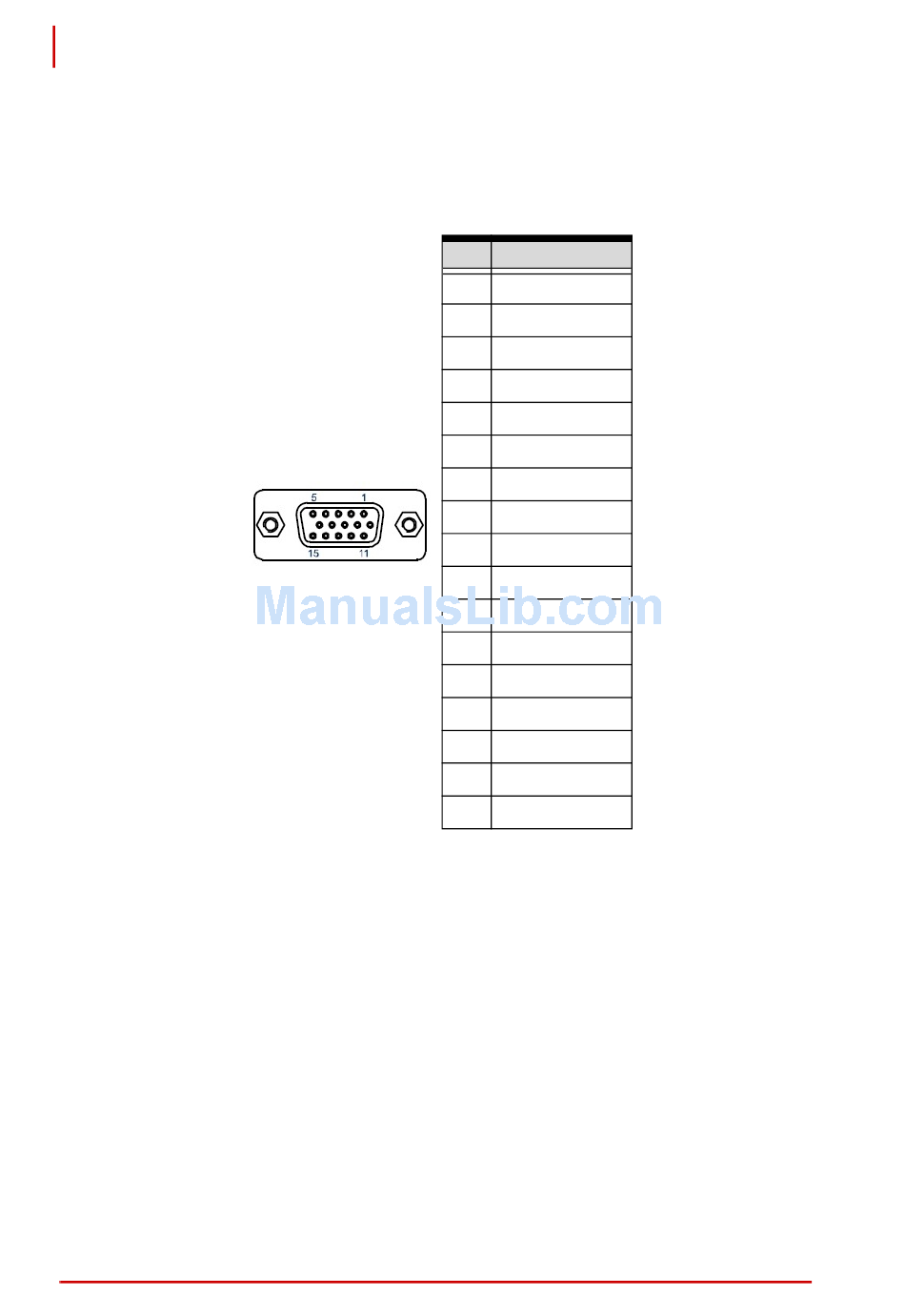

VGA Connector

The D-sub 15-pin VGA connector is used to connect your MXC-
4002D/4011D controller to a monitor. The MXC-4000 series sup-
ports only analog (VGA) monitors.
22
PIN Signal Name
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

Table 2-6: VGA Connector

RED
GREEN
BLUE
NC
DGND
VGA_EN
DGND
DGND
VGAPWR
DGND
NC
SD_DATA
HSYNC_CN
VSYNC_CN
SD_CLK
CHGND
CHGND
System Description
