3.2 Installing PCI/PCIe card

Please follow steps 1-2 in section 3.1 to remove the top cover
before installing a PCI/PCIe card.

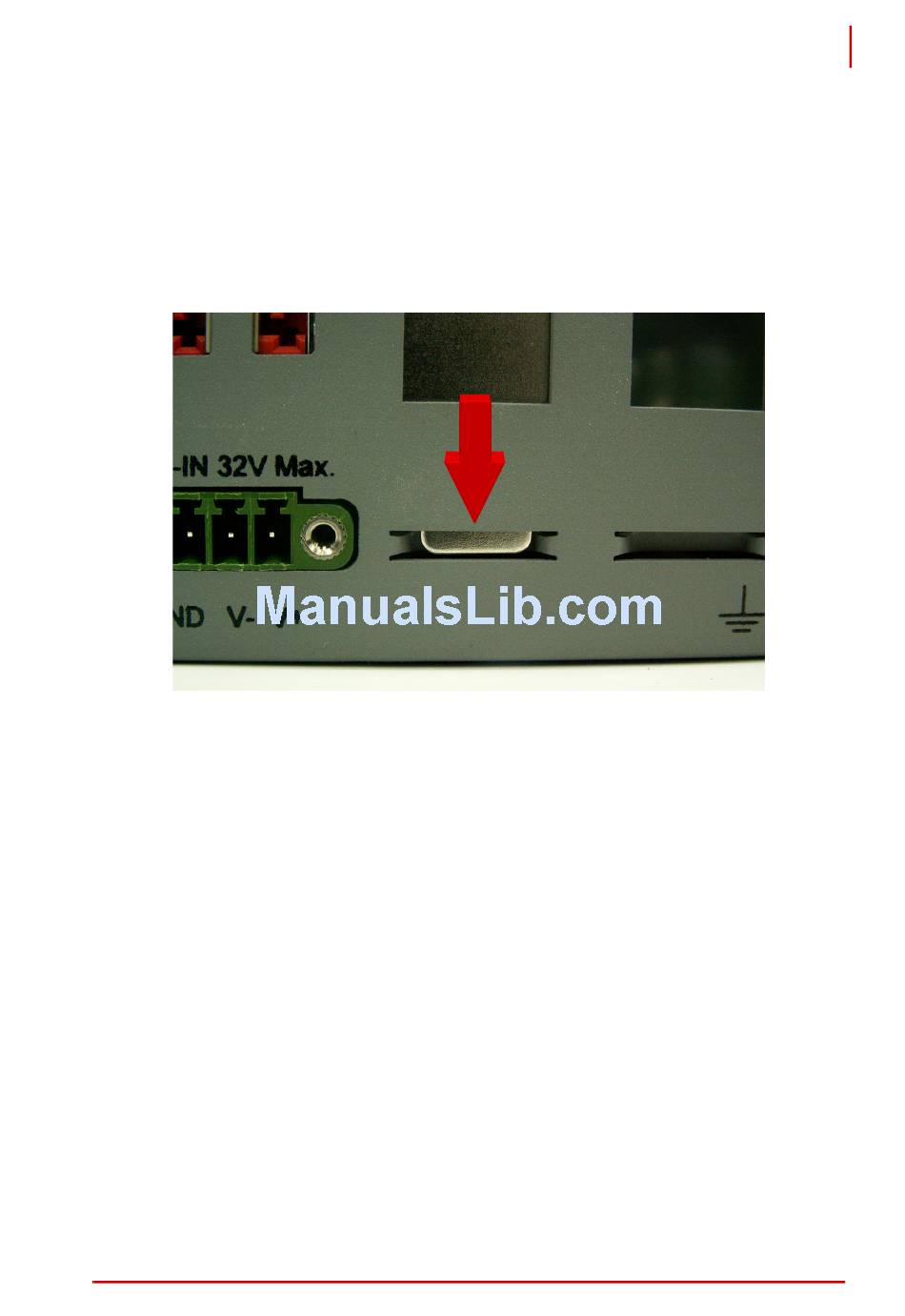

1. Insert your PCI or PCIe card to the PCI/PCIe slot. Note
that there is a joint point on the lower side. Please make
sure that the lower edge of your PCI/PCIe card is placed
into the joint point.
