Matrix MXC-4000 Series
User's Manual

3.3 Installing a CF Card

The MXC-4000 series controller provides an internal Compact-
Flash socket to accommodate a CF card as a replacement of hard
disk drive. Please follow steps 1-2 in section 3.1 to remove the top
cover before installing a CF card.

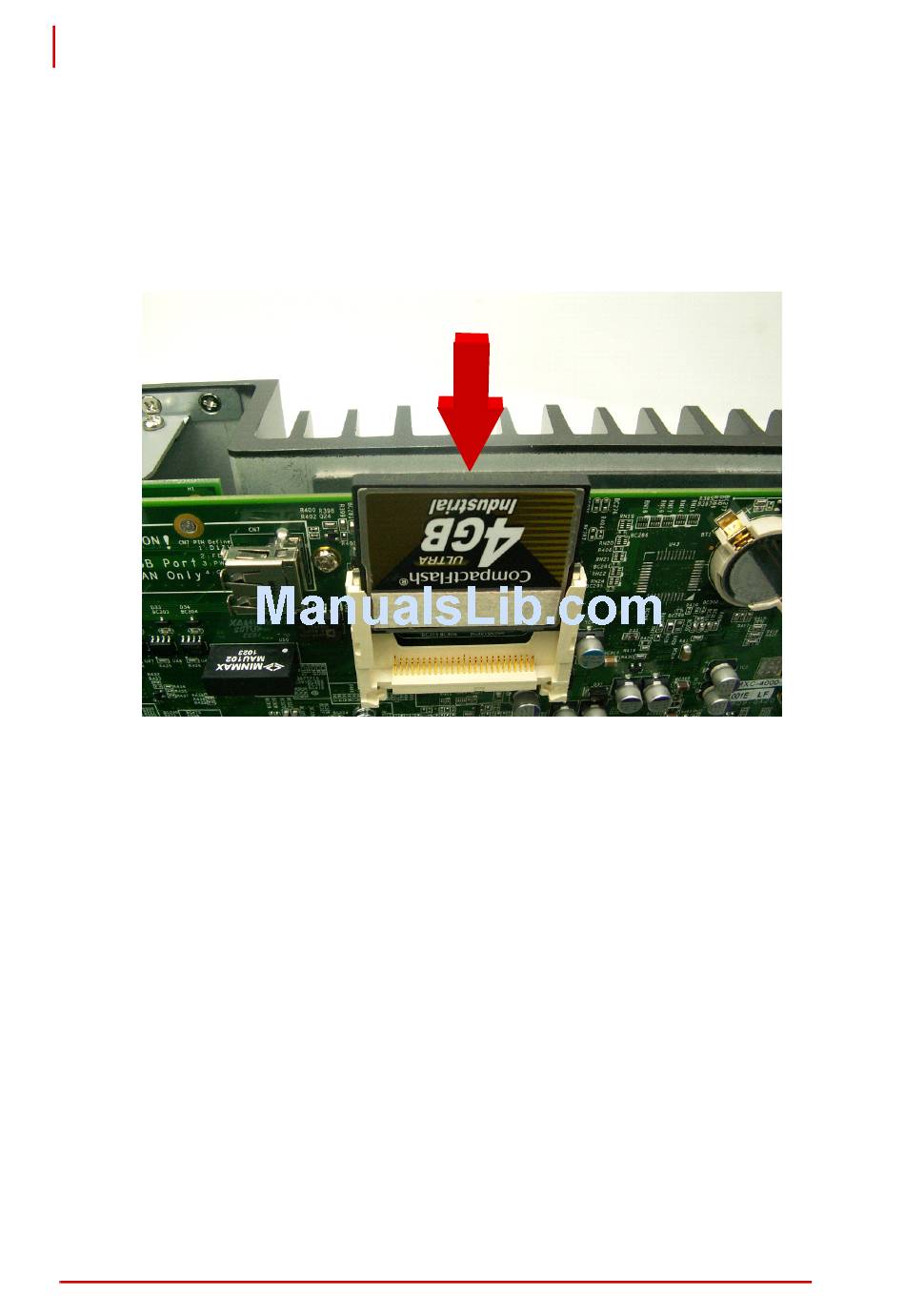

1. Align your CF card with the guide of CF socket.
38
Getting Started
