2.4.5

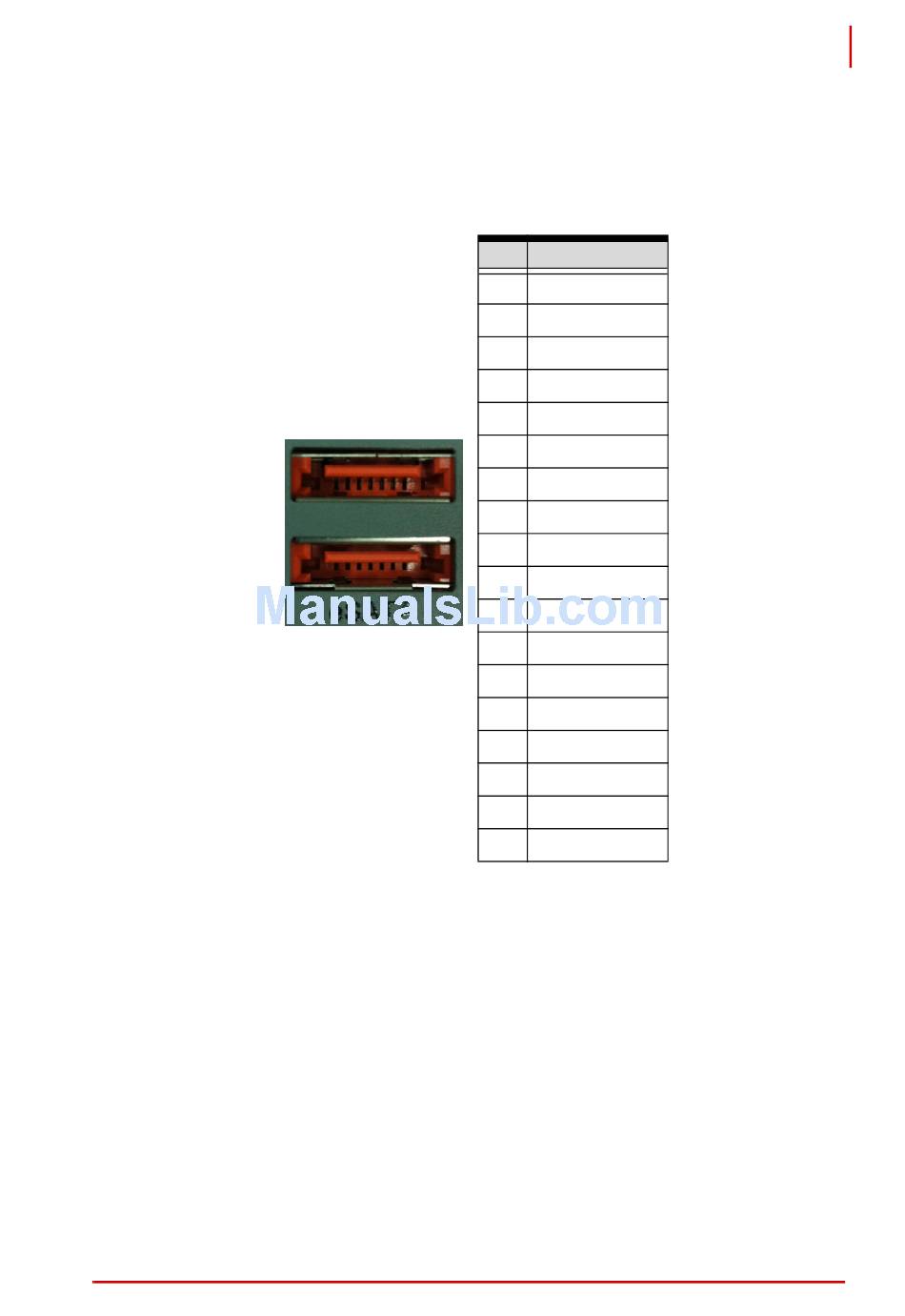

E-SATA Connectors

The MXC-4002D/4011D controller has two E-SATA ports connec-
tors on the front panel. The MXC-4000 series supports external
storage expansion.
System Description
PIN Signal Name
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

Table 2-7: E-SATA Connectors

Matrix MXC-4000 Series
DGND
SATA1_TXP
SATA1_TXN
DGND
SATA1_RXN
SATA1_RXP
DGND
DGND
SATA2_TXP
SATA2_TXN
DGND
SATA2_RXN
SATA2_RXP
DGND
CHGND
CHGND
CHGND
CHGND
User's Manual
23
