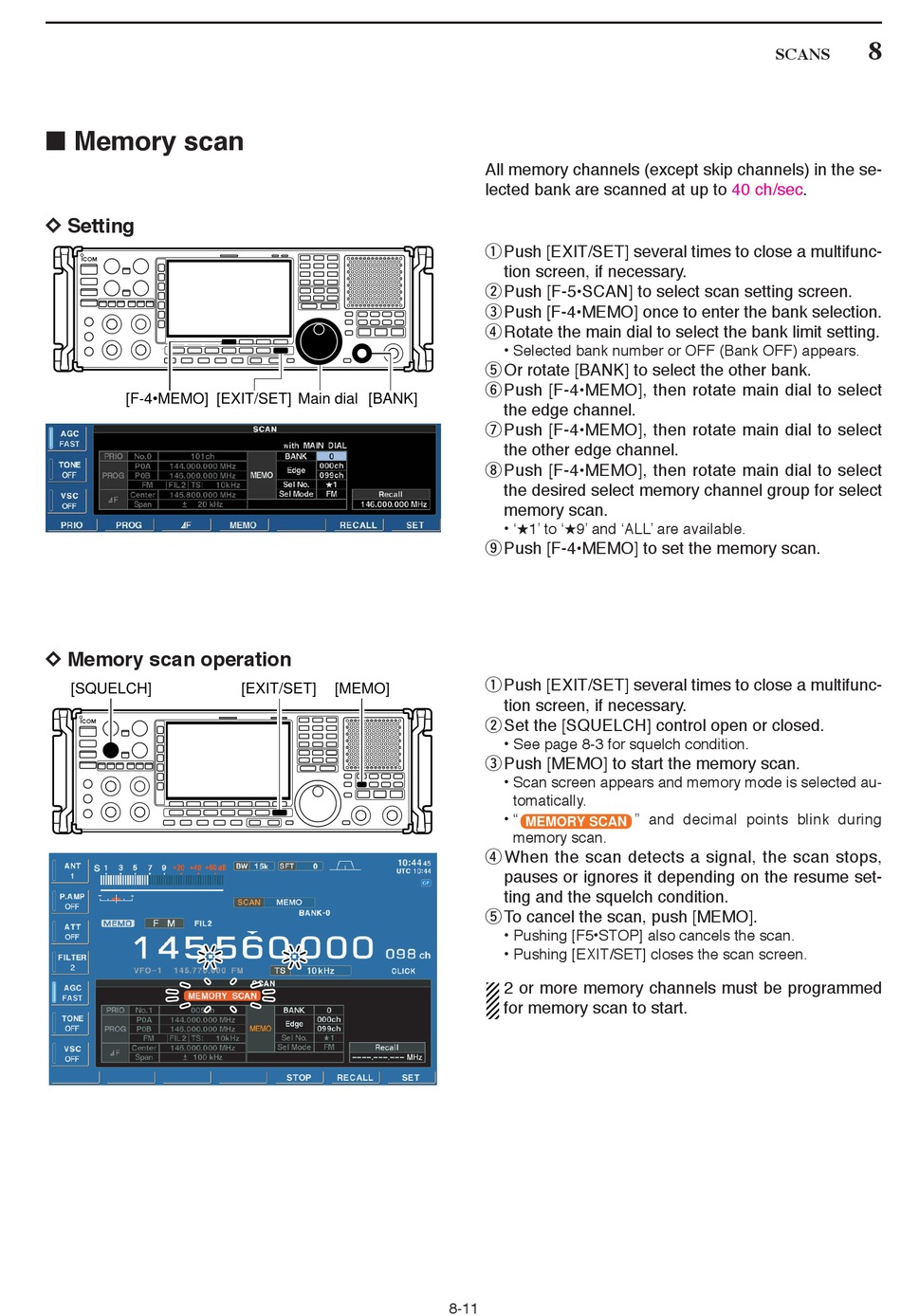

■ Memory scan

D D Setting
[F-4•MEMO] [EXIT/SET] Main dial [BANK]
D D Memory scan operation
[SQUELCH] [EXIT/SET] [MEMO]
All memory channels (except skip channels) in the se-
lected bank are scanned at up to
q Push [EXIT/SET] several times to close a multifunc-
tion screen, if necessary.
w Push [F-5•SCAN] to select scan setting screen.
e Push [F-4•MEMO] once to enter the bank selection.
r Rotate the main dial to select the bank limit setting.
• Selected bank number or OFF (Bank OFF) appears.
t Or rotate [BANK] to select the other bank.
y Push [F-4•MEMO], then rotate main dial to select
the edge channel.
u Push [F-4•MEMO], then rotate main dial to select
the other edge channel.
i Push [F-4•MEMO], then rotate main dial to select
the desired select memory channel group for select

memory scan.

• '★1' to '★9' and 'ALL' are available.
o Push [F-4•MEMO] to set the memory scan.
q Push [EXIT/SET] several times to close a multifunc-
tion screen, if necessary.
w Set the [SQUELCH] control open or closed.
• See page 8-3 for squelch condition.
e Push [MEMO] to start the memory scan.
• Scan screen appears and memory mode is selected au-
tomatically.
• "
MEMORY SCAN
memory scan.
r When the scan detects a signal, the scan stops,
pauses or ignores it depending on the resume set-
ting and the squelch condition.
t To cancel the scan, push [MEMO].
• Pushing [F5•STOP] also cancels the scan.
• Pushing [EXIT/SET] closes the scan screen.
2 or more memory channels must be programmed
for memory scan to start.
8-11
SCANS
40 ch/sec.
" and decimal points blink during
8
