8
SCANS

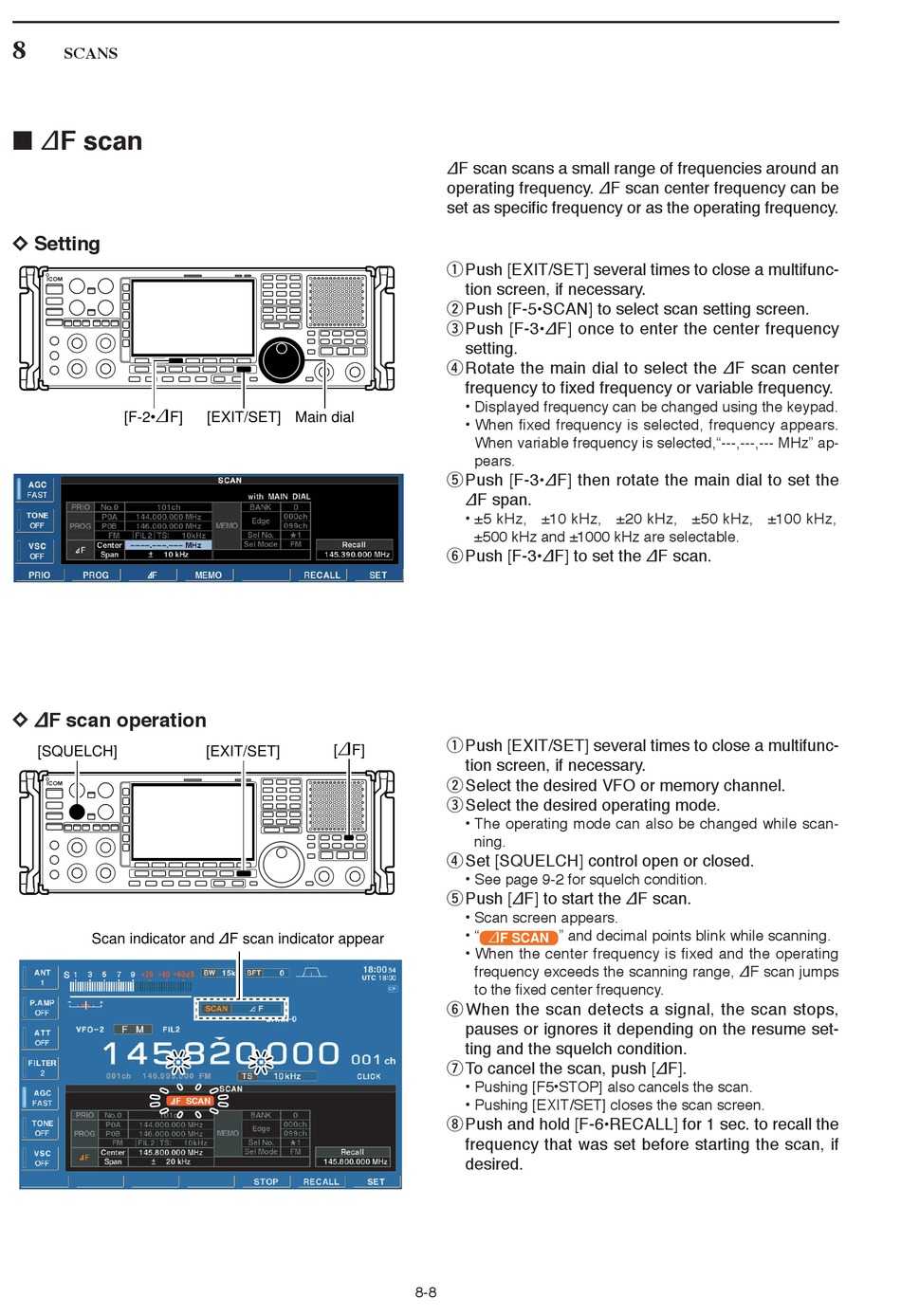

■ ∂F scan
D D Setting
[F-2• F]
:
D D ∂ ∂ F scan operation
[SQUELCH]
Scan indicator and ∂F scan indicator appear
[EXIT/SET] Main dial
[ F]
[EXIT/SET] :
∂F scan scans a small range of frequencies around an
operating frequency. ∂F scan center frequency can be
set as specific frequency or as the operating frequency.
q Push [EXIT/SET] several times to close a multifunc-
tion screen, if necessary.
w Push [F-5•SCAN] to select scan setting screen.
e Push [F-3•∂F] once to enter the center frequency
setting.
r Rotate the main dial to select the ∂F scan center
frequency to fixed frequency or variable frequency.
• Displayed frequency can be changed using the keypad.
• When fixed frequency is selected, frequency appears.
When variable frequency is selected,"---,---,--- MHz" ap-
pears.
t Push [F-3•∂F] then rotate the main dial to set the
∂F span.
• ±5 kHz, ±10 kHz, ±20 kHz, ±50 kHz, ±100 kHz,
±500 kHz and ±1000 kHz are selectable.
y Push [F-3•∂F] to set the ∂F scan.
q Push [EXIT/SET] several times to close a multifunc-
tion screen, if necessary.
w Select the desired VFO or memory channel.
e Select the desired operating mode.
• The operating mode can also be changed while scan-
ning.
r Set [SQUELCH] control open or closed.
• See page 9-2 for squelch condition.
t Push [∂F] to start the ∂F scan.
• Scan screen appears.
• " " and decimal points blink while scanning.

F SCAN

:
• When the center frequency is fixed and the operating
frequency exceeds the scanning range, ∂F scan jumps
to the fixed center frequency.
y When the scan detects a signal, the scan stops,
pauses or ignores it depending on the resume set-
ting and the squelch condition.
u To cancel the scan, push [∂F].
• Pushing [F5•STOP] also cancels the scan.
• Pushing [EXIT/SET] closes the scan screen.
i Push and hold [F-6•RECALL] for 1 sec. to recall the
frequency that was set before starting the scan, if
desired.
8-8
