Icom IC-R9500 Instruction Manual page 16

1
PANEL DESCRIPTION

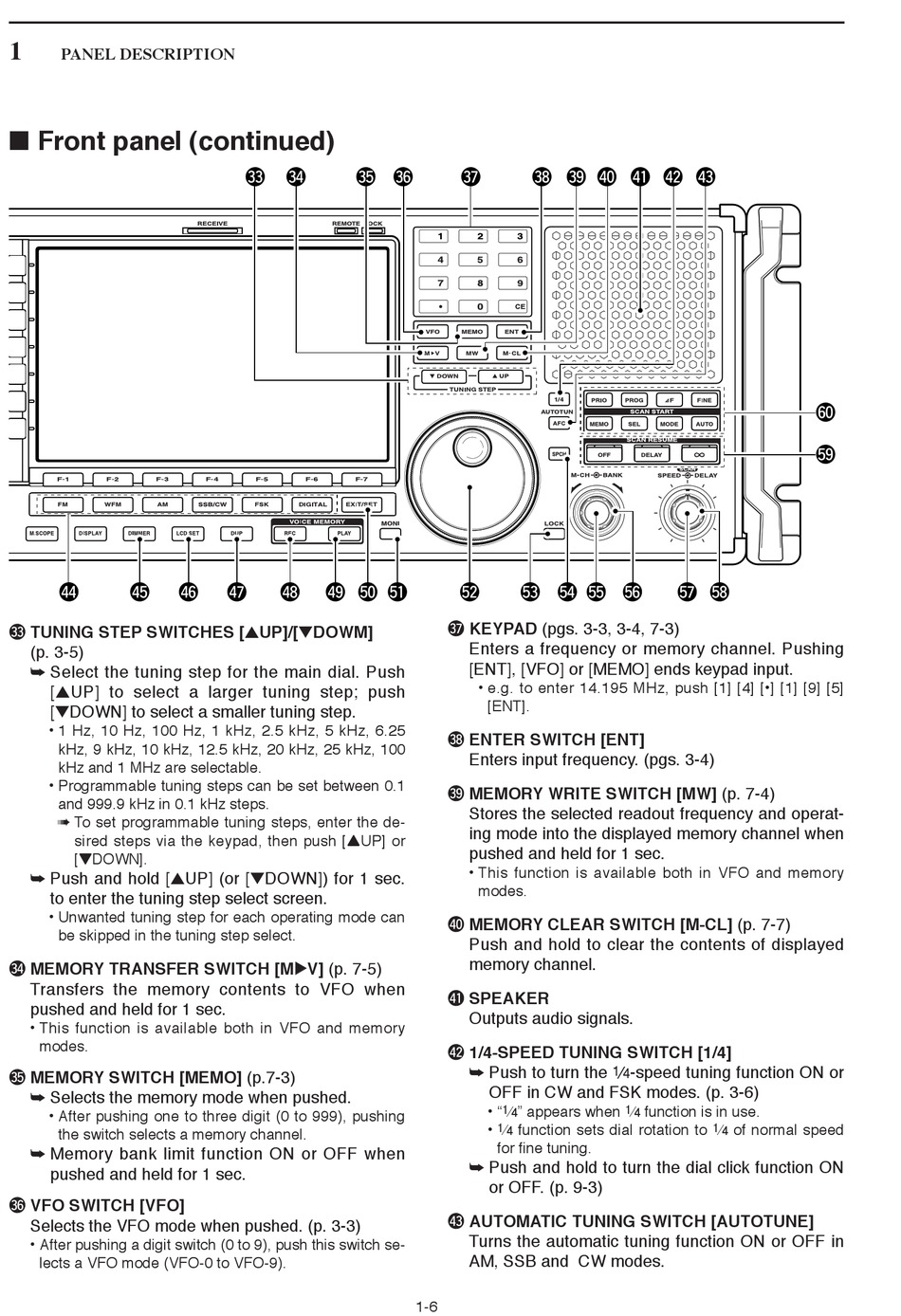

■ Front panel (continued)
$4 $5
#3 TUNING STEP SWITCHES [▲UP]/[▼DOWM]
(p. 3-5)
➥ Select the tuning step for the main dial. Push
[▲UP] to select a larger tuning step; push
[▼DOWN] to select a smaller tuning step.
• 1 Hz, 10 Hz, 100 Hz, 1 kHz, 2.5 kHz, 5 kHz, 6.25
kHz, 9 kHz, 10 kHz, 12.5 kHz, 20 kHz, 25 kHz, 100
kHz and 1 MHz are selectable.
• Programmable tuning steps can be set between 0.1
and 999.9 kHz in 0.1 kHz steps.
➠ To set programmable tuning steps, enter the de-
sired steps via the keypad, then push [YUP] or
[ZDOWN].
➥ Push and hold [▲UP] (or [▼DOWN]) for 1 sec.
to enter the tuning step select screen.
• Unwanted tuning step for each operating mode can
be skipped in the tuning step select.
#4 MEMORY TRANSFER SWITCH [M≈ ≈ V] (p. 7-5)
Transfers the memory contents to VFO when
pushed and held for 1 sec.
• This function is available both in VFO and memory
modes.
#5 MEMORY SWITCH [MEMO] (p.7-3)
➥ Selects the memory mode when pushed.
• After pushing one to three digit (0 to 999), pushing
the switch selects a memory channel.
➥ Memory bank limit function ON or OFF when
pushed and held for 1 sec.
#6 VFO SWITCH [VFO]
Selects the VFO mode when pushed. (p. 3-3)
• After pushing a digit switch (0 to 9), push this switch se-
lects a VFO mode (VFO-0 to VFO-9).
#3 #4
$6 $7 $8 $9
#5 #6 #7
%0 %1 %2 %3
#7 KEYPAD (pgs. 3-3, 3-4, 7-3)
Enters a frequency or memory channel. Pushing
[ENT], [VFO] or [MEMO] ends keypad input.
• e.g. to enter 14.195 MHz, push [1] [4] [•] [1] [9] [5]
[ENT].
#8 ENTER SWITCH [ENT]
Enters input frequency. (pgs. 3-4)
#9 MEMORY WRITE SWITCH [MW] (p. 7-4)
Stores the selected readout frequency and operat-
ing mode into the displayed memory channel when
pushed and held for 1 sec.
• This function is available both in VFO and memory
modes.
$0 MEMORY CLEAR SWITCH [M-CL] (p. 7-7)
Push and hold to clear the contents of displayed
memory channel.
$1 SPEAKER
Outputs audio signals.
$2 1/4-SPEED TUNING SWITCH [1/4]
➥ Push to turn the
OFF in CW and FSK modes. (p. 3-6)
• " 1 ⁄ " appears when
4
• ⁄ function sets dial rotation to
1
4
for fine tuning.
➥ Push and hold to turn the dial click function ON
or OFF. (p. 9-3)
$3 AUTOMATIC TUNING SWITCH [AUTOTUNE]
Turns the automatic tuning function ON or OFF in
AM, SSB and CW modes.
1-6
#8 #9 $0 $1 $2 $3
%4 %5 %6 %7 %8
1 ⁄ -speed tuning function ON or
4
1 ⁄ function is in use.
4
^0
%9
⁄ of normal speed
1
4
