INSTALLATION AND CONNECTIONS

■ Tape recorder connections

The [REC REMOTE] jack is grounded when a signal
is received and squelch opens. If a tape recorder has
a control terminal, this jack can be used for recording
control. (2 A/DC max.)

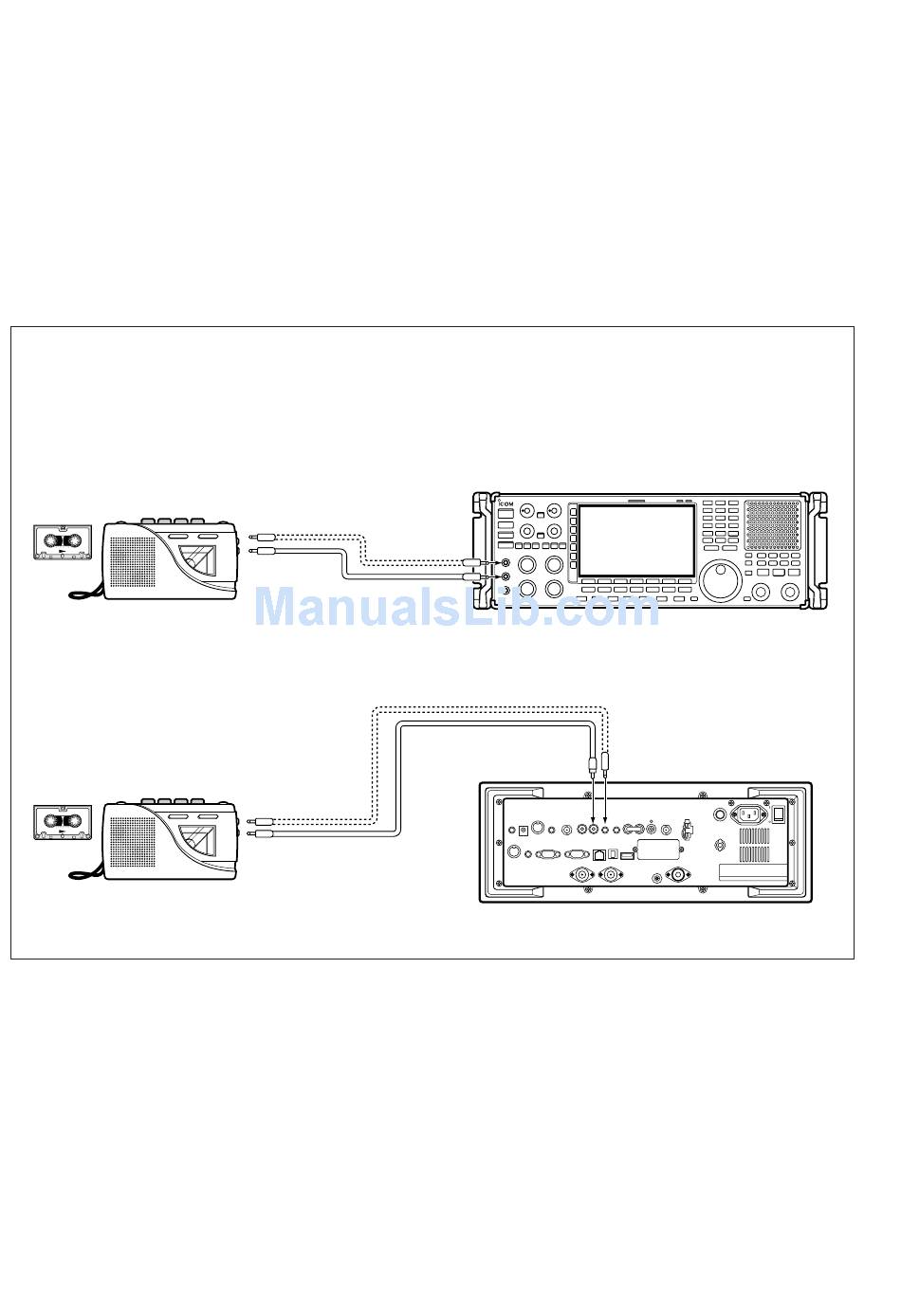

D D Recording from the front panel or rear panel
The [REC REMOTE] jack is grounded when a signal
is received and squelch opens. If a tape recorder
has a control terminal, this jack can be used for
recording control. (2 A/DC max.)
• Recording from the front panel
• Recording from the rear panel
When you wish to control a tape
recorder via the REMOTE jack.
[REMOTE] jack
[REC
REMOTE]
[AUX IN] or
[LINE IN] jack
[REC OUT]
350 mVrms
4.7 kΩ
[REMOTE] jack
[AUX IN] or [LINE IN] jack
The [REC OUT] or [LINE OUT] jack has 350 mV
rms/4.7 kΩ output for connection to other audio equip-
ment.
The [REC OUT] or [LINE OUT] jack has 350 mV
rms/4.7 kΩ output for connection to other audio
equipment.
[REC REMOTE]
[LINE OUT]
350 mVrms
4.7 kΩ
2-8
FRONT
When you wish to control a tape
recorder via the REMOTE jack.
REAR
